Water resistant versions of MAC800-1200 Integrated Servo Motors



Like the smaller MAC50-141 (46 to 134W) motors, JVL’s large MAC800 motor (560W) and MAC1200 (1000W) is now available in a model that offers IP66 protection. This makes the MAC800 well-suited for applications in more demanding environments such as are common in the food processing industries. The IP65 protection of the motor

has been achieved by replacing the ventilator built into the cooling fins with large fins. In addition, a water-tight seal of the axle bearing has been achieved using

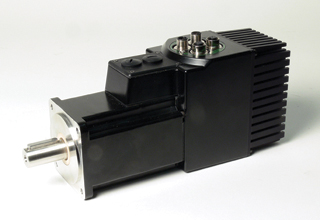

an IP67 Rulon® Teflon bush. This has very low friction and requires no lubrication. The flange with KERONITE surface treatment (only available for MAC800) and shaft are made of stainless steel. Note that the expansion module used must also fulfil IP66 requirements. The motor in the picture is furthermore equipped with a brake.



Water Resistant Versions of MAC050 - 141



Teflon sealing for all IP65+ motors
