MAC1500-3000 - Integrated Servo Motors


MAC1500-3000 - The complete solution for larger power ratings.
All with built-in mains power supply.
Choose between model with or without brake.
Choose Expansion module from the extensive selection for any application.

Motor size is:
  • MAC1500-D2 - 1.5kW
  • MAC1500-D5 (w. brake) - 1.5kW
  • MAC3000-D2 - 3.0kW
  • MAC3000-D5 (w. brake) - 3.0kW
Expansion module you can choose between:
  • Basic Modules
  • Programmable Modules
  • Field Bus Modules
  • High Speed Multi-Axis Modules
  • Wireless Modules
Most of them available with either cable glands, DSUB connectors and M12 connectors. See EXPANSION MODULES SELECTION CHART.

See the ACCESSORIES, GEARS, and POWER SUPPLIES for further possibilities.

Read more about MAC1500-3000. (Click here)


The unique integrated MAC servomotor from JVL
The MAC integrated servo motor from JVL has gained a high international reputation
The MAC integrated ac servo motor is based on 20 years of experience
The MAC integrated ultra compact smartmotor unit is unique
JVL is the leader & The Home of the Integrated Motor


New features:
  • Absolute multiturn encoder without battery
  • Real-time industrial Ethernet: Profinet, Ethernet/IP, MODBUS TCP, EtherCAT, Powerlink and SercosIII
  • 2 RS422 channels for encoder in/output and SSI encoder etc.
  • 6IO for capture of position, interrupt, counters, enable, timer and PLC functions



Part number
Speed
[RPM]
Rated Torque [Nm]
 Peak Torque [Nm]

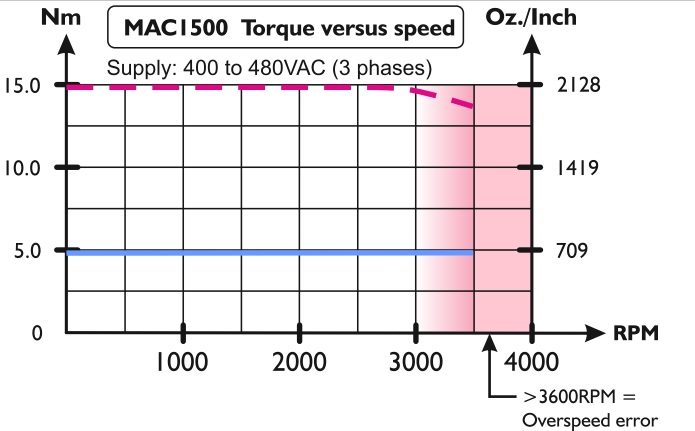

 Torque vs Speed curve
MAC1500-D2-xAAL*
 Max. 3600
 5.0
 14.3
MAC1500-D5-xAAL*
 Max. 3600
 5.0
 14.3
MAC1500-D3-xAAL*
 Max. 3600
 5.0
 14.3
MAC1500-D6-xAAL*
 Max. 3600 5.0 14.3

MAC3000-D2-xAAL*
 Max. 3600 9.55
 28.7
MAC3000-D5-xAAL*
 Max. 3600
 9.55
28.7
MAC3000-D3-xAAL*
 Max. 3600
 9.55
28.7
MAC3000-D6-xAAL*
 Max. 3600 9.55
28.7
*Available with either 2048 PPR encoder (C) or Absolute multiturn encoder (F).

MAC1500 - 4500 Connection guide
