QuickStep special connections

Below is shown examples of motors made with special connections. They can be delivered for orders of 10 pcs. or more. Please ask us if other motor lengths and connectors are required



QuickStep motor MIS231A1C1N075.



Motor with 2 cable glands PG12 out of the side for low cost applications where a short total length is required.

Can also be delivered with 5m cables as MIS231A1C2N075. Option for IP65.





QuickStep motor MIS231A1W0N075.







QuickStep motor MIS231A1R2N075



Motor with 2 pcs M12 connectors out of the side where a short length is required. Option for IP65.

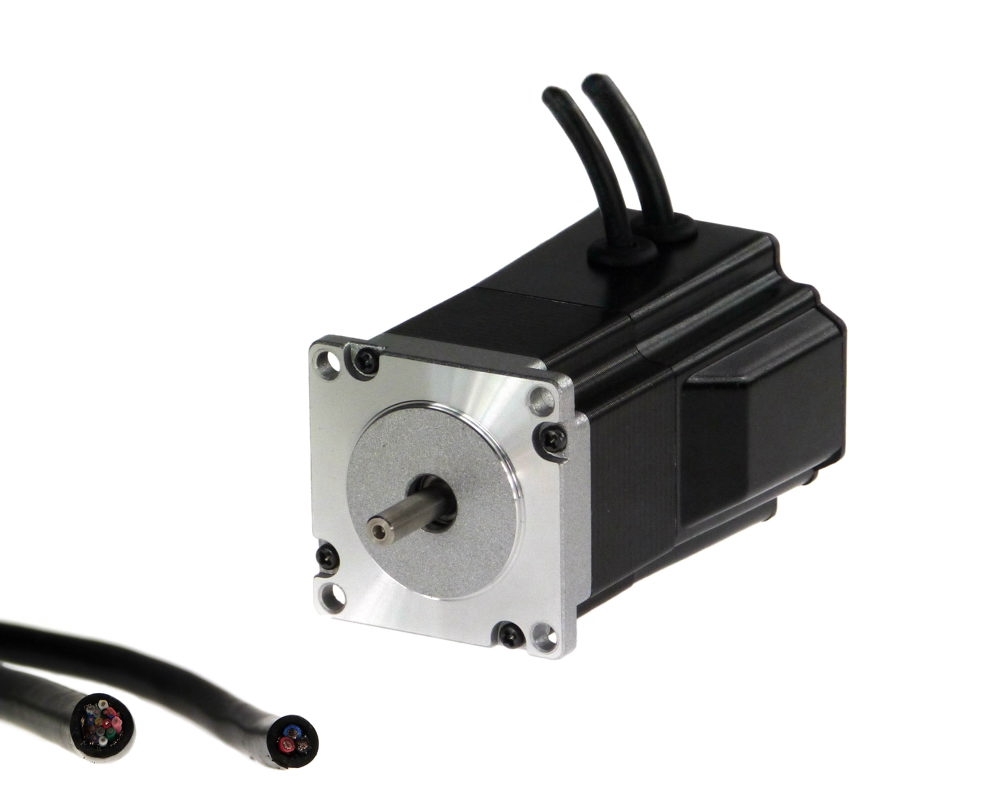

QuickStep motor MIS231A8Z3H275



Motor with 2 rubber sealings out of side. Can be delivered without cable or 1-20m cable type WG09xx (IO) and WG10xx (Power).

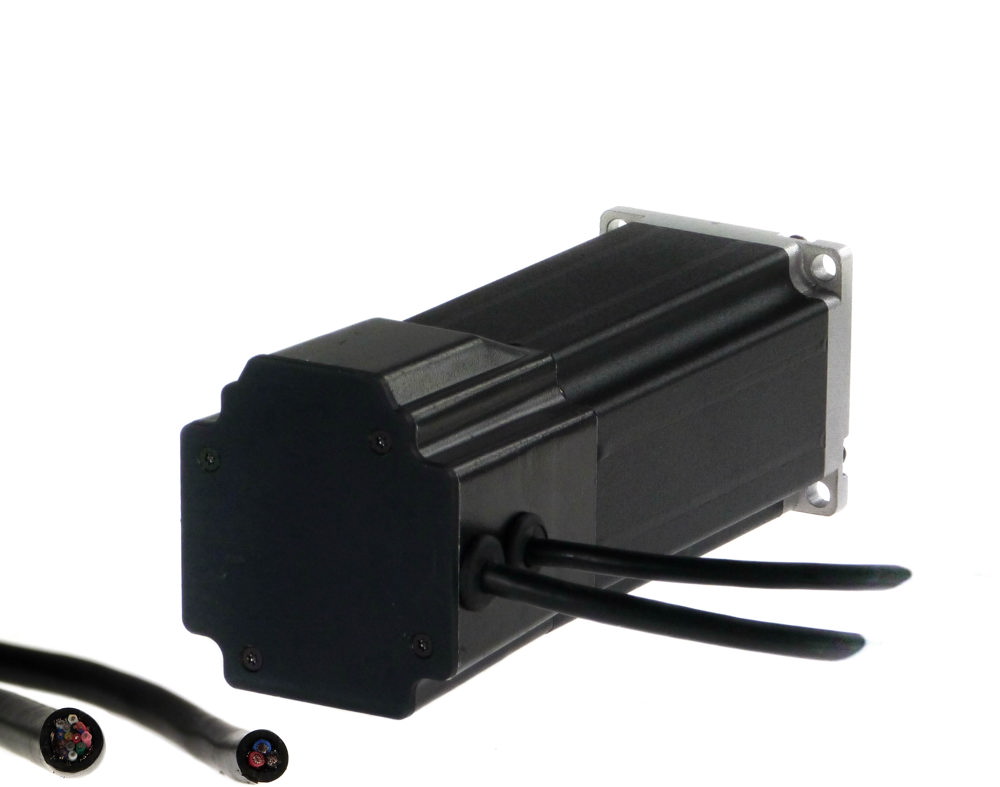

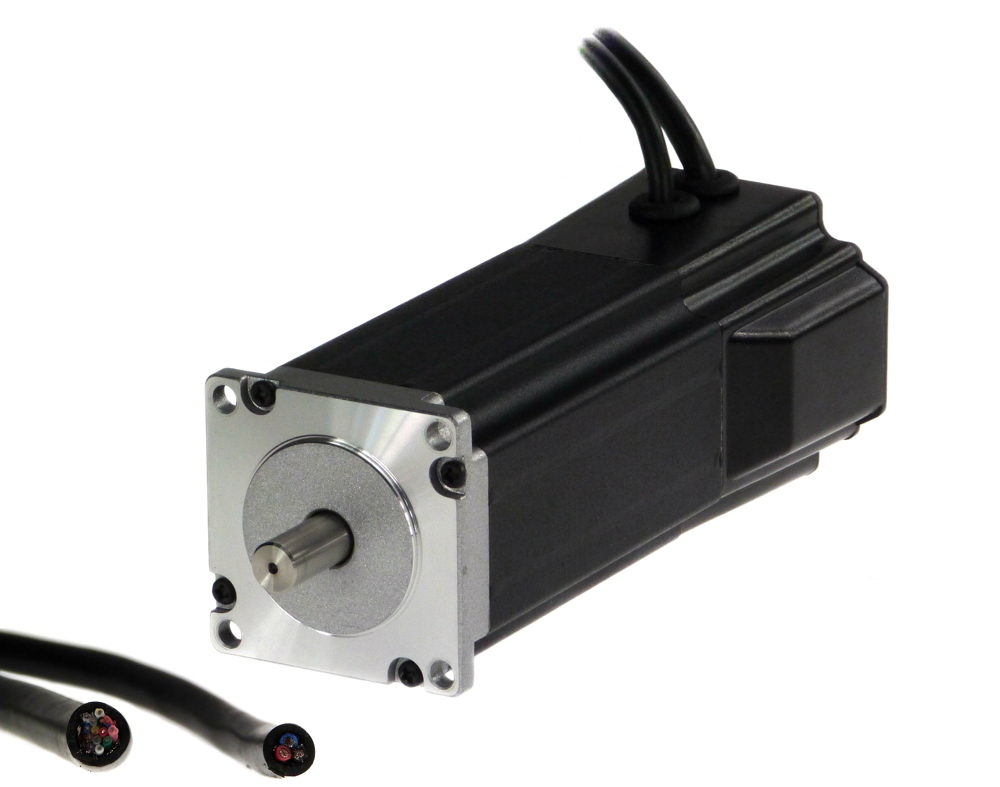

QuickStep motor MIS232A8Z3H275



Motor with 2 rubber sealings out of side. Can be delivered without cable or 1-20m cable type WG09xx (IO) and WG10xx (Power).
