MAC and QuickStep - Integrated Motors with Profile

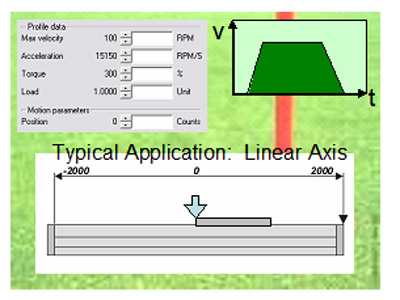

The positioning mode is used when the motor should be commanded to move a fixed distance.



This can be done absolute or relative. Absolute that means that the commanded position is the target position. By a relative position the commanded position is added or subtracted from the present position.



Both positionig movements are performed by genearing a trapezoidal ramp. The MAC800 also offers teh possibility to use an s-curve profile.
