Power Supplies
|
In the table below you can see the main data of all the power supplies available from JVL. For guidance to find the right power supply for the integrated motors |
and the integerated stepper motors MISxx, go to Select Your Power Supply |
| No. of motors run at[cont. power - peak power] |
||||||||||||
|
Power Supply
Model |
Power
[W] |
Peak
Power
[W] |
Voltage
[V] |
MAC
140 |
MAC
402 |
MIS
23x
(SMC75) |
MIS
17/23/34
(SMC66/85) |
MIS
43x |
SMD41
SMC35 |
SMD42 |
SMC
2x |
|
|
Power [W] |
150-420 |
400-1200 |
40-90 |
100-350 |
100-500 |
100-350 |
100-350 |
20-200 |

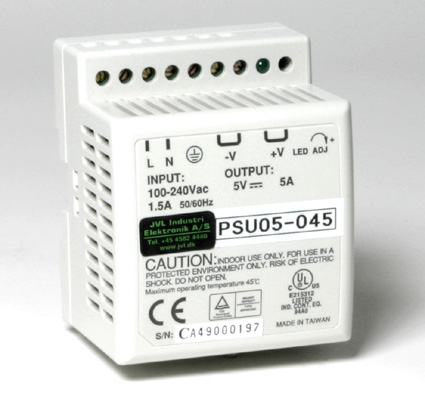

||||
| Switch Mode Power Supplies |
||||||||||||
| 45 | 45 | 5 | - | - | - |
- | - | - | - | - |
 |
|

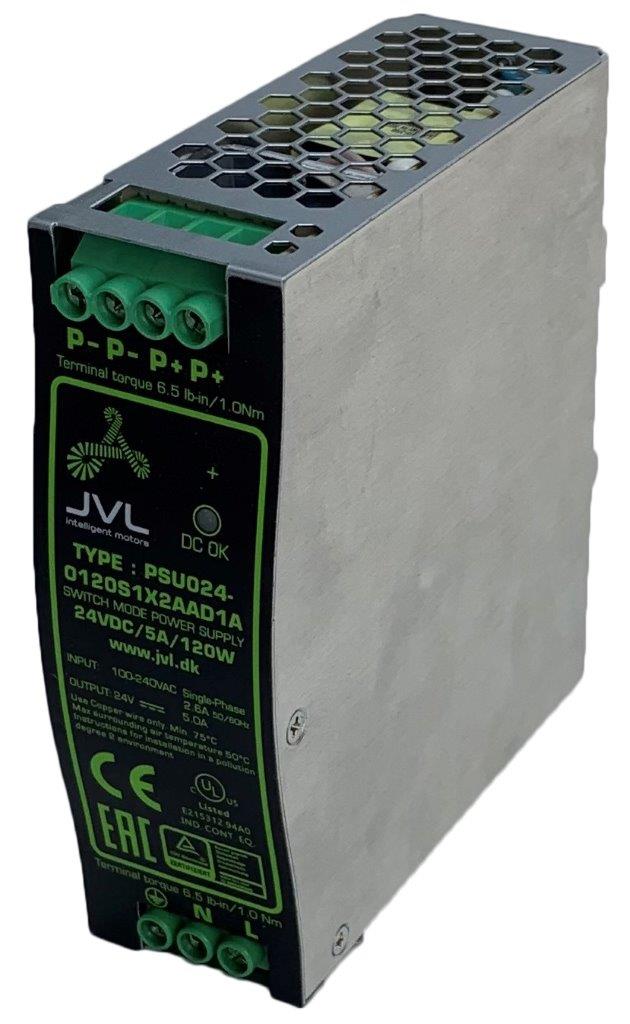

| 60 | 60 | 24 |
[0-1]
|
- |
[0-1] |
[0-1] | - | - | - | [0-2] |  |
|
| 120 | 120 | 24 |
[0-1] |
- | [0-2] | [0-1] | [0-1] | [0-1] | [0-1] | [0-1] |  |
|
| 221 | 221 | 24 |
[0-1] |
- | [0-3] | [0-2] | [0-2] | [0-2] | [0-2] | [0-2] |  |
|
| 140 |
400 |
48 |
- | - | - |
- | - | - | - | - |
 |
|
| 140 |
400 |
48 |
- | - | - |
- | - | - | - | - |
||
| 480 | 480 | 24 | [0-4] | [0-1] |
[0-4] |
[0-2] | [0-1] | [0-2] | [1-2] |
[1-2] |  |
|
| 480 | 480 | 48 | [0-4] | [0-1] |
[0-4] |
[0-2] |
[0-1] | [0-2] | [1-2] |
[1-2] | ||
| 960 | 960 | 24 |  |
|||||||||
| 960 | 960 | 48 | ||||||||||
| 1000 | 1000 | 48 | [2-10] | [0-5] |
[10-20] |
[3-10] | [2-5] | [2-10] | [2-10] | - |  |
|
| 1000 | 1000 | 80 |
- | - | - |
[3-10] | [2-5] | [2-10] | [2-10] | - | |
|
| 1500 | 1500 | 48 |
[3-15] | [1-8] | [15-30] |
[4-15] | [3-7] | [3-15] | [3-15] | ✓ |  |
|
| Linear Power Supplies |
||||||||||||

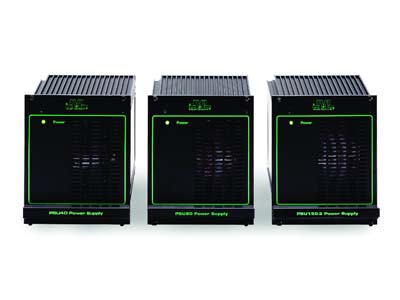

| PSU150-2 |
200 | 150 | - | - | - | - | - |
- |
[0-2] | - |  |
|

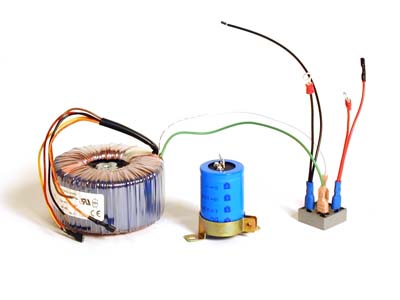

| PSUKIT150-2 | 230 |
460 | 155 |
- | - | - | - | - |
- |
[0-2] |
- |  |
| PSUKIT40-3 | 350 | 700 | 39 | [0-5] | [0-1] |
[3-8] |
[0-3] | [0-3] | ✓ | [0-3] |
✓ | |
| PSUKIT80-4 | 360 | 720 | 76 | - | - | - | [0-4] |
[0-3] | ✓ | [1-3] |
- | |
| PSU80-4 | 360 | 720 | 80 | - | - | - | [0-4] |
[0-3] | - |
[1-3] |
- | |
| 400 | 700 | 40 | [0-4] |
[0-1] |
[4-8] |
[1-4] |
[1-3] | [1-3] | [1-3] |
✓ | ||
| PSU150-4 | 400 | 150 | - | - | - | - | - |
- |
✓ | - | ||
| Power Dump Circuit and accessories |
||||||||||||
|

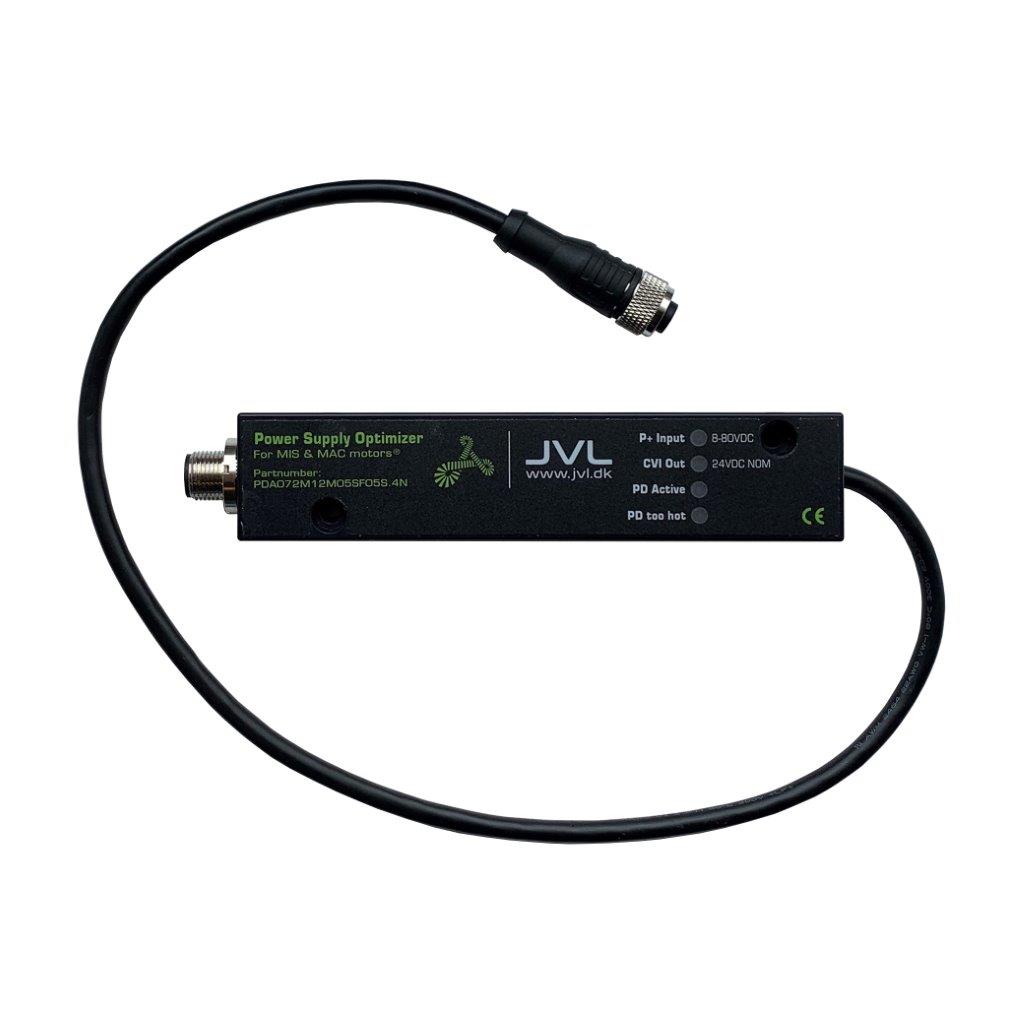

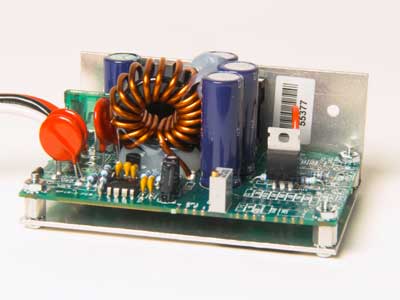

48 (CVI) |
8-72
|
 |
||||||||||
| PSU00-PD1 (40V) |
40
|
 |
||||||||||
| PSU00-PD2 (80V) |
80 |
- | ||||||||||
| NETKABEL1 | Main cable for PSU40, PSU80 and PSU150 (only for some EU countries) |
 |
||||||||||
| BASE1 |
Base plate, 140x170x4mm for 19" rack Power supplies (PSU40, PSU80, PSU150)
|
 |
||||||||||
| Obsolete Products (Switch Mode) |
||||||||||||

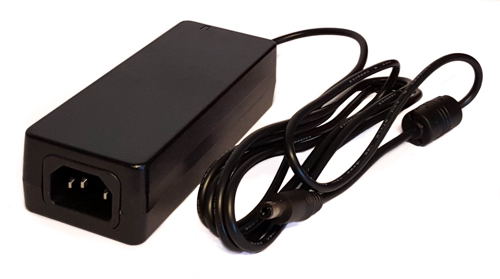

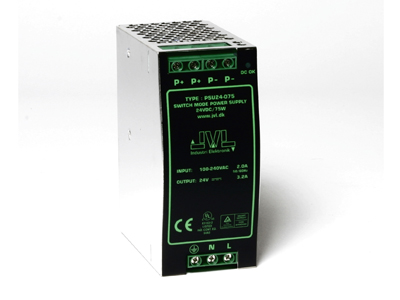

| 75 | 75 | 24 |
[0-1] |
- | [0-2] | [0-1] | [0-1] | [0-1] | [0-1] | [0-1] |  |
|
| 240 | 240 | 24 | [0-4] | [0-1] |
[0-4] |
[0-2] | [0-1] | [0-2] | [1-2] |
[1-2] |  |
|
| 240 | 240 | 48 | [0-4] | [0-1] |
[0-4] |
[0-2] |
[0-1] | [0-2] | [1-2] |
[1-2] | ||

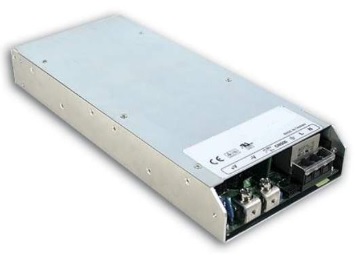

| PSU48-800 | 800 | 800 | 48 |
✓ |  |
|||||||
| PSU48-1000 | 1000 | 1000 | 48 |
✓ |  |
|||||||

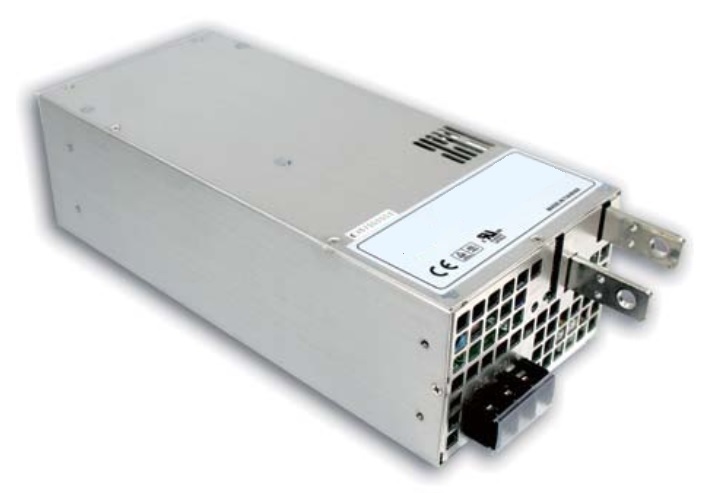

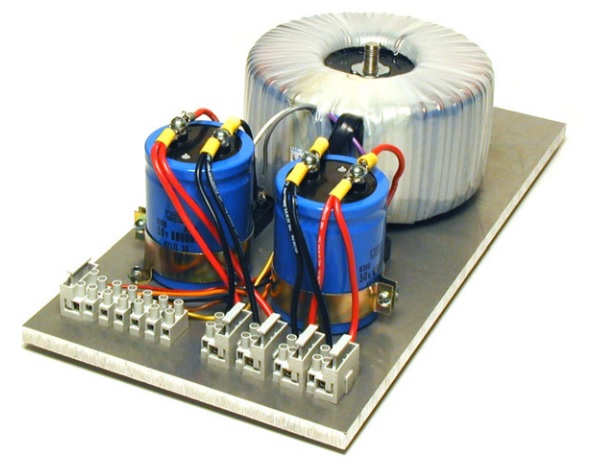

| PSU48-1500 | 1500 | 1500 | 48 | ✓ |  |
|||||||
| Obsolete Products (Linear) |
||||||||||||
| 1000 | 2000 | 44 | [4-8] |  |
||||||||
| 1000 | 2000 | 44 | [4-8] | |
||||||||
