Products

We offer a wide range of motion control products as can be seen below. The range includes integrated servo and stepper motors, HMIs, different types of gear reducers, encoders, discrete servo and stepper motors and controllers, linear motors, ball screw & tooth belt driven actuators — and much more.

They are all of a modern, although well-proven design and have shown their capabilities in thousands of applications. All of these units are normally in stock or can be delivered with a short notice.

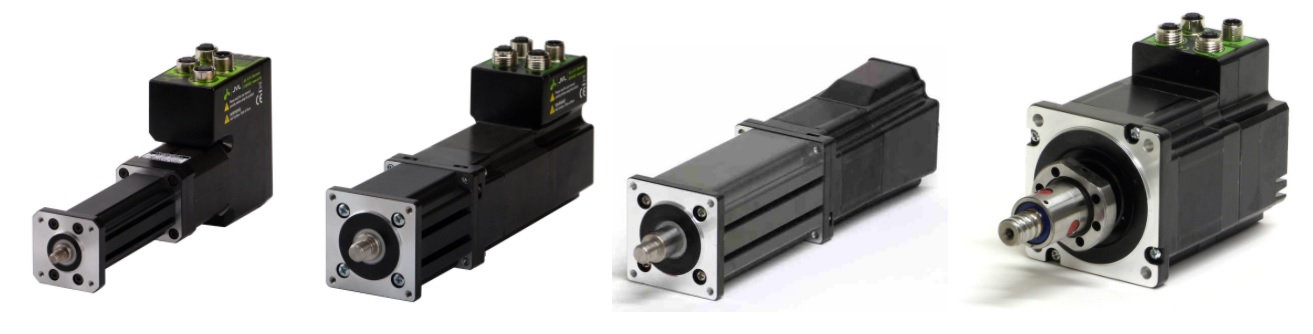

	Integrated MAC Servo motors A series of compact, versatile integrated servo motors with many unique features. A module expansion module system, makes them easily adaptable to almost any application including RS232, RS485, USB, CANopen, DeviceNet, Profibus,Industrial Ethernet like Profinet and MODBUS tcp/ip. Wireless Bluetoth, WLAN and Zigbee systems. Power range is from 50W to 3000W.
	Integrated ServoStep Stepper Motors A series of compact versatile Integrated stepper motors that meets almost any need for a compact stepper motor system. The force range is from 0.2 to 25Nm in flange size 17(43mm) to 43 (110mm)

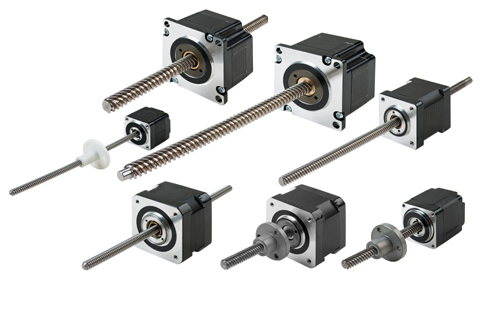

	Integrated Stepper Motors Linear Actuator A wide range of linear stepper motors. Size 17(42 mm) to 34(86 mm). All designed by JVL for use with built in controller, PLC, RS485, wireless and industrial ethernet.
	Stepper Motor Drivers A series of stepper motor drivers that meets almost all the needs for precise control of stepper motors, incuding mini-stepping with up to 25000 ministeps per revolution.

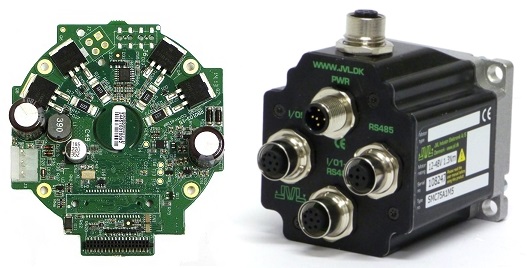

	Stepper Motor Controllers Stepper Motor Controllers with PLC, 8IO, analogue, encoder input and CANopen
	Stepper motor with incremental or absolute multiturn encoder Stepper motor NEMA08/17/23/24/34/43 with magnetic or optical encoder . Option for absolute multiturn encoder and 5 to 24VDC supply input. Incremental ABZ , SSI or BISS-C interface.
	Stepper Motors A wide range of stepper motors, from 18 Nm to 50 Nm. All designed by JVL for use with the entire range of JVL step motor drivers and controllers.
	Non-integrated Stepper Motors Linear Actuator A wide range of linear stepper motors, from 5 to 2700 N. Size 08(20 mm) to 34(86 mm).
	Junction Boxes - WI1301 and WI1302 for MAC and MIS 2 junctions boxes to help connceting external sensors to either MAC or MIS motors in flange size 17(43mm) to 43 (110mm) WI1301 for MAC ( Isolated Digital IO's possible w. ext. PSU ) WI1302 for MAC and MIS
	Software Software for setup and programming. An OCX/ ActiveX driver for programmers of Windows applications. For those who want to make their own interface and send serial data from a PLC, PC or microprocessor a MACtalk protocol analyser and viewer is available. MotorSizer.com makes it easy to determine the required motor and gear size for a specific task.
	Touch Operator Panels Wide range of high quality Human Machine Interface panels for use with the integrated servo and stepper motors from JVL.
	Planetary, Robot and Worm Gears A series of gears for use with the JVL range of Integrated Servo and Stepper motors as well as with other motors in the JVL range.

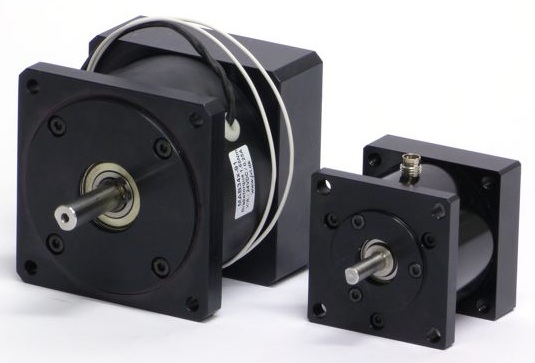

	Electronic motor Brake for NEMA23 (57mm) and NEMA34 (86mm) The electronic brake is designed and produced by JVL to be mounted on stepper- and servo motors that have NEMA23 and NEMA34 flange such as the MAC50-141 series of integrated servo motors and the series of ServoStep MIS23x and MIS34x integrated stepper motors. The brake has zero backlash and no auditory noise. It fits on all step- and servo motors with NEMA23 and NEMA34 flange and can from stock be delivered with different input and output shaft. Connection can be wire or M8 connector. Protection from IP44 to watertight IP67.
	HLMT - Hollow Rotary Actuator / Hollow Rotary Table Our new series of Hollow Rotary Actuators, HLMT, offer the easiest possible installation of rotary table applications. Depending on your application you can choose between servo and stepper motors – with or without built-in (absolute) encoders.
	Encoders JVL offers a range of encoders. Both linear and rotating, Incremental, magnetic, absolute multiturn. SSI and BISS. JVL is Exclusive distributor for LIKA Electronics and Givi Misure rotational and linear encoders.
	Power Supplies A wide range of highly efficient switchmode power supplies for supplying the entire range of JVL integrated MAC ac servo motors and integrated ServoStep stepper motors.
	Connection cables A series of cables and connectors for the MAC integrated servo motors and the ServoStep integrated stepper motors.
	Merchandise and demo units These demo units can be used for exhibitions and test.
Classical Products
	If you do not find what you are looking for above, have a closer look here. These products are all also of a wellproven design, and have shown their their qualities through very many applications in industry. Delivery time may be a little longer than with those above.
Supplementary Products
	Here you find quality products from leading manufacturers from all over the world. JVL A/S represents these companies in Denmark and markets their products within the field of motion control as a supplements to our own products. In this way we can offer our customers complete motion control systems where we deliver all the necessary parts.
