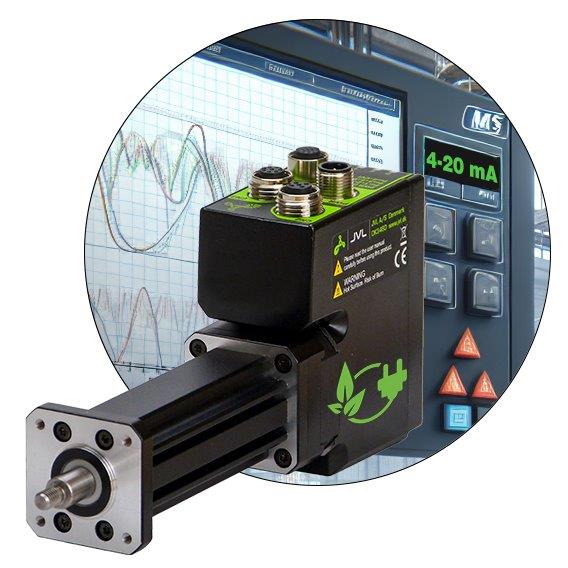

Analog Out 4-20mA / 0-10VDC


Converting your hydraulic or pneumatic application to top-of-the-line electrical power is now easier than ever.

The analog outputs are automatically controlled by the intelligent JVL motor and can be used together with all the Ethernet protocols the motor supports. Meaning you can add a modern industrial ethernet based controller, but still have the motor output e.g. a position or speed via the analog outputs to give feed-back to process equipment.


JVL’s Analog out features:
  • Currently available for MIx17, MIx23 and SMC66 – MIS34-43 on request
  • 2 outputs, 0-10VDC and 4-20mA
  • Software setup 0-20mA or 4-20mA
  • 18-32VDC input for external supply
  • Galvanic isolated – 500VDC isolation
  • 14-bit resolution (equivalent to 1 µA)













Examples of JVL products with Analog out.
JVL Part number Description Photo
ServoStep™ type
MIS176S8A5H466
 0.78 Nm NEMA17 stepper motor, Ø6.35 mm d-cut shaft, RS485 + Analogue out, 0-20V/4-20mA and 0-10V, Closed-loop
MIS234S3APH4S6 3.08 Nm NEMA23 stepper motor, Ø10 mm round shaft, Profinet + Analogue out, 0-20V/4-20mA and 0-10V, Closed-loop, TÜV approved STO (Safe Torque Off) funtion
MIL176SC0-ACH466G
 NEMA17 linear actuator and stepper motor with EtherCAT + Analogue out, 0-20V/4-20mA and 0-10V
MIL232SCZ-AMH466G NEMA23 linear actuator and stepper motor with ModbusTCP + Analogue out, 0-20V/4-20mA and 0-10V
On request
MIS34xxxxAxxxxx
 Please contact JVL for any inquiries about NEMA34 Integrated Stepper Motors with Analog out
MIS43xxxxAxxxxx
 Please contact JVL for any inquiries about NEMA43 Integrated Stepper Motors with Analog out
