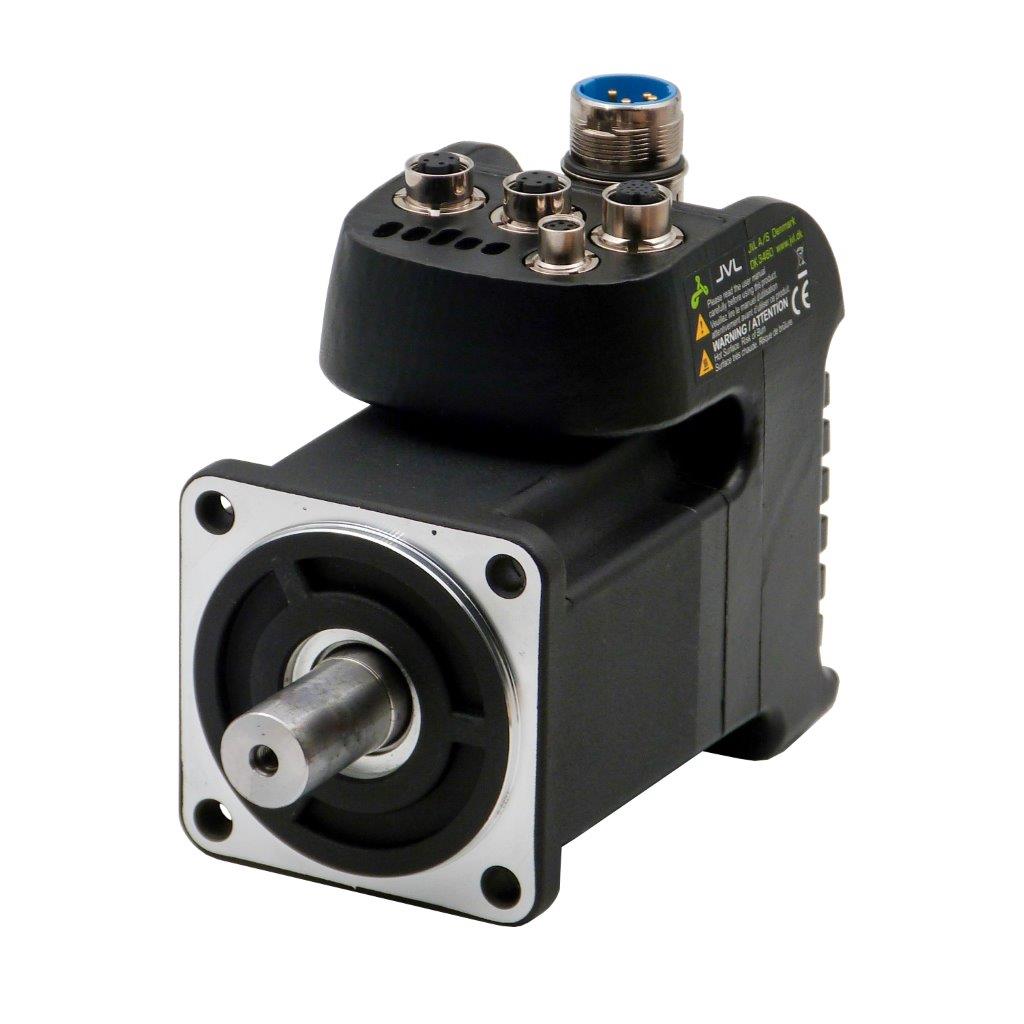

MAC802 Integrated Servomotor with built in Ethernet Interface


New servomotor from 750 W power and 2250 W peak with built in driver/controller and new harvesting encoder with unlimited down time, no battery required and as standard industrial Ethernet interface.

JVL is proud to announce a completely new generation of 24 to 48 DC power supplied integrated servo motors. These new motors are based on completely new software and hardware design and customer feedback collected for many years and offer a wide pallet of options and possibilities which makes this product fit into almost any application.

Key features:
  • More compact design than previous servomotor
  • No need of module. Lower cost
  • Industrial Ethernet - 6 protocols
  • Absolute multiturn encoder unlimited down time (no battery)
  • Safe Torque Off (STO) input
  • Supply 24 to 48 VDC
  • Very energy efficient
  • 0 – 3000 RPM . Max 3600 RPM
  • Standard IP55 or IP66 protection
  • Wide program of interface possibilities
  • M12 and M16 industrial connector for harsh environment
  • Connector compatible with MAC400/800
  • PLC built-in ePLC
  • RS485 interface
  • CE, TÜV and UL certification in progress







Optional:



  • Specification
  • Dimension
  • Connectivity
  • Ethernet
  • Curves
  • Youtube

Part number Length [mm]
 Torque Rated/Peak [Nm]
 Power Rated / Peak [W]
 Duty Cycle [%]
 Placeholder
IP42
MAC802M2
2.4 / 7.2
 750 / 2250
 100

MAC802M5
with Brake
2.4 / 7.2
 750 / 2250
 100

IP66
MAC802M3
2.4 / 7.2
 750 / 2250
 100

MAC802M6
with Brake
2.4 / 7.2
 750 / 2250
 100

Encoder type choose between G: Incremental Magnetic encoder 8192CPR and H: Incremental Magnetic 8192CPR Magnetic + Absolute multiturn encoder 19bit . ( Under development I and J option Multipole 18 bit incremental)
0-3000 RPM. Max speed 3600 RPM




MAC802 dimensions







Choose between wireless Bluetooth, WLAN or Industrial Ethernet Profinet, Ethernet/IP, EtherCAT, Powerlink, MODBUS TCP/IP, SERCOS III, RS485 and PLC built-in are standard. 8IOA, SSI and pulse/direction




MAC802 S1
MAC802 S3










Go to JVL Youtube Channel
JVL Presentation Video
JVL Academy
  • MIS17-43 Connection guide
  • How to connect and test a JVL integrated motor
  • Closed loop linear movement
  • Closed loop rotation torque
  • IO-Link for JVL motors














Accessories:

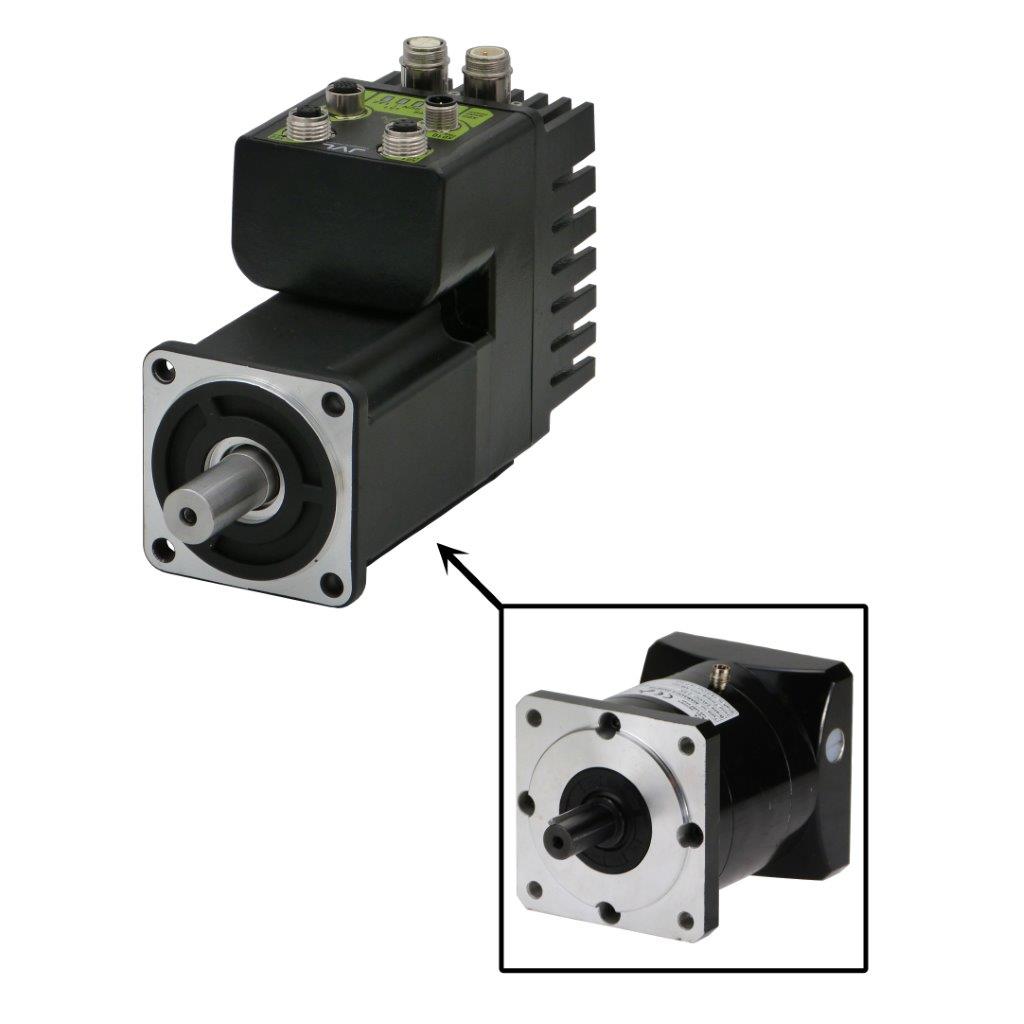

Built in brake

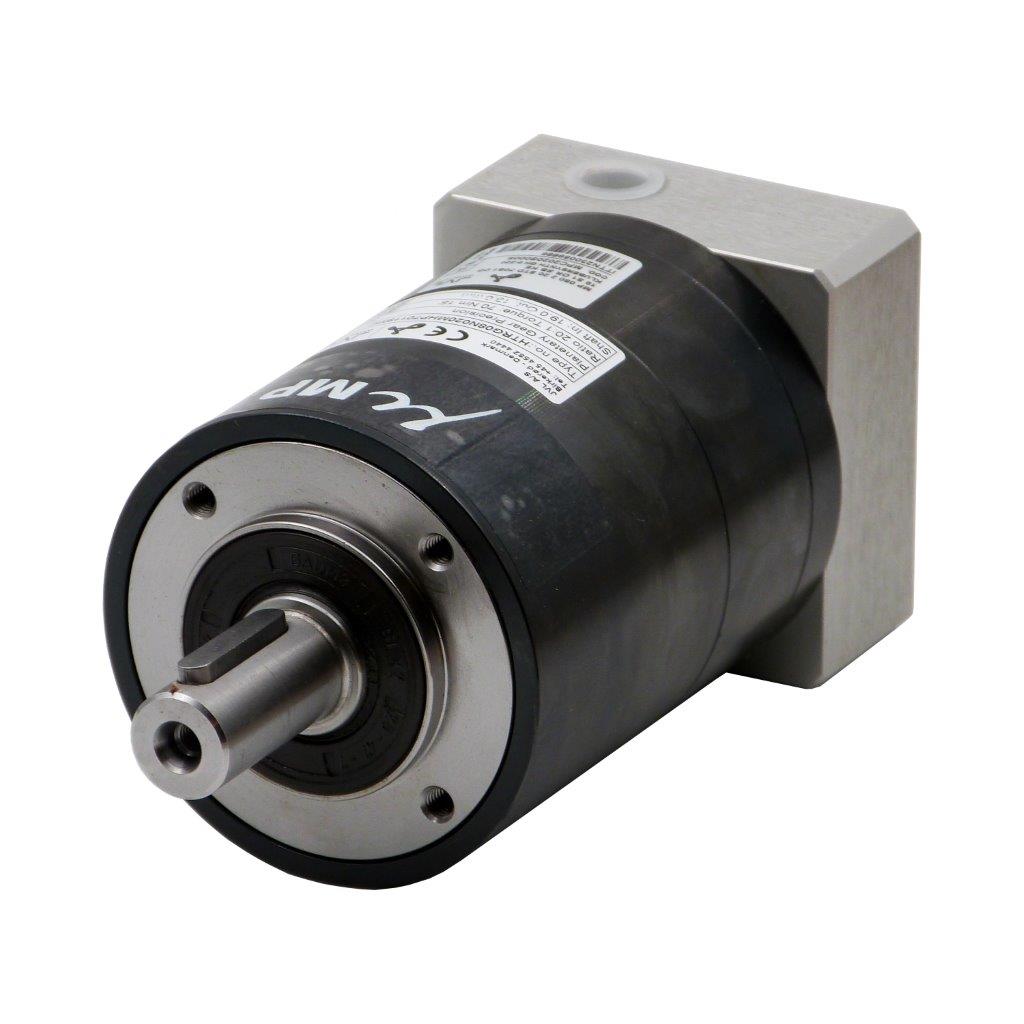

 Gear
 Ethernet IO Gateway
 Junction box
IP Protection option: 5 and 6
 HTRG08..P701..
 PA0190
WI1302-
2AM17T01NMB

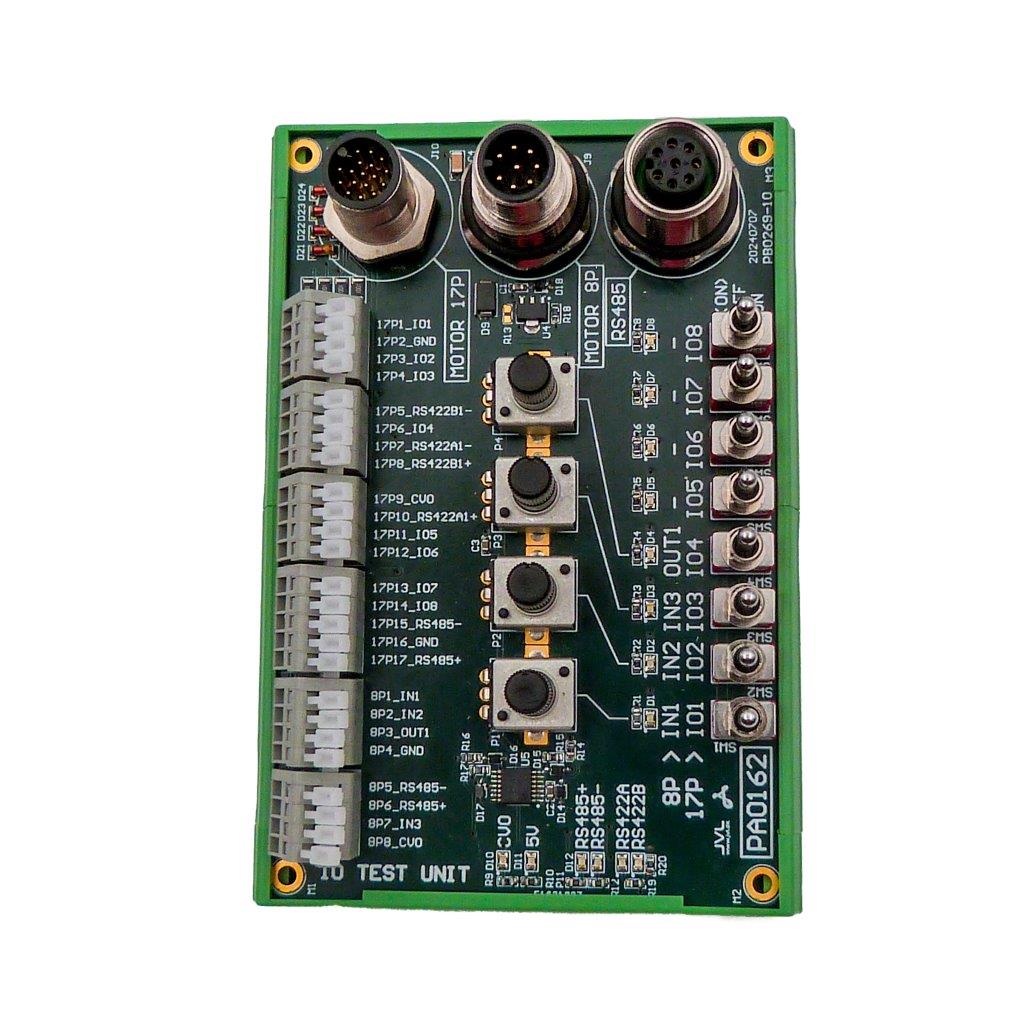

 PA0162




see assembly order codes here
 Required: RS232-M12-1-5-8



Commissioning
Communication software



MacTalk














Cables
Power
 Ethernet

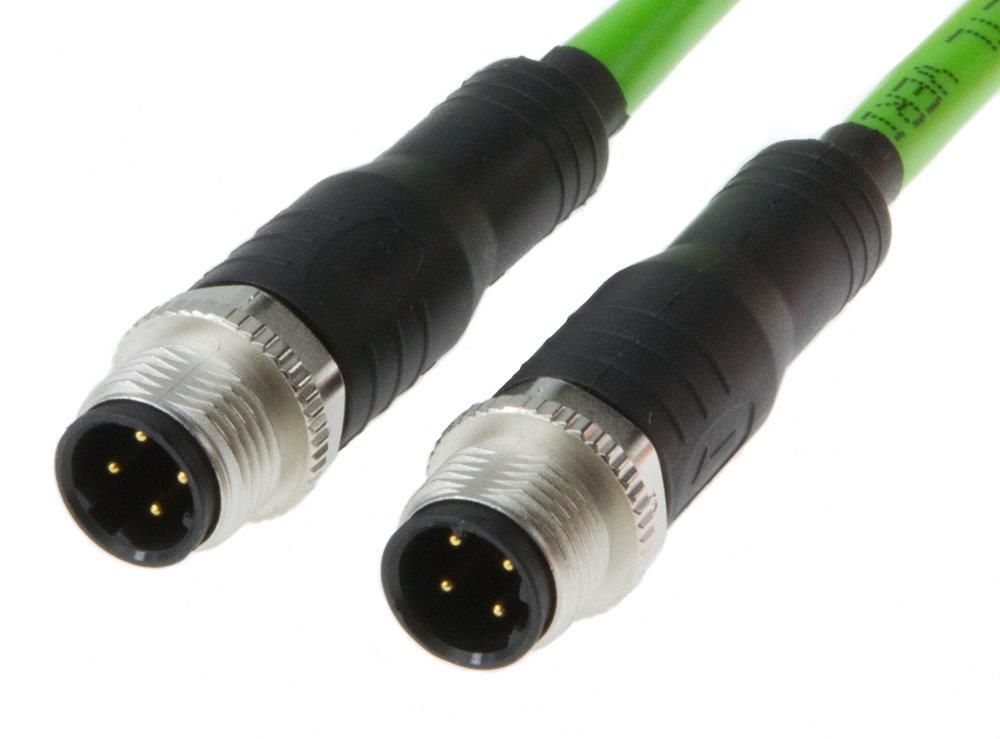

 Ethernet daisychain
 I/O

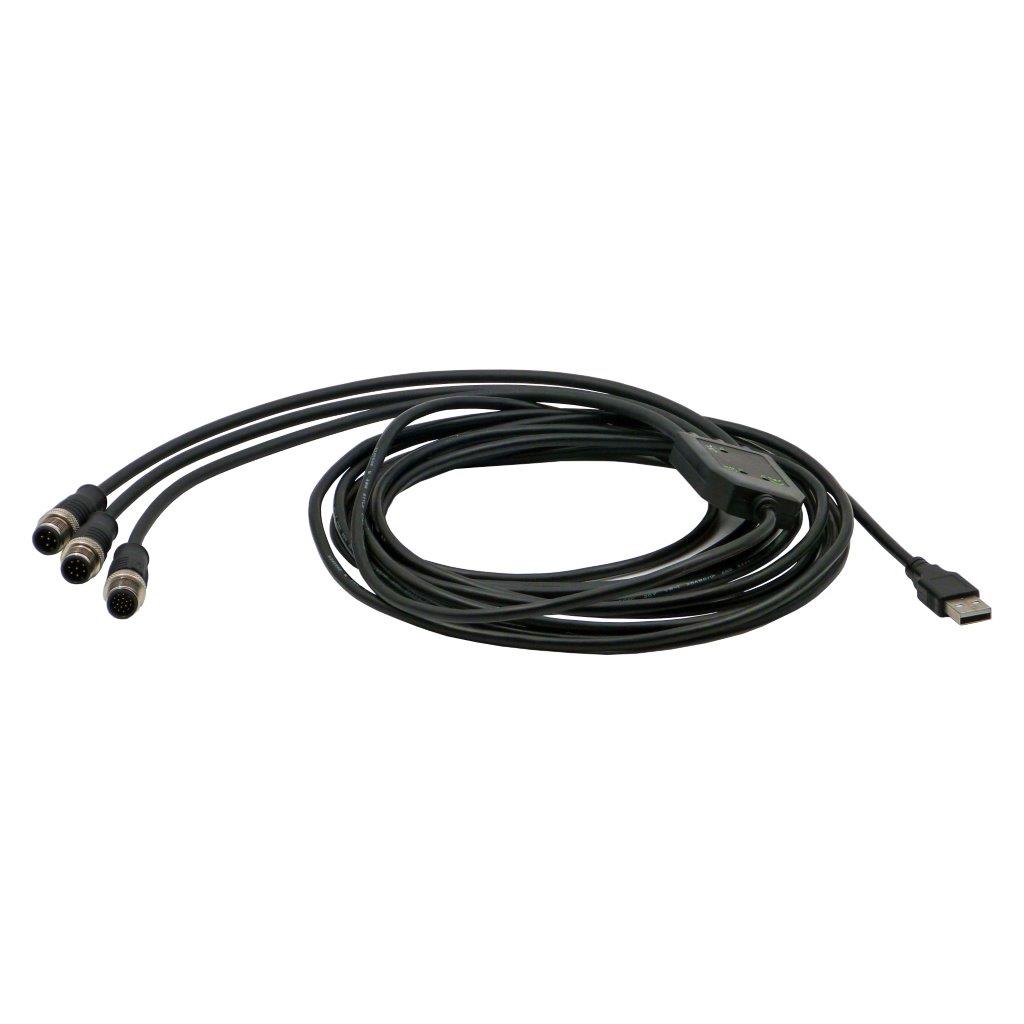

 USB to RS485 / RS422 / RS232 converter
WI1000-M12F5TxxN
 WI1046-M12M4TxxTRJ45
 WI1046-M12M4TM4TxxT
 WI1009-M12M17TxxN

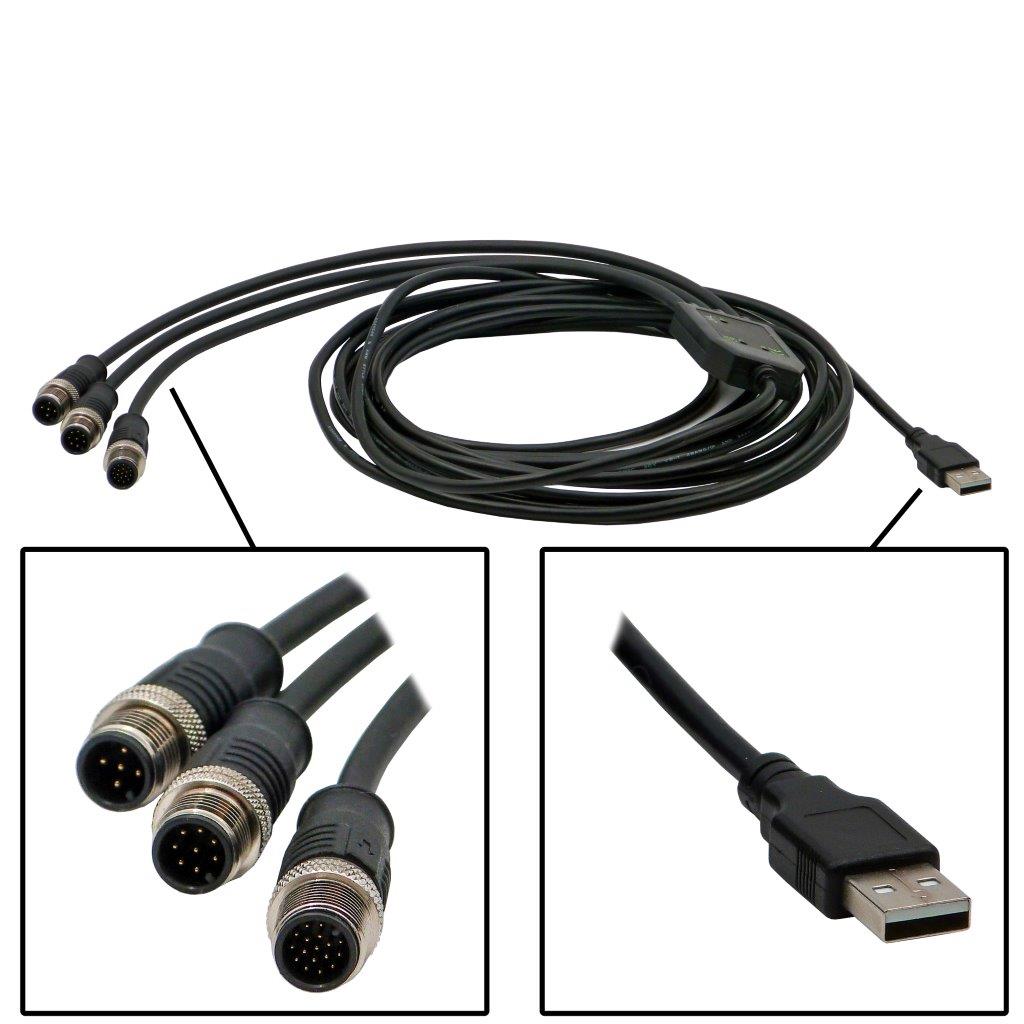

 RS485-USB-M12M5M8M17



xx: available options are 05 and 20 (meter)
 xx: available options are 05 and 20 (meter)
 xx: available options are 05 and 20 (meter)
 For 17 pin connector
 For 8 Pin connector

Power supply
Switch Mode Power Supply [P+]
 Power cable for M16 connector
 Power Dump cable for M16 connector

PSU024- 0120S1X2AAD1A
 WP04xx
 WP01xx





xx: available options are 05 and 20 (meter)
 xx: available options are 05 and 20 (meter)




DETAILED





DOWNLOAD
