Test Box PA0162: Essential Tool for Motor Testing and Program Development for MISxx+MAC404/1004/802



The Test Box PA0162 is a highly valuable testing tool designed for service, support, and development teams working with JVL motors. It allows technicians to test motor functions or create ePLC programs before commissioning a machine, ensuring smoother operations and fewer issues during setup.



Key features include:

• On/Off switches to simulate PLC outputs
• LED indicators to display output levels
• 4 potentiometers for simulating analog inputs
• Screw connectors for external IO signals
• M12 x3 connectors for external IO signals





Comprehensive Testing and Simulation
The Test Box PA0162 provides a versatile range of testing capabilities, including:

• I/O simulation
• Encoder simulation
• Analog input simulation

These features allow for seamless testing of machine I/Os before deployment. A variety of special cables are available, enabling quick and easy connection between the motor and the test box for rapid testing and development of new programs.



The PA0162 Test Box also works in conjunction with MacTalk to test the functionality of both motor inputs and outputs, offering comprehensive diagnostics before final implementation.



This test box can emulate:

• 8 digital inputs and 8 digital outputs
• 4 analog inputs

Additionally, it offers connectors for external I/O, encoder connections, and serial communication interfaces, ensuring maximum flexibility during testing.



The PA0162 includes 8 switches that can be activated as either push buttons or toggle switches, depending on the position (left for toggle, right for push, and neutral in the middle).



No external power supply is required—the test box is powered directly via CVI 24V through the motor, making it both convenient and easy to set up in any environment.



Part number	Description	Function	Photo
Test Box

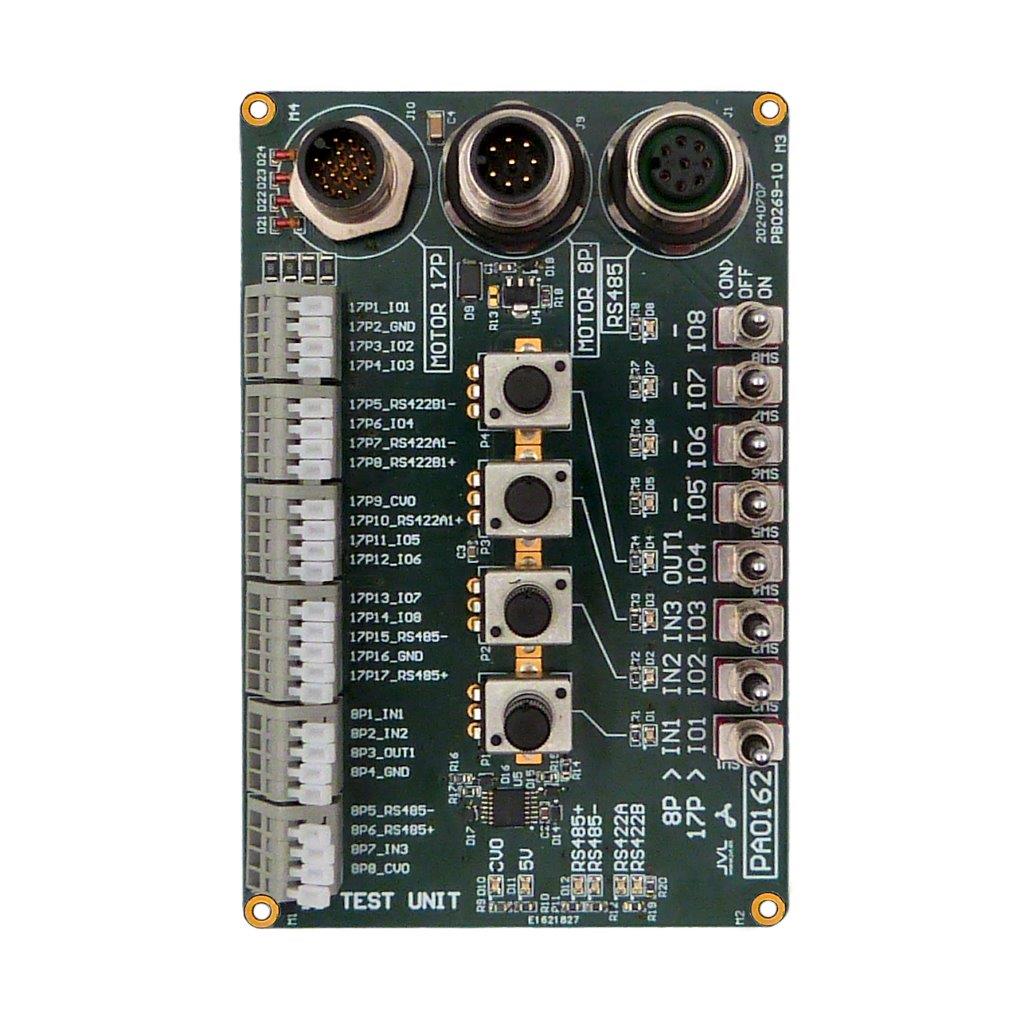

PA0162	I/O test PCB for MISxx+MAC404/1004/802 LxWxH: 110x72x28 mm Weight: 0.100 kg Package LxWxH: 25x15x15 cm	To test IO and make ePLC program
PA0162-DINBOX	Same as above with PA0162-CASE LxWxH: 112.5x77.5x50 mm Weight: 0.148 kg Package LxWxH: 25x15x15 cm	Same as above
Protection Box with DIN rail

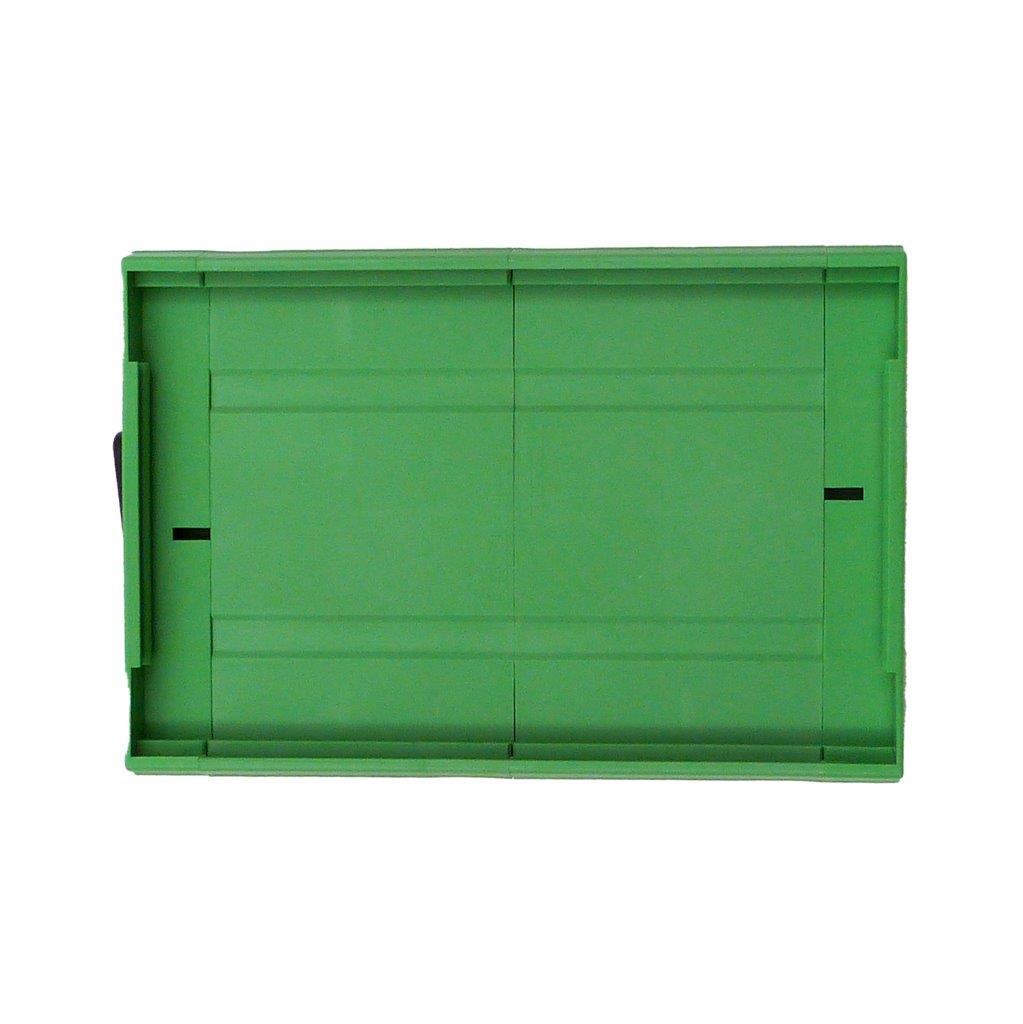

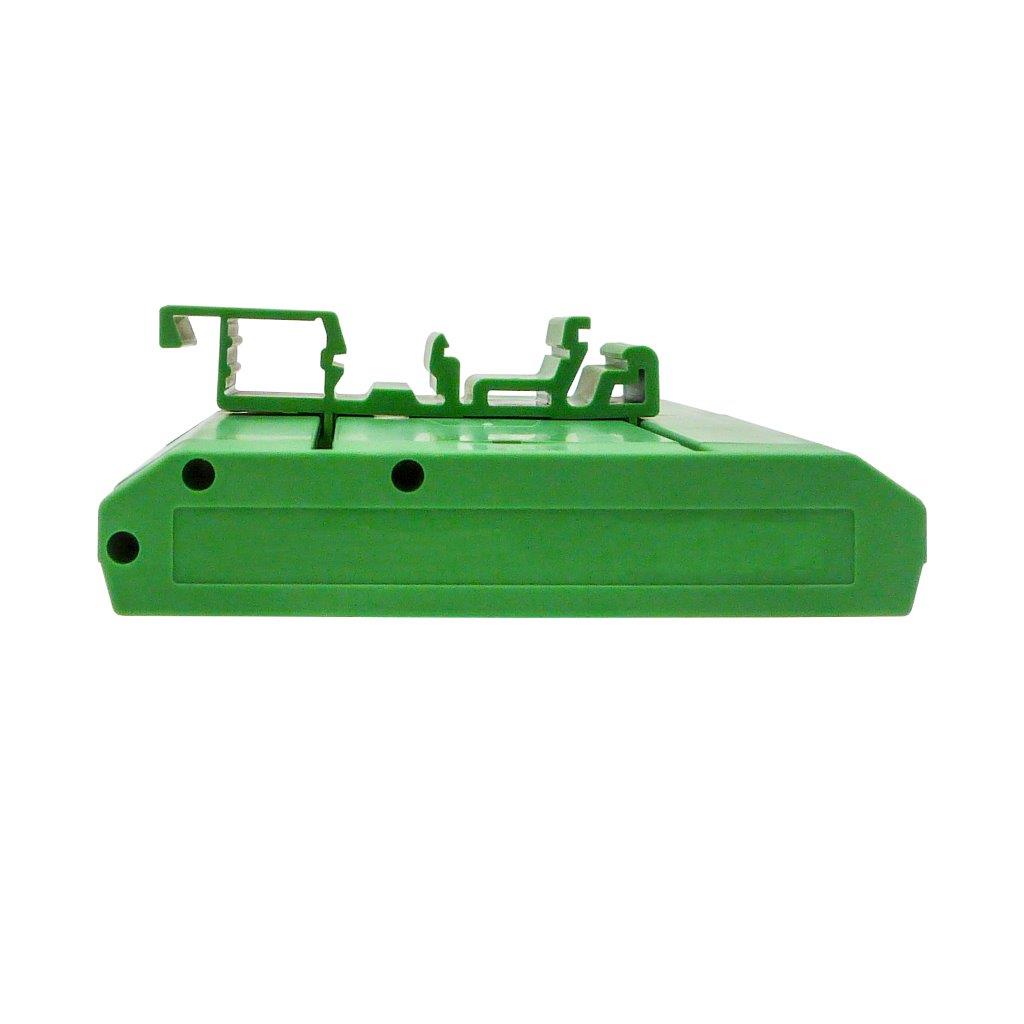

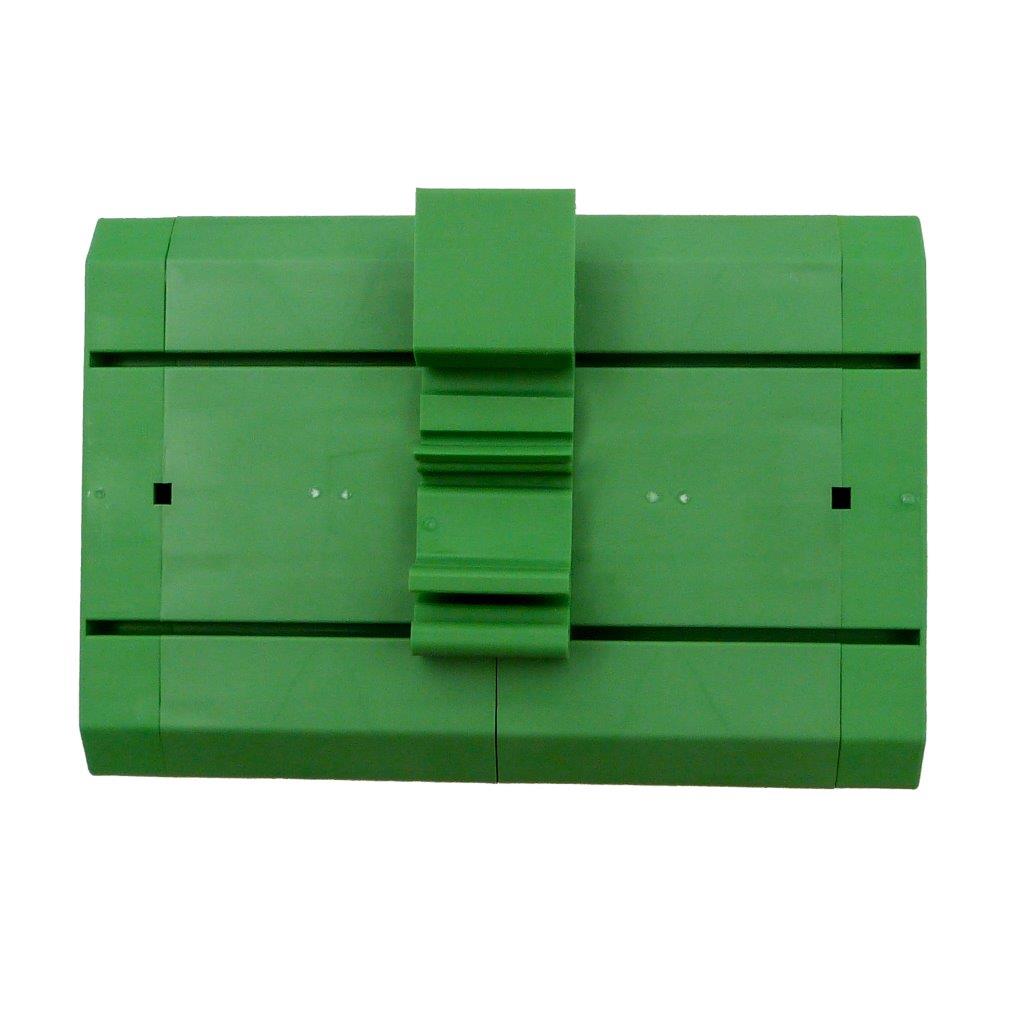

PA0162-CASE	Box for PA0162 with DIN rail LxWxH: 112.5x77.5x28 mm Weight: 0.048 kg Package LxWxH: 25x15x15 cm	Protect the open PCB and make it possible to mount on a DIN rail.
Connector Cables for motor with 8pin IO connector (MOTOR 8P on PCB)

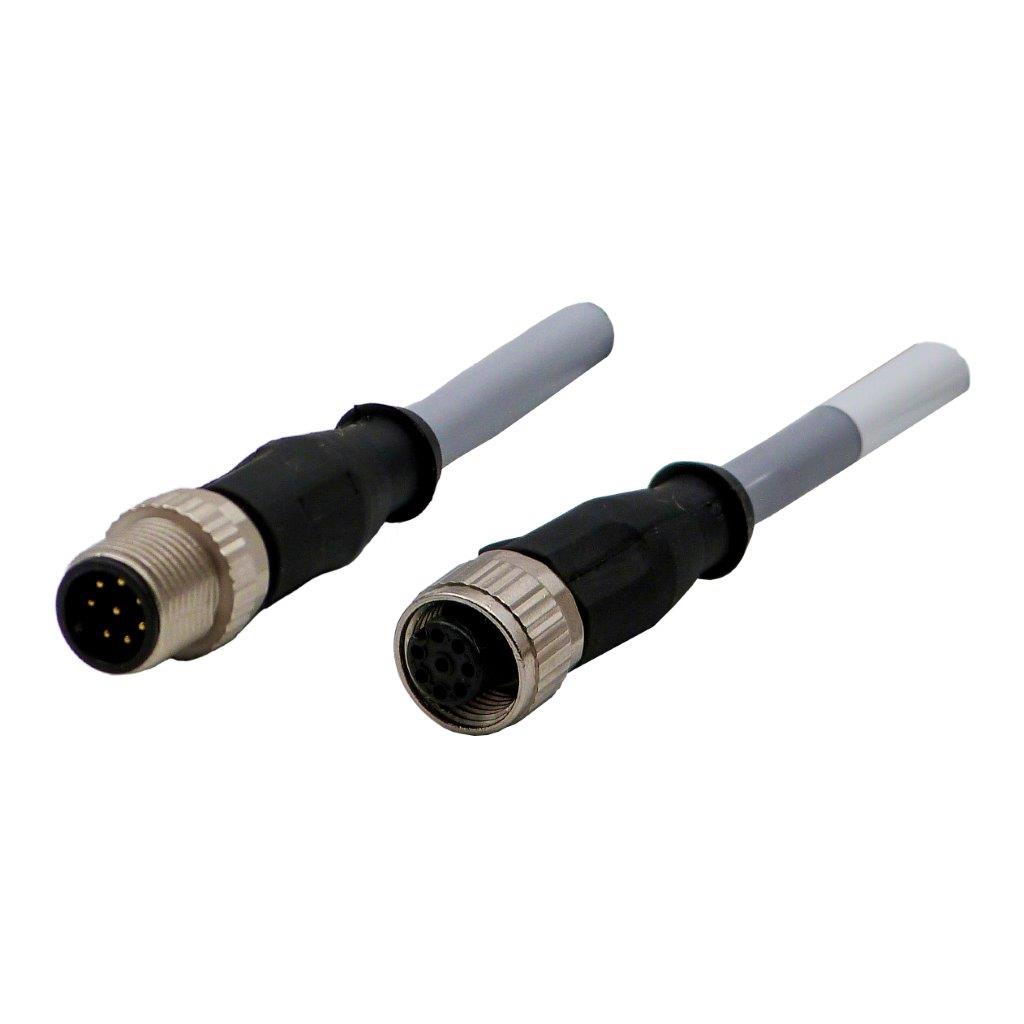

WI1005-M12M8TF8T01N	M12 Shl Cab 1m 8p Male to 8p Female 0° 2x4pair	1m cable between motor 8pin to PA0162 8pin
WI1005-M12M8TF8T20N	M12 Shl Cab 20m 8p Male to 8p Female 0° 2x4pair	20m cable between motor 8pin to PA0162 8pin
Connector Cables for motor with 17pin IO connector (MOTOR 17P on PCB)

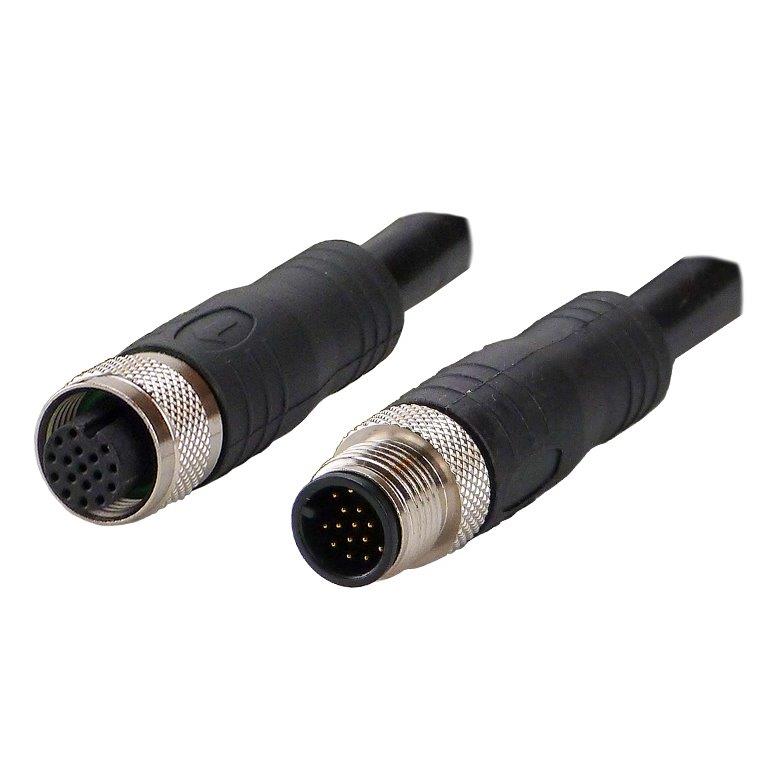

WI1009-M12M17TF17T01	M12 Shl Cable 1m Male17p - Female 17p 0° twist pair	IO cable 1m cable between motor 17pin to PA0162 17pin
WI1009-M12M17TF17T04	M12 Shl Cable 4m Male17p - Female 17p 0° twist pair	IO cable 4m cable between motor 17pin to PA0162 17pin
Connector for optional serial communication (RS485 on PCB)

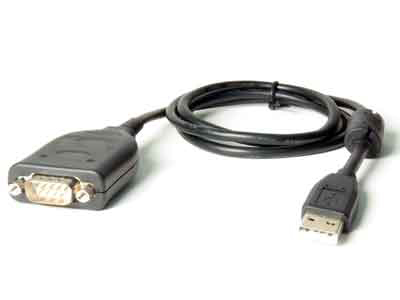

RS485-M12-1-5-8 + RS485-USB-ATC-820	RS485 M12-8pin DSub, 5m, straight + USB to RS485 non-isolated adaptor. 0.5m	RS485 to DSub to USB between PA0162 and PC
RS485-USB-M12M5M8M17	USB to RS485 isolated adaptor, M12 Male 5pin / 8pin / 17pin	RS485 to USB between PA0162 and PC
