MAC804, MAC1004, MAC1504 Integrated Servomotor with built in Ethernet Interface
|

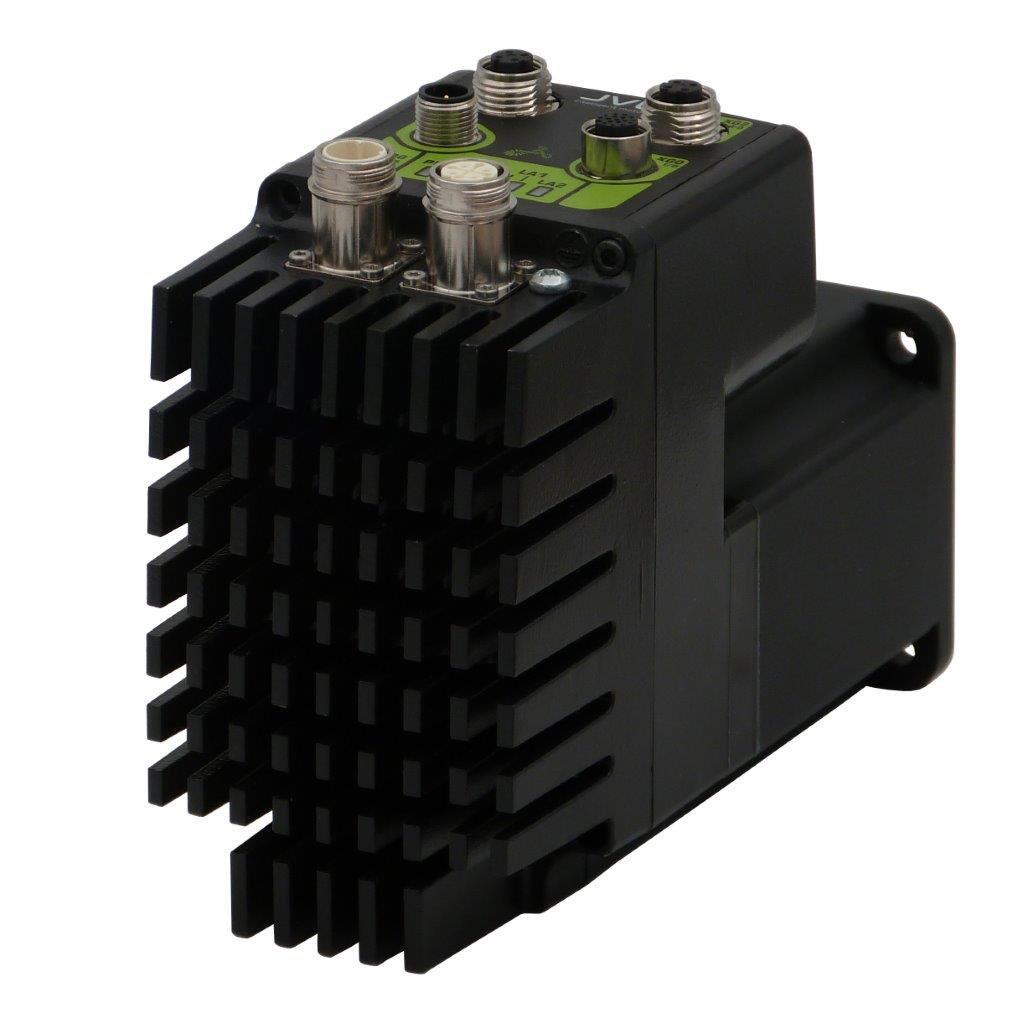

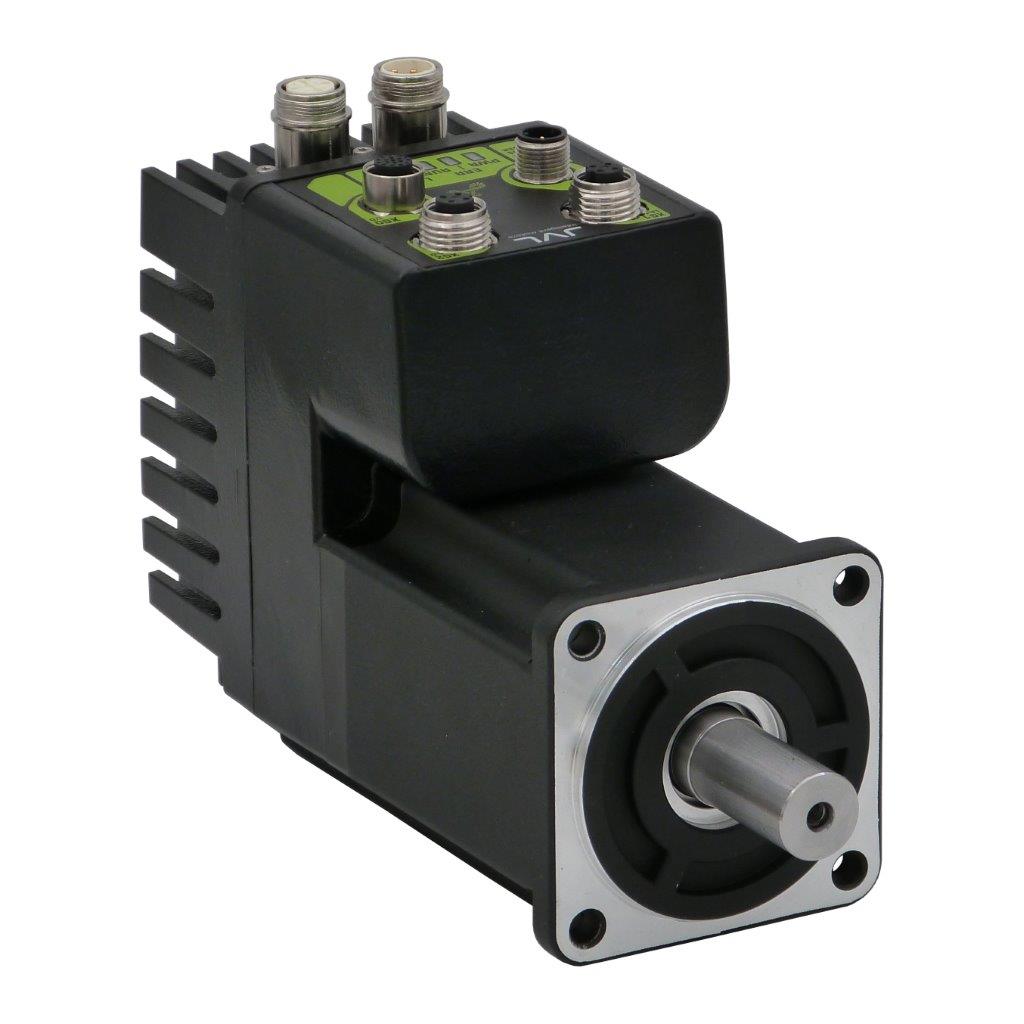

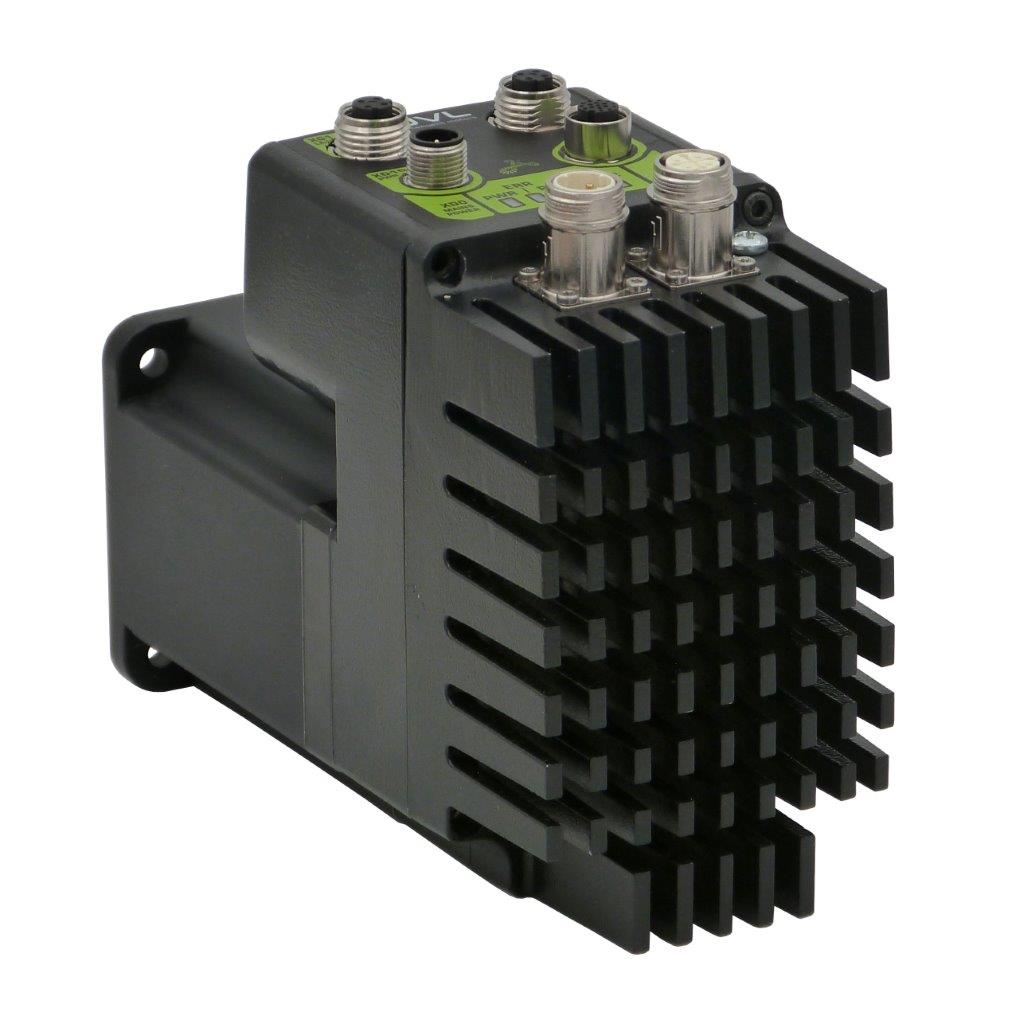

New servomotor with from 750 W to 1500 W power and 4.5 kW peak with built in driver/controller and new harvesting encoder with unlimited down time, no battery required and as standard industrial Ethernet interface.
JVL is proud to announce a completely new generation of 115 to 230 AC power supplied integrated servomotors up to 1500 W in motor size 80x80 mm. These new motors are based on completely new software and hardware design and customer feedback collected for many years and offers a wide pallet of options and possibilities which makes this product fit into almost any application.
Key features:
|
 |
 |
 |
 |
|
   |
|||||
|
Optional:
|
|||||
- Specification

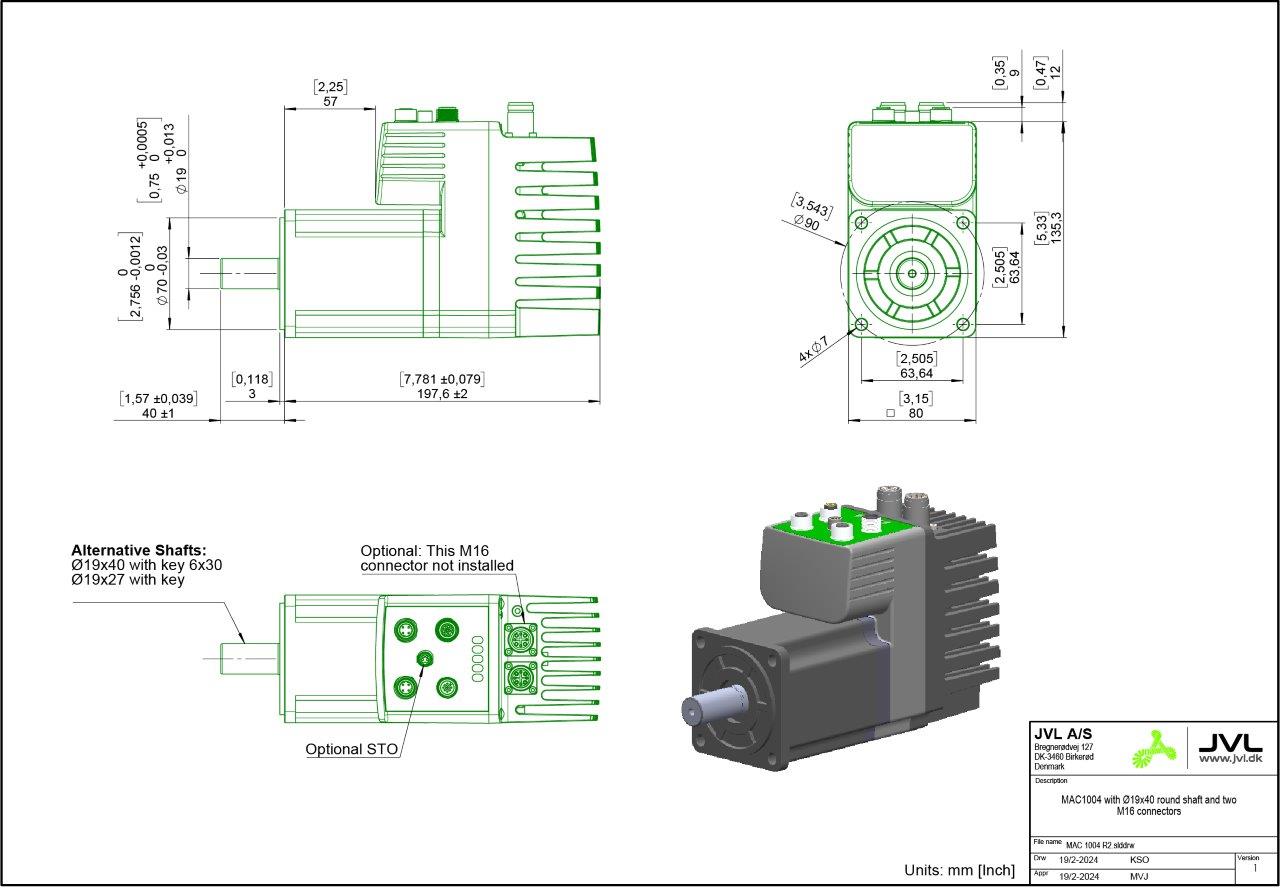

- Dimension
- Connectivity
- Ethernet

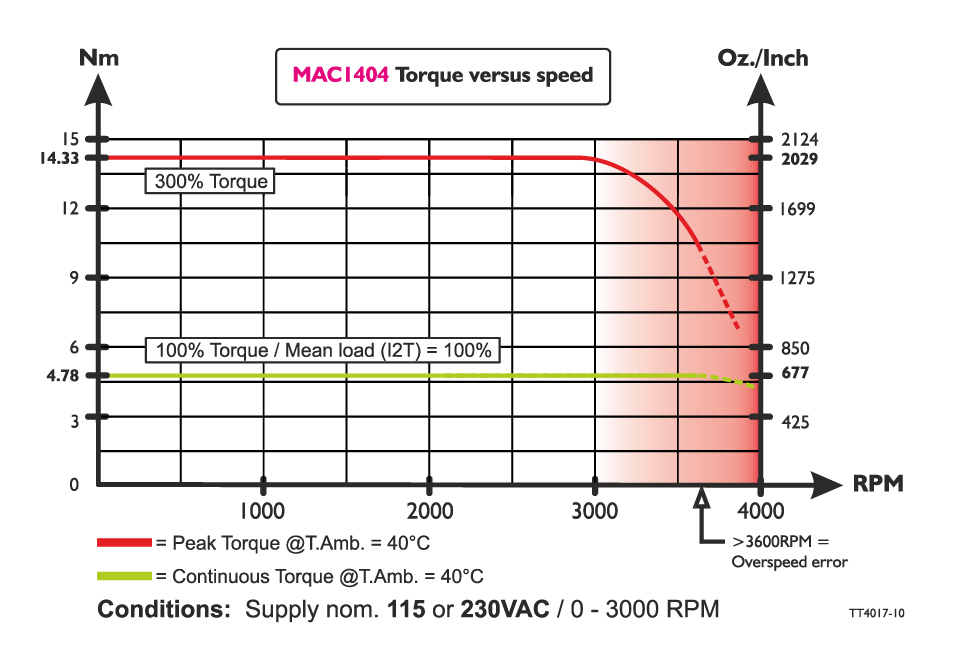

- Curves
- Youtube
| Part number | Length [mm] |
Torque Rated/Peak [Nm] |
Power Rated / Peak [W] |
Duty Cycle [%] |
Placeholder |
|
| IP42 |
||||||
| MAC804M2 |
172.8 |
2.4 / 7.2 |
750 / 2250 |
100 |
|
|
| MAC804M5 with Brake |
207.3 |
2.4 / 7.2 |
750 / 2250 |
100 |
|
|
| MAC1004M2 |
198.0 |
3.15 / 9.55 |
1000 / 3000 |
100 |
|
|
| MAC1504M2 |
233.5 |
4.7 / 14.33 |
1500 / 4500 |
70 |
|
|
| MAC1504M5 with Brake |
268.0 |
4.7 / 14.33 |
1500 / 4500 |
70 |
|
|
| IP66 |
||||||
| MAC804M3 |
172.8 | 2.4 / 7.2 |
750 / 2250 |
100 |
|
|
| MAC804M6 with Brake |
207.3 | 2.4 / 7.2 |
750 / 2250 |
100 |
|
|
| MAC1004M3 |
198.0 | 3.15 / 9.55 |
1000 / 3000 |
100 |
|
|
| MAC1504M3 |
233.5 | 4.7 / 14.33 |
1500 / 4500 |
70 |
|
|
| MAC1504M6 with Brake |
268.0 | 4.7 / 14.33 |
1500 / 4500 |
70 |
|
|
Encoder type choose between G: Incremental Magnetic encoder 8192CPR and H: Incremental Magnetic 8192CPR Magnetic + Absolute multiturn encoder 19bit . ( Under development I and J option Multipole 18 bit incremental)
0-3000 RPM. Max speed 3600 RPM
Choose between wireless Bluetooth, WLAN or Industrial Ethernet Profinet, Ethernet/IP, EtherCAT, Powerlink, MODBUS TCP/IP, SERCOS III, RS485 and PLC built-in are standard. 8IOA, SSI and pulse/direction
| Go to JVL Youtube Channel |
 |
| JVL Presentation Video |
|
| JVL Academy |
|
|
|
|
|
|
|
|
|
|
|
Accessories:
| Built in brake |
Gear |
Ethernet IO Gateway |
Junction box |
|
| IP Protection option: 5 and 6 |
HTRG08..P701.. |
PA0190 |
WI1302- 2AM17T01NMB |
PA0162 |
 |
 |
 |
 |
 |
| see assembly order codes here |

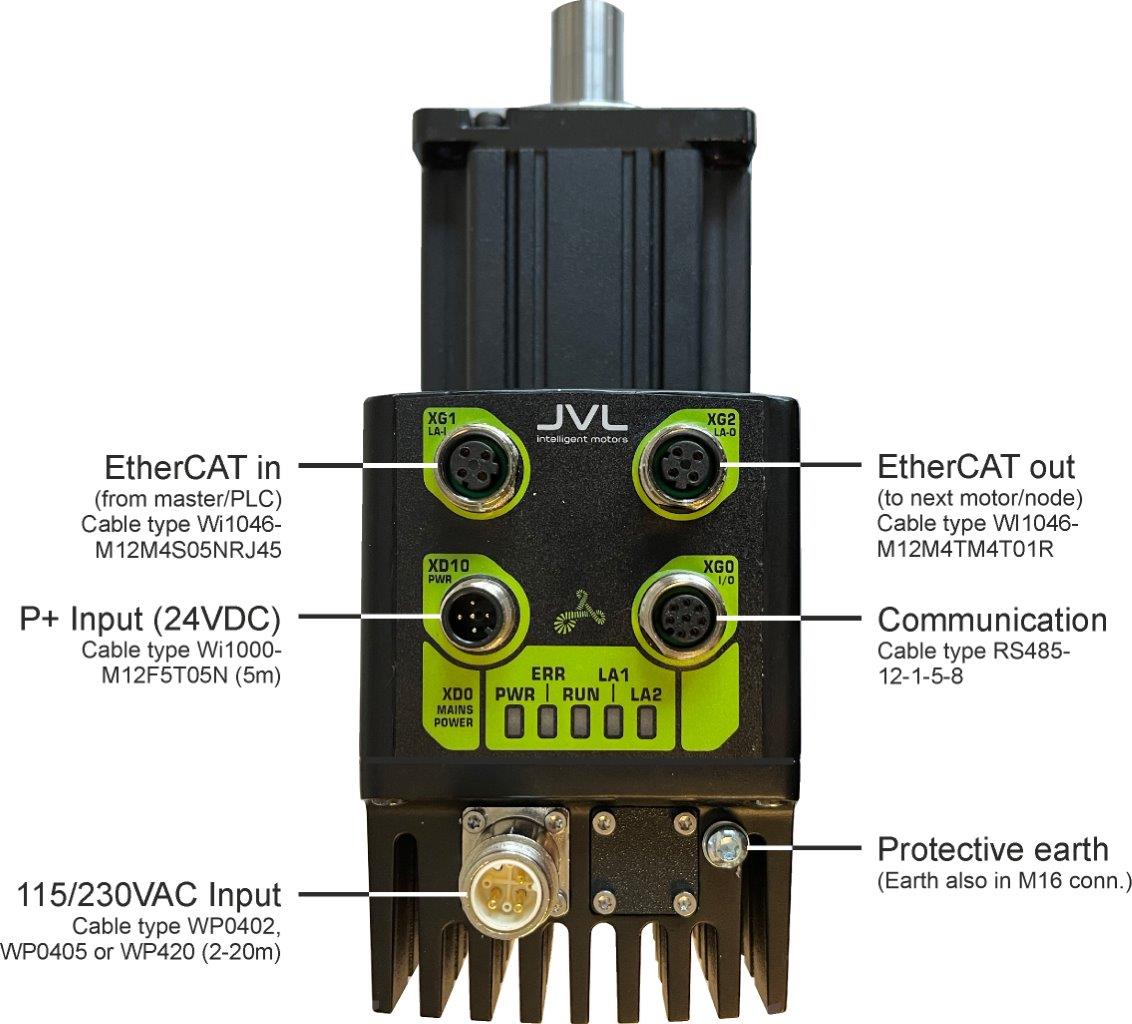

Required: RS232-M12-1-5-8 |
Commissioning
| Communication software | ||||
| MacTalk |
||||
 |
||||
|
|
Cables
| Power |
Ethernet |
Ethernet daisychain |
I/O |
USB to RS485 / RS422 / RS232 converter |
| WI1000-M12F5TxxN |
WI1046-M12M4TxxTRJ45 |
WI1046-M12M4TM4TxxT |
WI1009-M12M17TxxN |
RS485-USB-M12M5M8M17 |
 |
 |
 |
 |
 |
|
xx: available options are 05 and 20 (meter) |
xx: available options are 05 and 20 (meter) |
xx: available options are 05 and 20 (meter) |
For 17 pin connector |
For 8 Pin connector |
Power supply
| Switch Mode Power Supply [P+] |

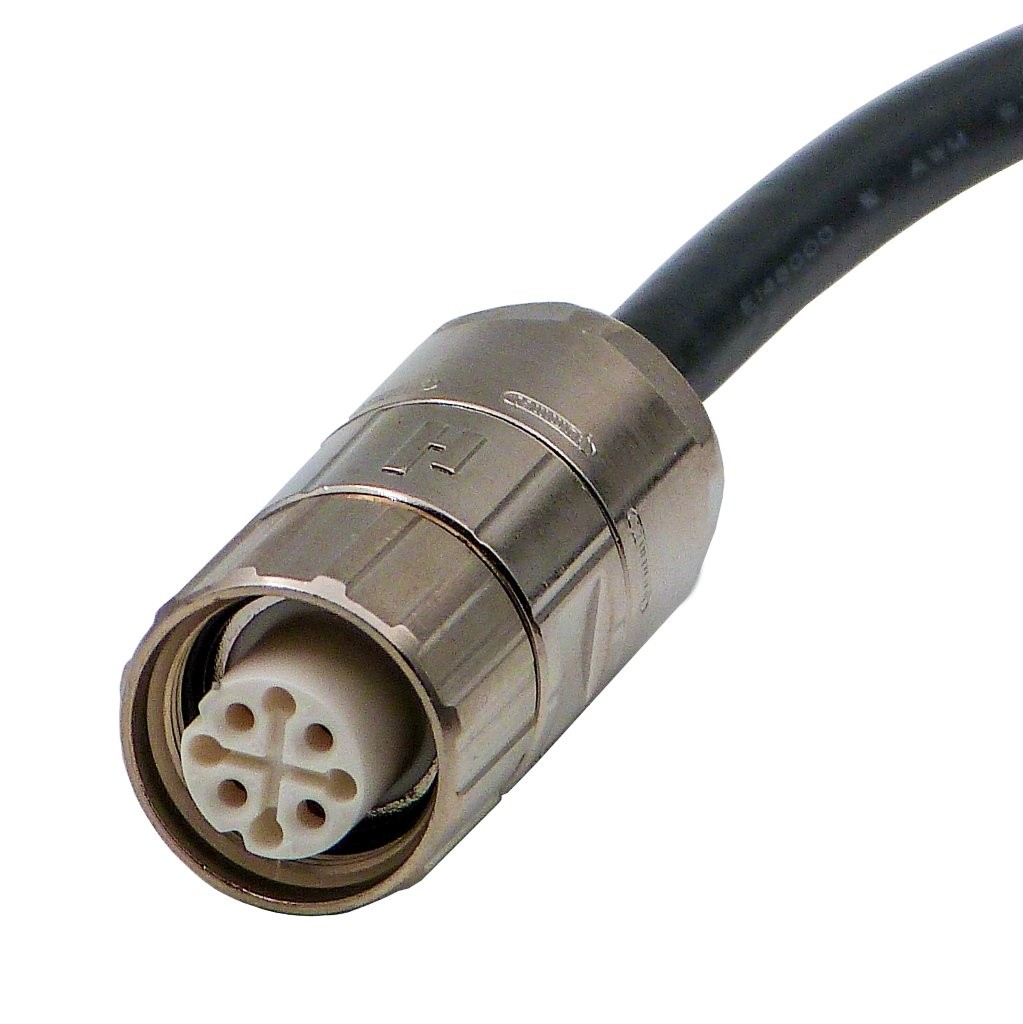

Power cable for M16 connector |

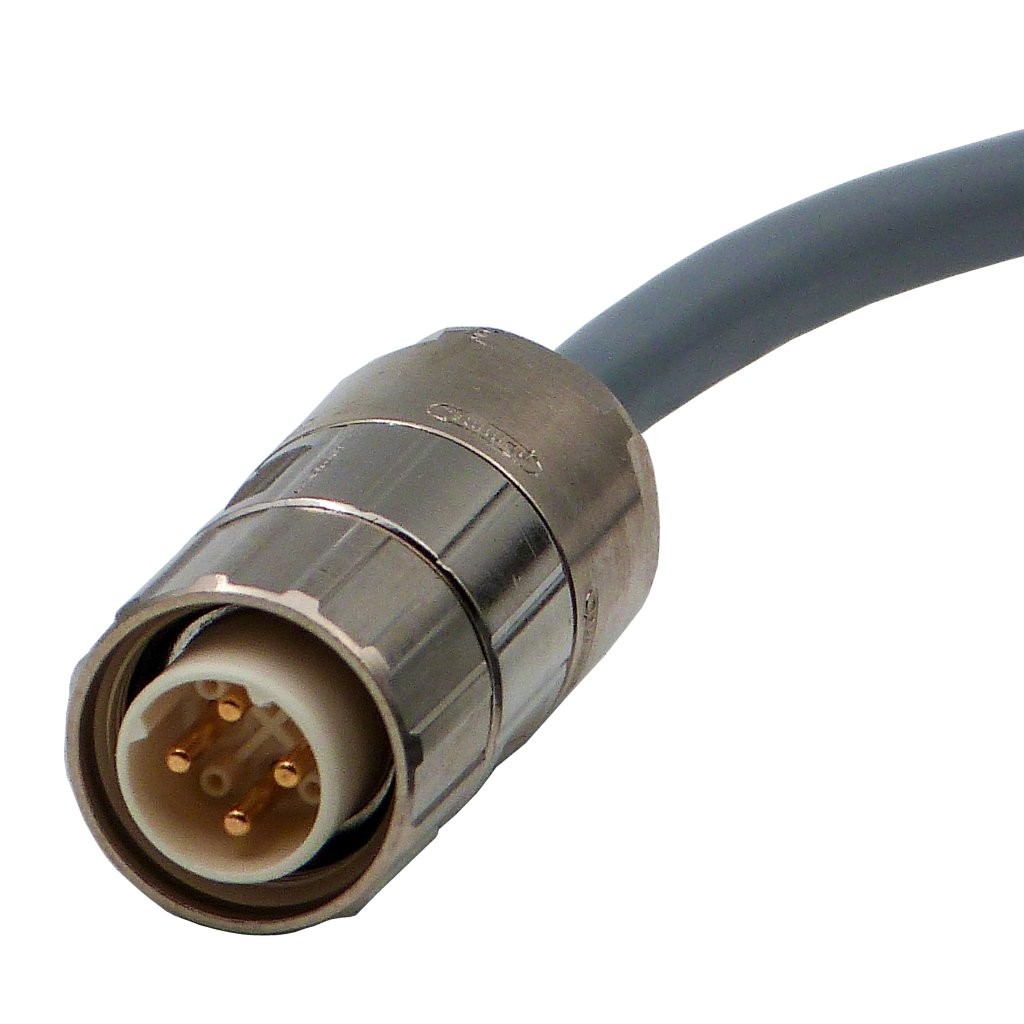

Power Dump cable for M16 connector |
||
| PSU024- 0120S1X2AAD1A |
WP04xx |
WP01xx |
||
 |
 |
|
||
|
|
xx: available options are 05 and 20 (meter) |
xx: available options are 05 and 20 (meter) |
|
DETAILED |
|
DOWNLOAD |
