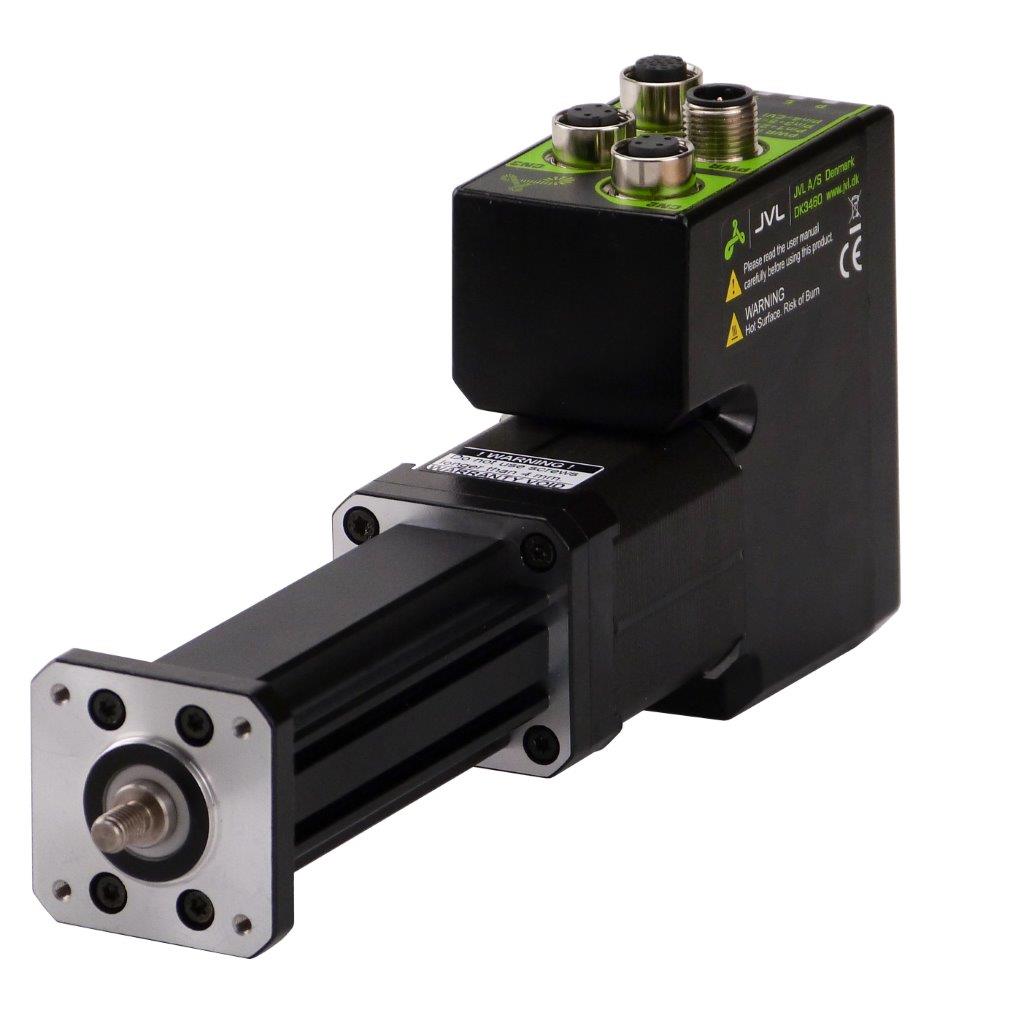

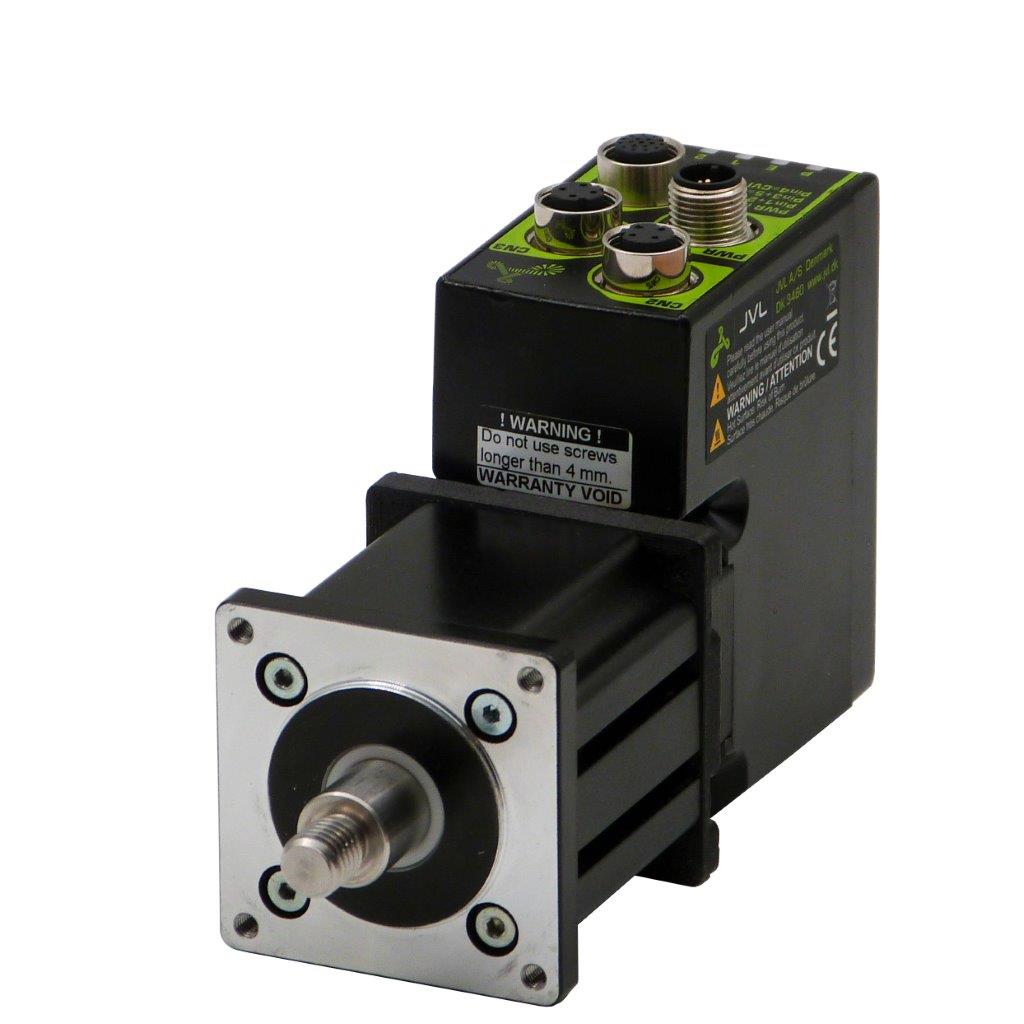

MIL17x/23x with ball screw piston rod actuator


Linear stepper motors can reduce cost and save space. There is no coupling, no additional bearing support and no assembly work required. This not only reduces the cost but also reduces the failure rate due to fewer components and a simpler construction. In applications with small load ratings a linear guide is not required. The special design and material of the nut enables long life operation.

Versions available
  • C7 Accuracy grade rolled ball screw
On request
  • Different shaft and stroke length
  • C0-5 high accuracy grade precision ball screw with low axial play motor
  • STO Connector









Part Number
Lead [mm/rev]
 Ca [Kgf]
 Coa [Kgf]
 Drawing
MIL171-176 with NEMA17 Actuator Housing
MIL17xSY2-xxxxxz
MIL17xQY2-xxxxxz 		1
 73
 121

MIL171-176 with NEMA23 Actuator Housing
MIL17xSZ2-xxxxxz
MIL17xQZ2-xxxxxz 		1
 93
 173

MIL17xSZK-xxxxxz
MIL17xQZK-xxxxxz 		2.5
 177
 278

MIL17xSZP-xxxxxz
MIL17xQZP-xxxxxz
4
 395
 590

MIL231-232 with NEMA23 Actuator Housing
MIL23xSZH-xxxxxz
MIL23xQZH-xxxxxz
2
185
 305

MIL23xSZH-xxxxxz
MIL23xQZH-xxxxxz
4
 395
 590

Ca: Basic Dynamic Rating Load (Kgf), Coa: Basic Static Rating Load (Kgf).

Order Code [z]
Travel Length [mm/inches]
 Length A
 Actuator Length

A
 12.7 / 0.5
 45.7 / 1.80
 57.7 / 2.27
B
 19.05 / 0.75
 52.05 / 2.05
 64.05 / 2.52
C
 25.4 / 1.0
 58.4 / 2.30
 70.4 / 2.77
D
 31.8 / 1.25
 64.8 / 2.55
 76.8 / 3.02
E
 38.1 / 1.50
 71.1 / 2.80
 83.1 / 3.27
F
 50.8 / 2.0
 83.8 / 3.30
 95.8 / 3.77
G
 63.5 / 2.5
 96.5 / 3.80
 108.5 / 4.27
L
 127 / 5.0
 160 / 6.30
 172.0 / 6.77


Motor Axial Play
 Screw accuracy grade C7
 Recommended Axial Load
 Max. Axial Load Co

MIL17
 ±0.1 mm
 ±50 µm / 300 mm
 174 N
MIL23
 ±0.1 mm
 ±50 µm / 300 mm

Recommended axial load is based on 5 years of runtime, 200 days / year, 6 hours / day and 10% duty cycle.

Motor Ball Bearing Axial Load
 La [N]
 Lifetime Revolutions
MIL171 - 176
80
 7,811,031,526
120
 2,314,379,711
140
 1,457,451,947
160
 976,378,941
180
 685,742,137
MIL231-232
600
 2,645,126,802
1400
 208,216,979
2500
 36,566,233
5000
 4,570,779
6500
 2,080,464
