IO-Link – for MAC motor® and ServoStep™
Integrated Servo and Stepper Motors
PRESS release: September 2021
Birkerød, Denmark - JVL A/S, one of the world’s leading producers in the field of integrated servo and stepper motors, can now deliver wireless Ethernet communication for all integrated stepper motors in their ServoStep™ series, from 0.3 to 25 Nm, sizes NEMA 17 to 43.
IO-Link is becoming increasingly popular as can be seen on the curve of installed nodes below.
JVL can now also connect to IO-Link via our new IO-Link gateway which can be used on both our MAC motor® integrated servo and ServoStep™ integrated stepper motors.
JVL can now also connect to IO-Link via our new IO-Link gateway which can be used on both our MAC motor® integrated servo and ServoStep™ integrated stepper motors.

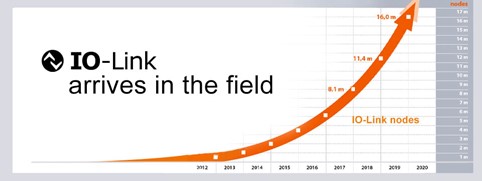

Number of installed IO-Link nodes world-wide

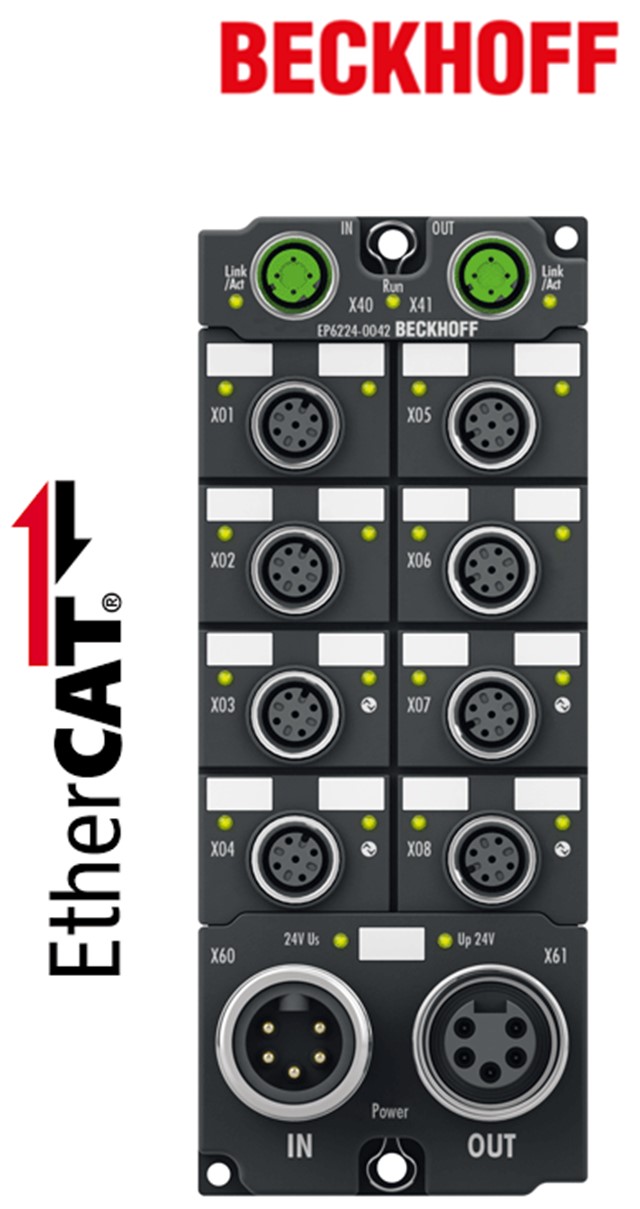

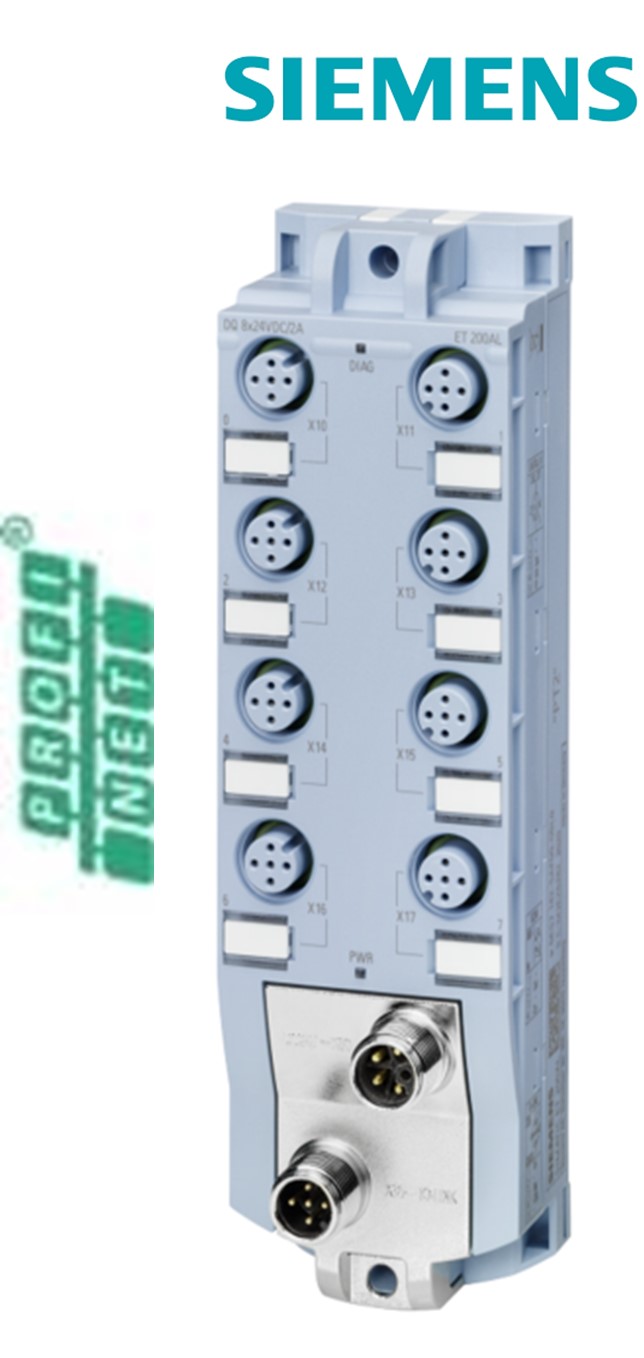

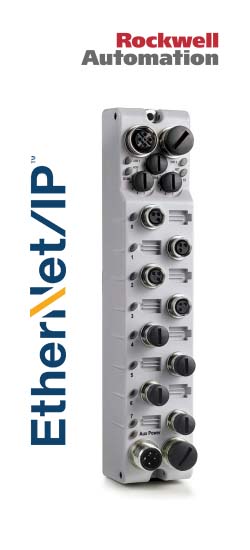

JVL’s IO-Link can be used on all platforms. Examples include Rockwell, Siemens and Beckhoff.
Save Cost – IO-Link vs Ethernet
Connect multiple JVL drives to an existing Ethernet based network?
Save between 10-15% in the investment costs when integrating JVL drives by using IO-Link instead of a traditional Ethernet based control network.
In many of the applications where JVL drives are used, the specific axis is used as a setup axis, only requiring a minimal bandwidth and no hard timing requirement.
By using IO-Link and the new JVL IO-Link gateway a JVL drive (servo or stepper) can be controlled directly from the PLC through an IO-Link Master.
This Master usually connects directly to the PLC via Ethernet.
Even though the IO-Link based JVL control never was intended to be used in hard timing restrained application, reaction times can be very low.
For the ServoStep™ integrated stepper motors as an added bonus up to 5 motors can be connected to one IO-Link gateway by utilizing multidrop topology on an internal JVL bus running between the motors.
All normal motion functions can be controlled through the IO-Link channel.
For the Rockwell environment AOI’s are supported.
For the Rockwell environment AOI’s are supported.
The JVL IO-Link Gateway
The JVL IO-Link gateway is placed inside a rugged metal tube.
2 LEDs indicate the current Link status.
The metal gateway screws directly into one of the M12 IO-connectors on the motor and an IO-Link cable is connected to the other end, that goes directly into the IO-Link master.
2 LEDs indicate the current Link status.
The metal gateway screws directly into one of the M12 IO-connectors on the motor and an IO-Link cable is connected to the other end, that goes directly into the IO-Link master.
The JVL Gateway is delivered with either 8, 12 or 17-pin connector depending on the type of JVL drive used.
For the MAC motor® integrated servo motor range a MAC00-B4 module is required for each motor. Observe that these drives require one IO-Link gateway per Drive.
For the ServoStep™ series, the Gateway tube connects directly to the 17-pin connector.
For the MAC motor® integrated servo motor range a MAC00-B4 module is required for each motor. Observe that these drives require one IO-Link gateway per Drive.
For the ServoStep™ series, the Gateway tube connects directly to the 17-pin connector.
1:1 Topology Rockwell example, one IO-Link gateway for each motor:
1:1 Point to Point IO-Link Parts numbers used:
Rockwell IO-Link master: Armorblock 1732E-8IOLM12R
JVL IO-Link Gateway metal tube used for different motor and module types:
| MAC motor® module | M12 | IO-Link item number |
| MAC00-B4 | 8-pin | WI1425M12M5TM8T501 |
| MAC00-B41 | 12-pin | WI1425M12M5TM12T201 |
| MAC00-Ex41 | 17-pin | WI1425M12M5TM17T201 |
| ServoStep™ type | M12 | IO-Link item number |
| MISxx_MILxx_SMC66/85 Point to point. Only -Q5- types |
17-pin | WI1425M12M5TM17T201 |
IO-Link cable 3 m: WI1000-M12M5TF5T03N
IO-Link cable 5 m: WI1000-M12M5TF5T05N
IO-Link cable 5 m: WI1000-M12M5TF5T05N
1:N Topology Rockwell example, 1-5 pcs ServoStep™ motors per IO-Link Multidrop channel.
OBS! Only Q9 type ServoStep™ motors are supported.
For the ServoStep™ integrated stepper motors as an added bonus up to 5 motors can be connected to one IO-Link gateway by utilizing multidrop topology on an internal JVL bus running between the motors.
JVL IO-Link Gateway metal tube: WI1425M12M5TM17T201
MIS/MIL motors type -Q9- with 17-pin M12 connector and 8-pin connector running RS422
IO-Link cable 3 m: WI1000-M12M5TF5T03N
IO-Link cable 5 m: WI1000-M12M5TF5T05N
RS422 COM cable between motors (1-20 m):
1 m: WI1012-M12F8TM17T01T
5 m: WI1012-M12F8TM17T05T
IO-Link cable 5 m: WI1000-M12M5TF5T05N
RS422 COM cable between motors (1-20 m):
1 m: WI1012-M12F8TM17T01T
5 m: WI1012-M12F8TM17T05T
| ServoStep™ type | M12 | IO-Link item number |
| MISxx_MILxx_SMC66/85 Multidrop. Only -Q9- types |
17-pin | WI1425M12M5TM17T201 + WI1012xx cable |
All-in-one unit
ServoStep™ has everything built-in including motor, encoder, drive electronics, control electronics with ePLC™ and optional Ethernet or CAN bus integrated into one compact unit. All major industrial Ethernet protocols like Profinet, EtherNet/IP, EtherCAT, SERCOS, ModbusTCP/UDP and Powerlink are available.
Options include: absolute multiturn encoders and STO (safe torque off, SIL3).
Also included are 8 I/O points which can be individually configured as digital input or output – or analogue input. The IOs can be used as local/remote IOs for the central PLC – or used together with the ePLC™ in stand-alone applications.
Options include: absolute multiturn encoders and STO (safe torque off, SIL3).
Also included are 8 I/O points which can be individually configured as digital input or output – or analogue input. The IOs can be used as local/remote IOs for the central PLC – or used together with the ePLC™ in stand-alone applications.
Read more about JVL´s ServoStep motors here: Integrated Stepper Motors
Read more about supported Industrial Ethernet protocols here: Industrial Ethernet for MIS
Read more about battery driven ServoStep motors here here: Battery for wireless ServoStep
For further information, please contact:
JVL A/S, Bregnerødvej 127, 3460 Birkerød, Denmark.
Tel. +45 4582 4440. E-mail: jvl@jvl.dk. Web:
www.jvl.dk
About JVL - JVL is a world leader within the development and production of efficient and compact integrated servo motors and integrated stepper motors. MAC motor® are a series of integrated brushless servo motors (up to 4500 W RMS and 13.5 kW peak) and ServoStep™ are a series of integrated stepper motors (up to 25 Nm). Both the servo motor and stepper motor series include motor, controller, ePLC™, encoder and bus system integrated into one compact unit. All industrial Ethernet protocols like Profinet, EtherNet/IP, EtherCAT, Sercos III, ModbusTCP and Powerlink are available.
Options include: absolute multiturn encoders, STO (safe torque off, SIL3) and brakes.
JVL has more than 30 years of motion control experience and are well known for their development and production of highly specialized integrated motors with industrial Ethernet and customized improvements. The close co-operation with customers and representatives results in cost-effective and technically optimized solutions for both basic and advanced motion control applications.
JVL's wide selection of quality products for motion control applications include: Integrated brushless Servo motors, Integrated Stepper motors, AC Servo motor controllers, Motor drivers (DC, AC and Steppers), Brakes, Gearboxes, Hollow Rotary Actuators and HMI touch panels.
Options include: absolute multiturn encoders, STO (safe torque off, SIL3) and brakes.
JVL has more than 30 years of motion control experience and are well known for their development and production of highly specialized integrated motors with industrial Ethernet and customized improvements. The close co-operation with customers and representatives results in cost-effective and technically optimized solutions for both basic and advanced motion control applications.
JVL's wide selection of quality products for motion control applications include: Integrated brushless Servo motors, Integrated Stepper motors, AC Servo motor controllers, Motor drivers (DC, AC and Steppers), Brakes, Gearboxes, Hollow Rotary Actuators and HMI touch panels.
