New Junction Boxes for Easy Connection of
M8 I/O sensors
PRESS release: November 2019
Birkerød, Denmark - JVL A/S, one of the world’s leading producers in the field of integrated servo and stepper motors, has expanded their range of plug and play junction boxes. Just connect the junction box to your integrated servo or stepper motor and up to 8 local I/O’s are available with 24VDC supply. I/O’s like limit switch or home sensor can be read or set from ePLC program or via Industrial Ethernet.
Easy!
Connect sensors directly to your JVL motor.
Cost saving!
If your motor is with Ethernet use the motor as gateway and save a separate I/O distribution line.
If your motor is with Ethernet use the motor as gateway and save a separate I/O distribution line.
Fast!
Use sensors with M8 connectors for fast commissioning compared to lead wires.
Use sensors with M8 connectors for fast commissioning compared to lead wires.
Easy Connection of Sensors and other I/O’s
JVL has just launched two new junction boxes for easy connection of sensors and other I/Os using standard M8-3pin connectors.
JVL has just launched two new junction boxes for easy connection of sensors and other I/Os using standard M8-3pin connectors.

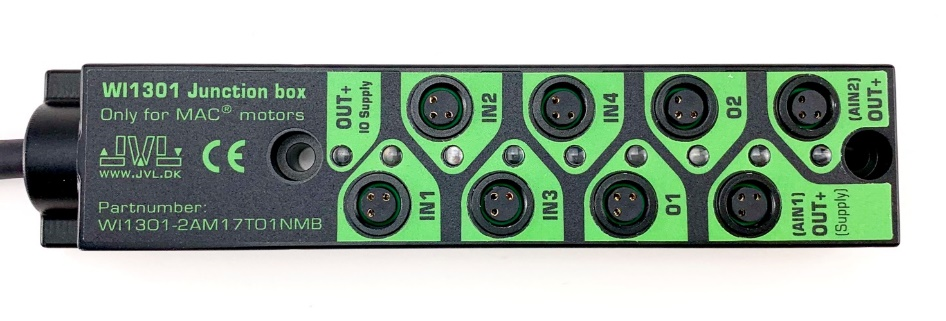

MAC motor® and extended Ethernet modules – use WI1301
WI1301-2AM17T01NMB offers easy connection of standard 3-pin M8 connectors. All the 8 I/O’s are available on separate M8 connectors, making it extremely easy to integrate and connect JVL MAC motor®s into any machine.
WI1301 has kept the two isolation groups of the MAC00-Ex41 isolated.
WI1301-2AM17T01NMB offers easy connection of standard 3-pin M8 connectors. All the 8 I/O’s are available on separate M8 connectors, making it extremely easy to integrate and connect JVL MAC motor®s into any machine.
WI1301 has kept the two isolation groups of the MAC00-Ex41 isolated.

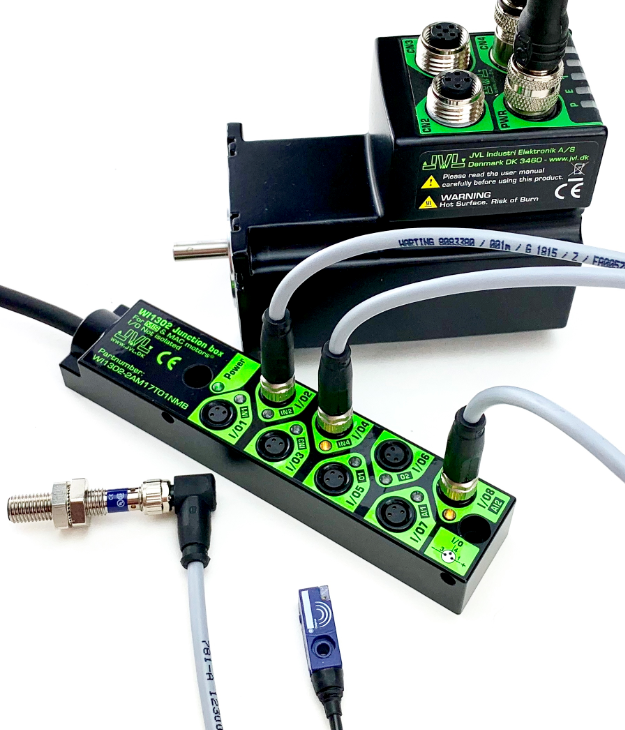

ServoStep® - use WI1302
WI1302-2AM17T01NMB is mainly for MIS motors, and offers easy connection of standard 3 pin M8 sensor connectors. All 8 I/O’s are available on each their own M8 connector, making it extremely easy to integrate and connect JVL MIS motors into any machine.
WI1302-2AM17T01NMB is mainly for MIS motors, and offers easy connection of standard 3 pin M8 sensor connectors. All 8 I/O’s are available on each their own M8 connector, making it extremely easy to integrate and connect JVL MIS motors into any machine.
Functionality in general
The two new WI130x boxes are designed to do the same – make it easy to integrate any standard equipment with JVL motor.
The junction box can be connected to JVL motors with the 17 pin multifunction connector, making it extremely easy to use the digital in and outputs and analogue inputs as well, with standard equipment using 3 pin M8 connectors.
The box is IP67 rated, and can be mounted in almost any environment.
The two new WI130x boxes are designed to do the same – make it easy to integrate any standard equipment with JVL motor.
The junction box can be connected to JVL motors with the 17 pin multifunction connector, making it extremely easy to use the digital in and outputs and analogue inputs as well, with standard equipment using 3 pin M8 connectors.
The box is IP67 rated, and can be mounted in almost any environment.
Details
- M12 17-pin male connector for connection to MAC motor® or ServoStep®
- 1 meter shielded cable
- 8 x M8 3-pin female connectors
- IP67 rated
- Built-in LED’s for easy monitoring of I/O state and power
- Multiple mounting options
Read more about Ethernet for Integrated Stepper Motors
Read more about Ethernet for Integrated Servo Motors
Read more about Ethernet for Integrated Servo Motors
For further information, please contact:
JVL A/S, Bregnerødvej 127, 3460 Birkerød, Denmark.
Tel. +45 4582 4440. E-mail: jvl@jvl.dk. Web:
www.jvl.dk
About JVL - JVL is a world leader within the development and production of efficient and compact integrated servo motors and integrated stepper motors. MAC motor® are a series of integrated brushless servo motors (up to 4500 W and 13.5 kW peak) and ServoStep® are a series of integrated stepper motors (up to 25 Nm). Both the servo motor and stepper motor series include motor, controller, ePLC, encoder and bus system integrated into one compact unit. All industrial Ethernet protocols like Profinet, EtherNet/IP, EtherCAT, Sercos III, ModbusTCP and Powerlink are available.
Options include: absolute multiturn encoders, STO (safe torque off, SIL3) and brakes.
JVL has more than 25 years of motion control experience and are well known for their development and production of highly specialized integrated motors with industrial Ethernet and customized improvements. The close co-operation with customers and representatives result in cost-effective and technical optimized solutions for both basic and advanced motion control applications.
JVL's wide selection of quality products for motion control applications include: Integrated brushless Servo motors, Integrated Stepper motors, AC Servo motor controllers, Motor drivers (DC, AC and Steppers), Brakes, Gearboxes, Hollow Rotary Actuators and HMI touch panels.
Options include: absolute multiturn encoders, STO (safe torque off, SIL3) and brakes.
JVL has more than 25 years of motion control experience and are well known for their development and production of highly specialized integrated motors with industrial Ethernet and customized improvements. The close co-operation with customers and representatives result in cost-effective and technical optimized solutions for both basic and advanced motion control applications.
JVL's wide selection of quality products for motion control applications include: Integrated brushless Servo motors, Integrated Stepper motors, AC Servo motor controllers, Motor drivers (DC, AC and Steppers), Brakes, Gearboxes, Hollow Rotary Actuators and HMI touch panels.
