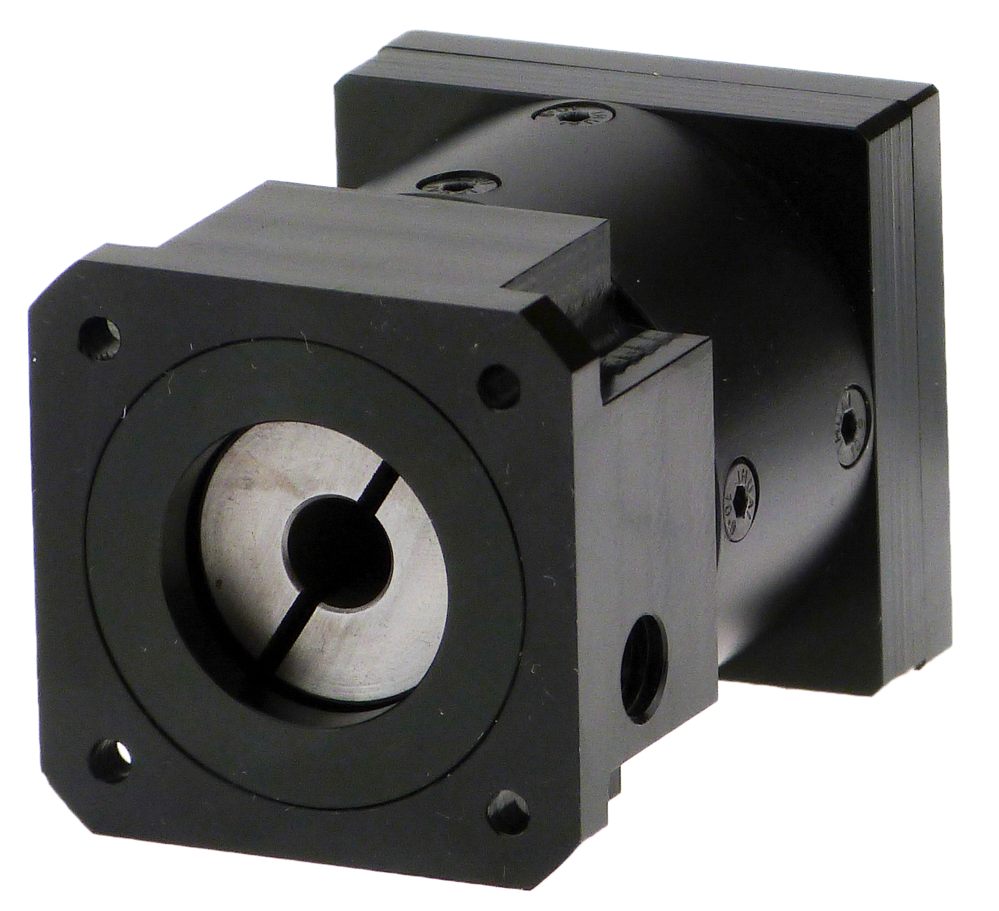

HSHG Gear for Nema17 Motors
|
Double front flange for optional mounting. Motor flange and front flange is black oxidation. Ring body is spray plastic painting.
Benefit of the the HSHG gear is the output flange is the same size as the input flange, making it possible to easily attach another gear, or brake.
Also the detachable output shaft makes it so the customer can use his own shaft.
|
 |
 |
 |
 |
|
 |
|||||
 |
|||||
Gears
| Part number |
Rated Output Torque [Nm]/
(Oz-In) |
Input Shaft Diameter [mm]/
(inch) |
Output Shaft Diameter [mm]/
(inch) |
Protection class |
Lenght [mm]/
(inch)
|
Drawing | Photo |
| HSHG17M004MHN17008M Ratio 4:1, 1 stage |
10 (1416.12) |
8 (0.31) |
10 (0.39) |
IP42 |
61 (2.40) |
Link | |
| HSHG17M008MHN17008M Ratio 8:1, 1 stage |
5 (708.06) |
8 (0.31) |
10 (0.39) |
IP42 |
61 (2.40) |
Link |
|

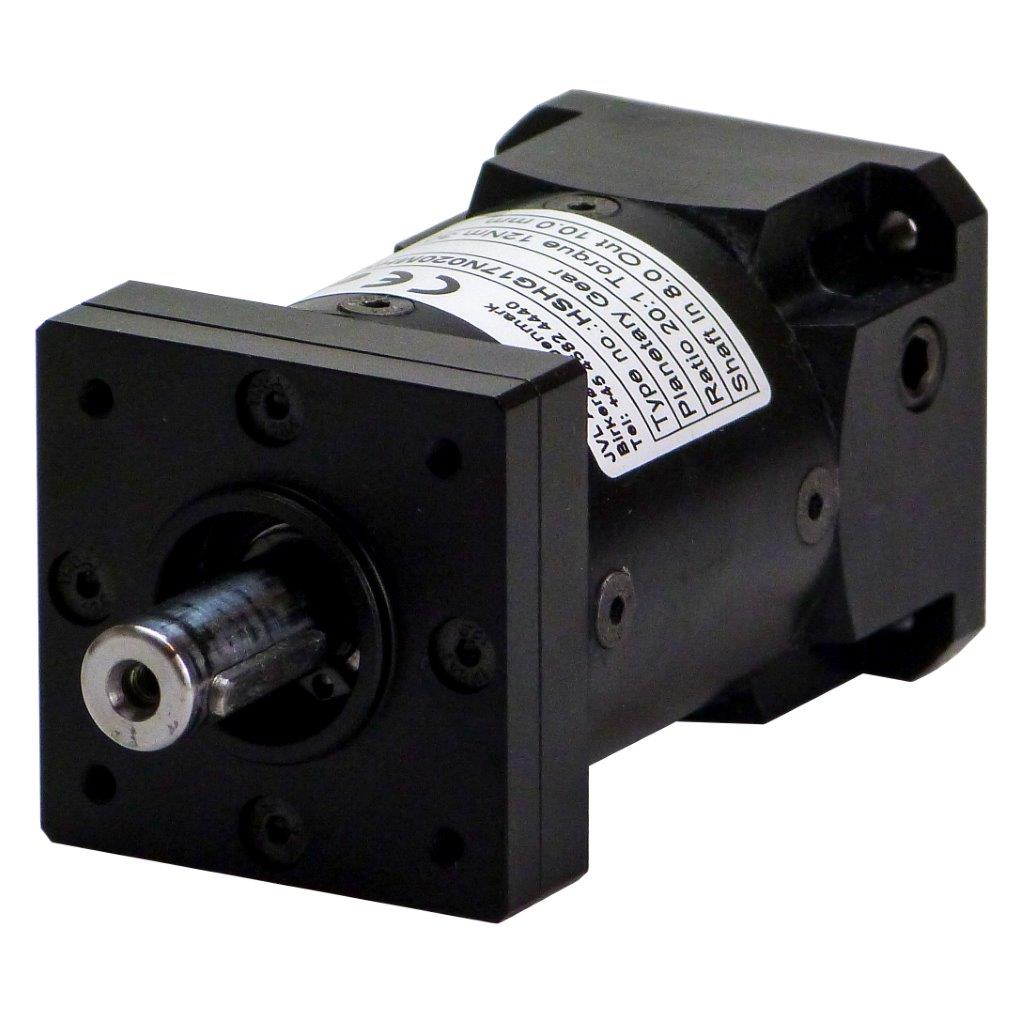

| HSHG17N020MHN17008M Ratio 20:1, 2 stage |
12 (1699.34) |
8 (0.31) |
10 (0.39) |
IP42 | 73 (2.87) |
Link |
 |
Gears with Hollow shaft - Input flange NEMA17 for standard MIS17 motors
| Part number |
Rated Output Torque [Nm]/
(Oz-In) |
Input Shaft Diameter [mm]/
(inch) |
Output Shaft Diameter [mm]/
(inch) |
Protection class |
[mm]/
(inch)
|
Drawing | Photo |
|
HSHG05M004MHH17X5_39 Ratio 4:1, 1 stage |
10 (1416.12) |
8 (0.31) |
8 (0.31) |
IP42 |
57 (2.24) |
Link | |
|
HSHG05M010MHH17X5_39 Ratio 10:1, 1 stage |
4 (566.44) |
8 (0.31) |
8 (0.31) |
IP42 |
57 (2.24) |
Link |
|
|
HSHG05N020MHH17X5_39 Ratio 20:1, 2 stage |
12 (1699.34) |
8 (0.31) |
8 (0.31) |
IP42 |
69 (2.72) |
Link |
|
Gears with Hollow shaft - Input flange NEMA17 for 9mm motor shaft length
| Part number |
Rated Output Torque [Nm]/
(Oz-In) |
Input Shaft Diameter [mm]/
(inch) |
Output Shaft Diameter [mm]/
(inch) |
Protection class |
[mm]/
(inch)
|
Drawing | Photo |
|
HSHG05M010MHH17X8_39 Ratio 10:1, 1 stage |
4 (566.44) |
5 (0.19) |
8 (0.31) |
IP42 |
40 (1.57) |
Link | |
|
HSHG05N020MHH17X8_39 Ratio 20:1, 2 stage |
12 (1699.34) |
5 (0.19) |
8 (0.31) |
IP42 |
52 (2.04) |
Link |
|
|
HSHG05N040MHH17X8_39 Ratio 40:1, 2 stage |
9 (1274.50) |
5 (0.19) |
8 (0.31) |
IP42 |
52 (2.04) |
Link |
|
Sleeves / Bushings
| Part number | Length [mm]/(inch) | Inner Diameter [mm]/(inch) |
Outer Diameter [mm]/(inch) |
Drawing | Photo |
| HSHS17G08M-M05M | 18 (0.71) |
5 (0.19) |
8 (0.31) |
Link |
  |
| HSHS17G08M-M06J | 18 (0.71) |
6.35 (0.25) |
8 (0.31) |
Link |
|
| HSHS17G06J-M05M | 18 (0.71) |
5 (0.19) |
6.35 (0.25) |
Link |
|
|
