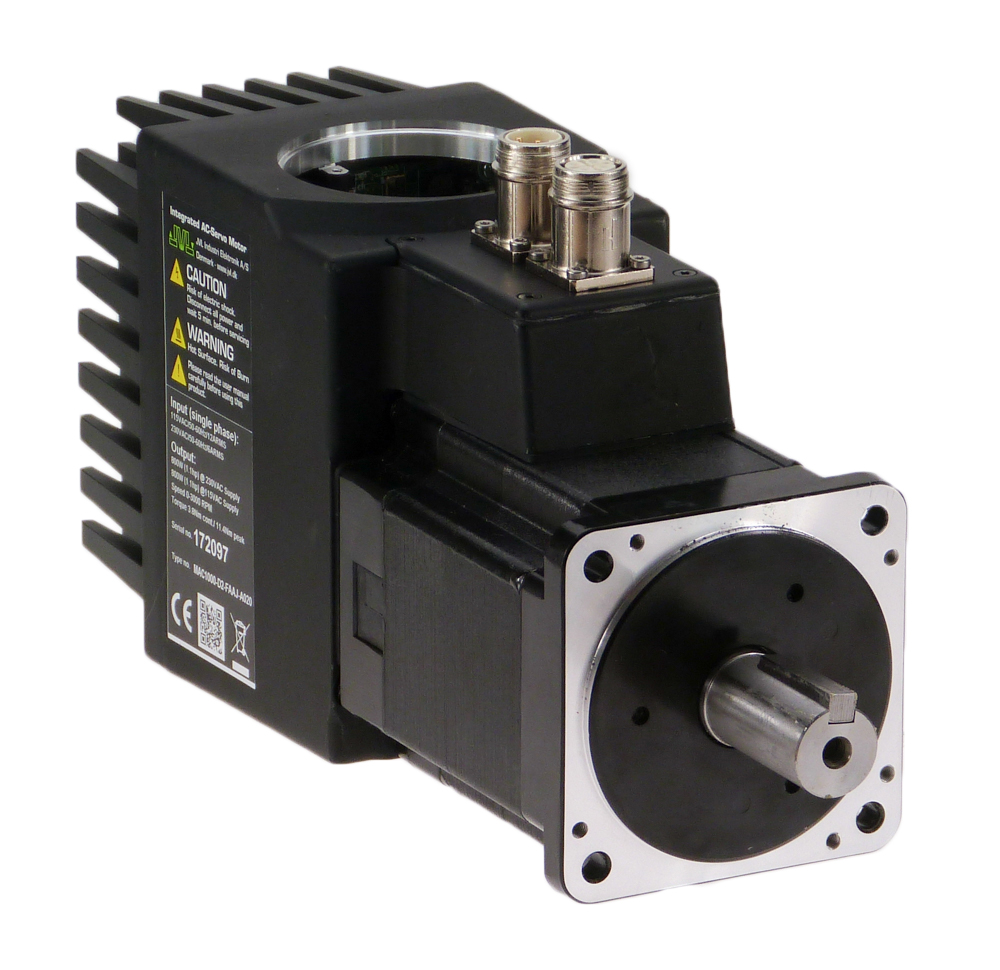

MAC1200 - Integrated Servo motor



MAC1200 - The complete solution for medium power ratings.

With built-in mains power supply.
Choose between model with or without brake.
Also in IP66 version.
Choose Expansion module from the extensive selection for any application.

Motor size is:
  • MAC1200-D2 1182W
  • MAC1200-D5 (with built-in brake) 1182W
New features:
  • Absolute multiturn encoder without battery
  • Real-time industrial Ethernet: Profinet, Ethernet/IP, MODBUS TCP, EtherCAT, Powerlink and SercosIII
  • 2 RS422 channels for encoder in/output and SSI encoder etc.
  • 6IO for capture of position, interrupt, counters, enable, timer and PLC functions


Expansion module you can choose between:
  • Basic Modules
  • Programmable Modules
  • Field Bus Modules
  • High Speed Multi-Axis Modules
  • Wireless Modules
See the ACCESSORIES, GEARS, and POWER SUPPLIES for further possibilities.


MAC1200 with cooling fan (only IP55)
Part number
Speed
[RPM]**
Duty
cycle
Length [mm]
Rated Torque [Nm]*
Peak Torque [Nm]*
Torque vs Speed curve

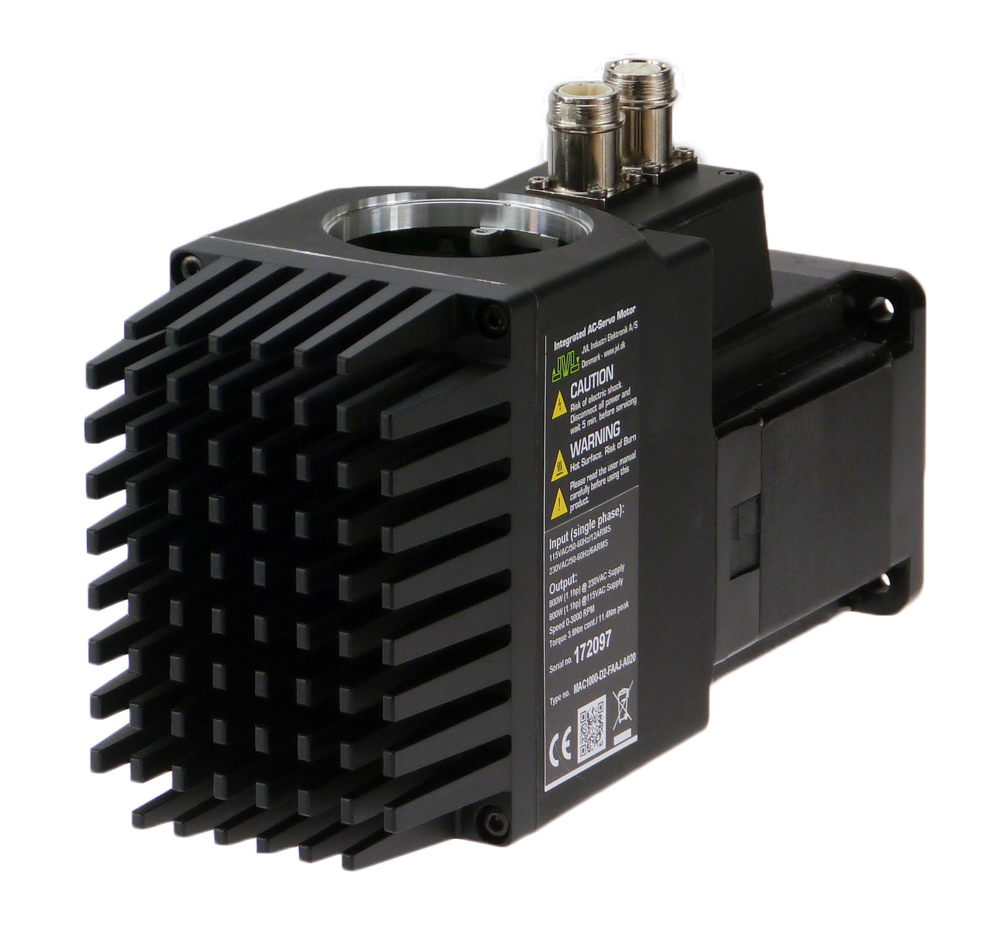

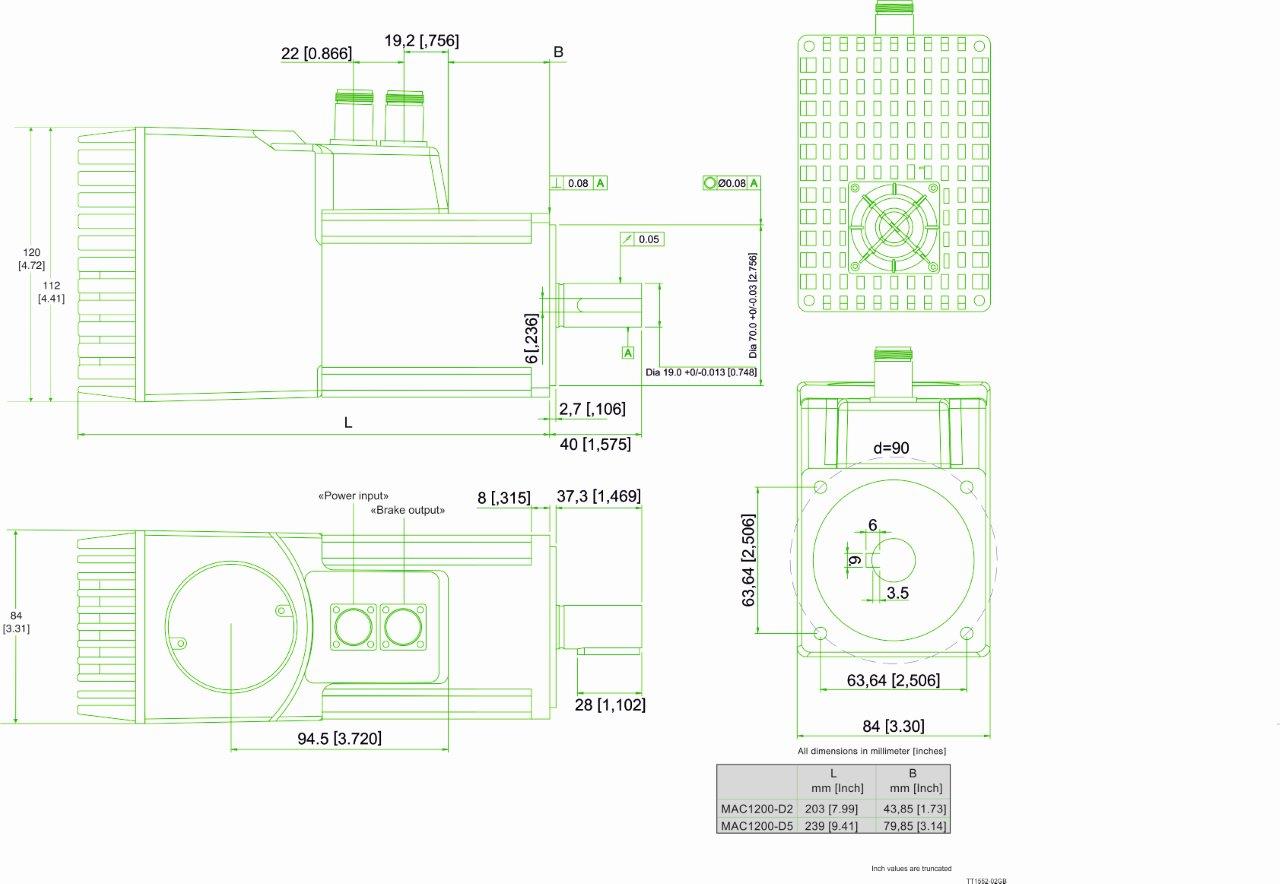

MAC1200-D2-xAAJ
IP55 fan
0-3000 100% 203 3.82
11.46
MAC1200-D5-xAAJ
brake IP55 fan
0-3000 100% 239 3.82
11.46
*: Ta=40 °C

MAC1200 with cooling fins (IP55 and IP66)
Part number
Speed
[RPM]**
Duty
cycle
Length [mm]
Rated Torque [Nm]*
Peak Torque [Nm]*
Torque vs Speed curve

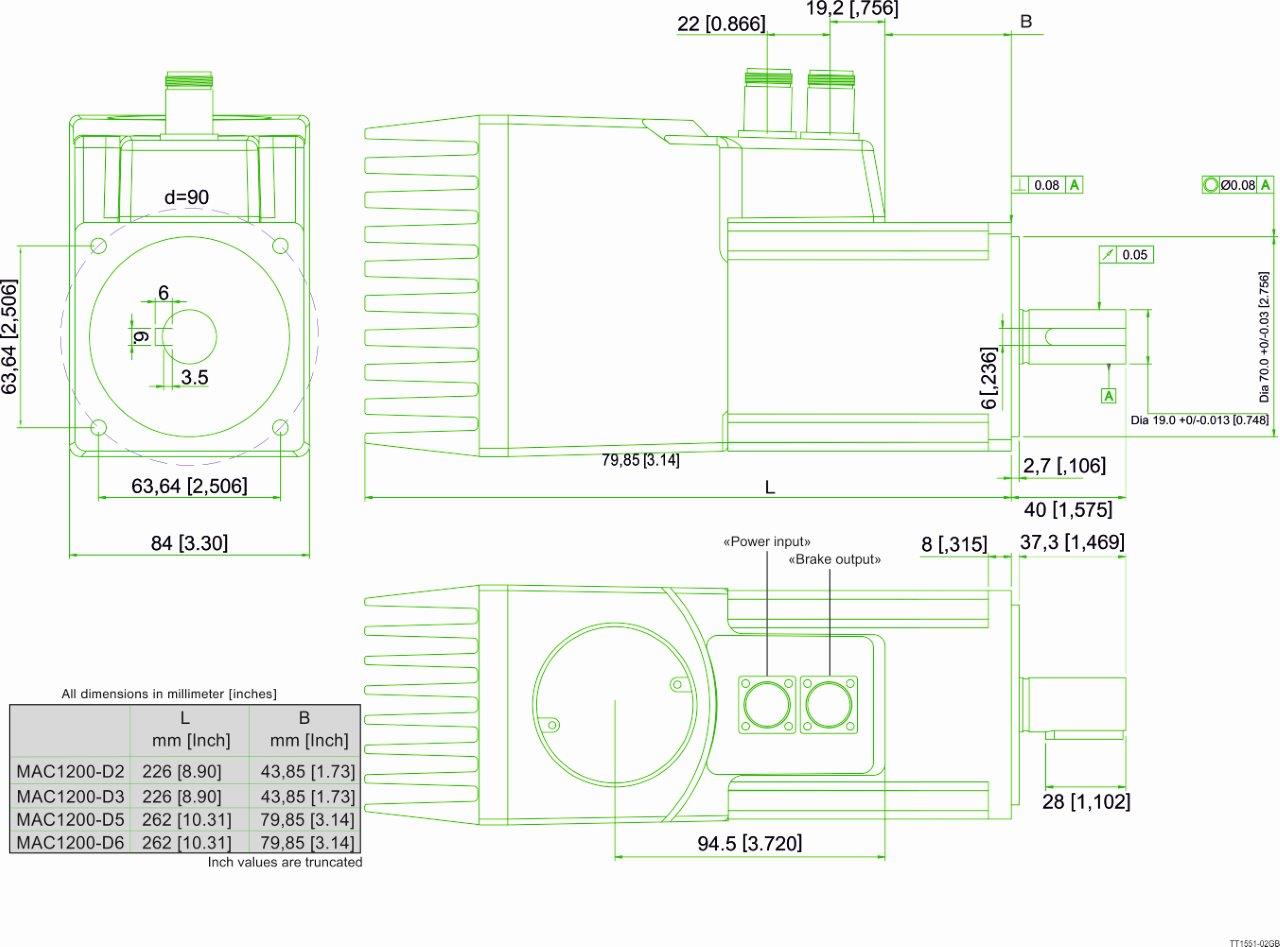

MAC1200-D2-xAJJ
IP55 long fins
0-3000 83% 226 3.82
11.46

MAC1200-D3-xAJJ
IP66 long fins
0-3000 83% 226 3.82
11.46
MAC1200-D5-xAJJ
brake IP55 long fins
0-3000 83% 262 3.82
11.46
MAC1200-D6-xAJJ
brake IP66 long fins
0-3000
83% 262 3.82
11.46
*: Ta=40 °C

MAC1200 with cooling fan

MAC1200 with cooling fins






(download)

(download)

Technical data
Supply voltage ±10%
115/230/240 VAC
Speed range (nominal)
0-3000
Rated power @3000 RPM with fan
1182 W
Rated power @3000 RPM with fins
1000 W
Rotor inertia without brake
1.6 kgcm2
Rotor inertia with brake
1.9 kgcm2
Encoder resolution (inc) (MAC1200-Dx-Bxxx)
8000 CPR
Absolute encoder (single/turns) (MAC1200-Dx-Fxxx)
8192 CPR*/ 4096 Rev.
Weight without brake
4.01 kg
Weight with brake
5.05 kg
Temperature trip level 84 °C
Ambient temperature 0-40 °C
*Default. Can be rescaled to 8000 CPR/Rev.



DETAILED





DOWNLOAD
