Teflon sealing for IP65+ motors
|

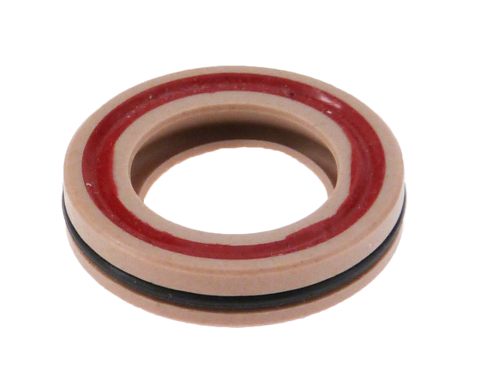

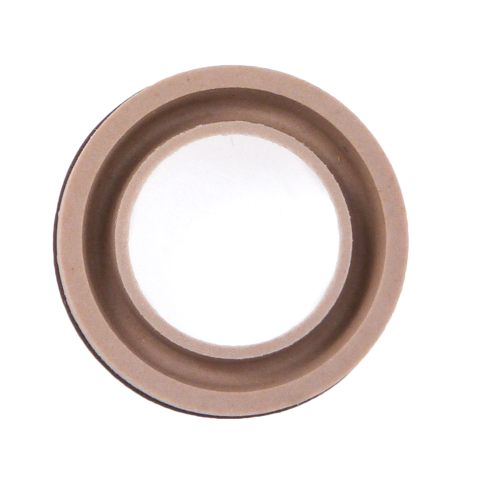

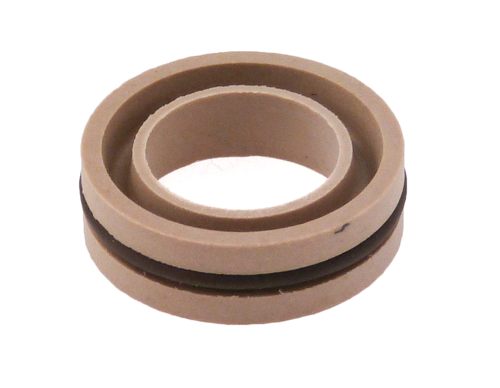

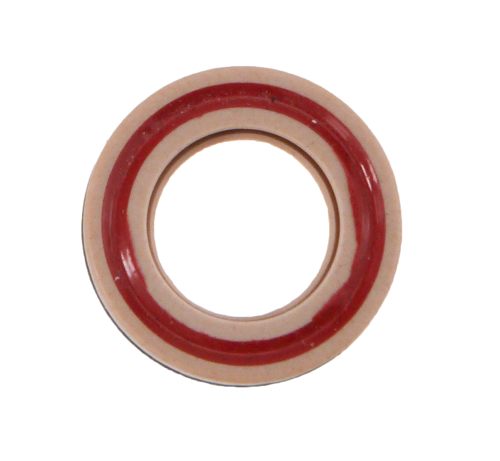

JVL motor with high IP protection IP65,66 and 67 use special shaft sealing that don’t need lubrication and have very low friction. Most sealings have also a stainless steel spring that secure constant pressure on the shaft to avoid dust or water intrusion. JVL do normally use single lip seal sealings but can for extreme application like IP69K use special sealing with double lip sealings
Notice that sealing is a one-time mounting sealing and should not be removed or reused. If motor is disassembled should new sealing be mounted. Ask JVL for spare part and mounting instruction
Optional can a FDA approved sealing be used. Only difference between our standard sealing and FDA sealing is the O-ring that isn’t FDA approved.
Certificate of complians can be found here.
 |
|
 |
 |
 |
 |
|
 |
||||||
| CH No. |
CH 479 |
| Basic elastromere |
PTFE with LCP |
| Colour |
Beige |
| Temperature range |
Service Temperature range from -200°C to +260° |
| Approvals |
- |
| TYPICAL PROPERTIES |
|||
| Properties |
Unit |
Value |
Testing methods |
| Hardness |
Shore D |
≥ 55 | ASTM D2240 |
| Density |
g/cm3 |
1,92 - 2,06 | ASTM D792 |
| Tensile strength |
N/mm2 |
≥ 14 | ISO 12086 - ISO 527 |
| Elongation at Break |
% |
≥ 220 | ISO 12086 - ISO 527 |
| Compressive strength at 1% deformation |
N/mm2 |
5-7 | ASTM D695 |
| Deformation under load at room temp. 24 hours at 13,7 N/mm2 |
% |
≤ 13 | ASTM D621 |
| Permanent deformation as above after releasing of 24 hours at room temp. |
% |
≤ 9 | ASTM D621 |
| TRIBOLOGICAL PROPERTIES |
|||
| Properties |
Unit |
Value |
Testing methods |
| Dynamic coefficient of friction |
- |
0,10 - 0,20 |
ASTM D1894 ASTM D3702 |
| Wear factor K |
- |
0,011 - 0,018 | ASTM D3702 |
| THERMAL PROPERTIES |
|||
| Properties |
Unit |
Value |
Testing methods |
| Thermal expansion coefficent (linear) 25-100°C |
10-5 |
9 - 12 |
Similar to ASTM D696 |
