Integrated Servo Motors in Stainless Steel IP67
PRESS release: November 2017.
JVL now offers its world famous integrated Servo motor MAC141 in a totally
stainless steel version especially for the food and medical industry
Birkerød, Denmark - JVL Industri Elektronik A/S, one of the world’s leading producers in the field of integrated servo and stepper motors now offers its world famous
integrated servo motors MAC140
and MAC141 in totally stainless steel
versions especially for the food and
medico industry.

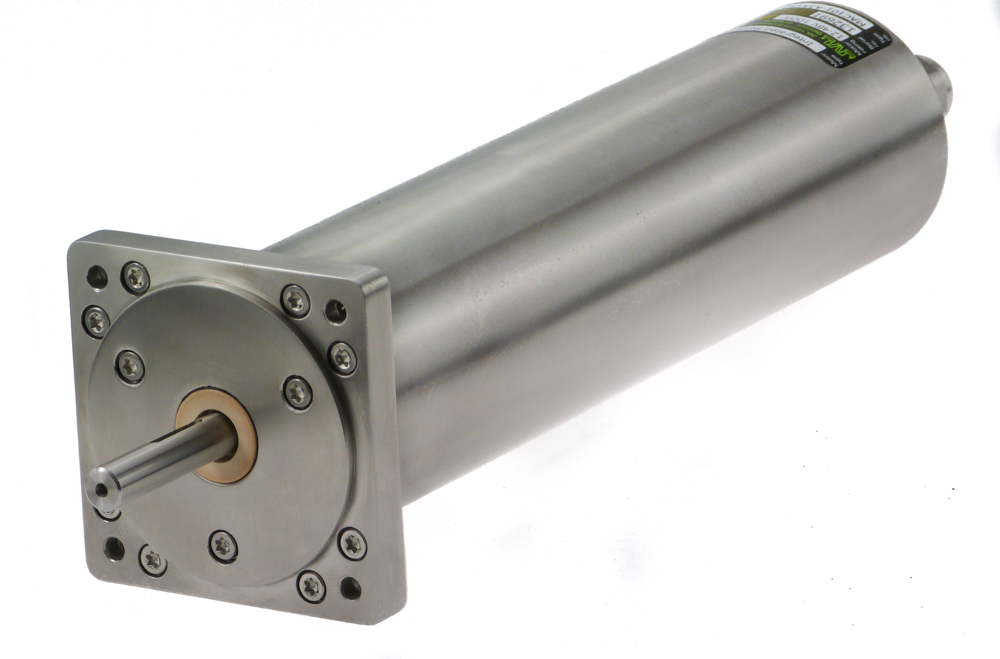

These stainless steel motors are designed
with IP67 protection and can
withstand high pressure wash down
conditions. JVL stainless steel servo
motors are designed to be a durable
solution for long time operation. The
concept is based on a stainless steel
tube with integrated rear end and a
fully sealed stainless steel front flange.
The motor used is a special version
of the 134 W MAC140 and 141 with
stainless steel shaft.
Since stainless steel has a high
thermal resistance, the MAC140..141
is downgraded to 100 W when used in
the stainless steel tube.
For MAC141 the continuous power
rating of 100 W corresponds to e.g.
0.35 Nm at full speed (2.700 RPM) or
0.48 Nm (peak torque) at 2.000 RPM.
Over shorter time periods it is still
possible to make use of both the peak
torque and maximum speed. Similarly to the non-stainless steel
versions, the MAC motors will protect
themselves and shut down if the temperature
becomes too high.
• 100% stainless steel shaft, flange and tube• Special Teflon sealing for long lasting watertight operation• Cost-effective in harsh, wet and corrosive environment• Ideal for food processing, liquid, pharmaceutical, wash down, chemical industries,bakery and beverage machinery and many more• Shaft seal and leak-proof cable entry provide waterproof sealings in both ends• Brushless servo motor: choose between 0.32/0.9 Nm, @up to 4000RPM or 0.48/1.59Nm @up to 2700 RPM (RMS/peak torque)• Stainless steel IP67 cable glands are standard• Integrated encoder as well as driver and controller electronics• Option for built-in planetary gearbox with ratios 3:1 to 216:1• Option for built-in PLC, RS232/485, Profibus, CANbus, Devicenet, or industrialEthernet (EtherCAT, EtherNet/IP, Profinet, Modbus TCP, Sercos III and more)
These stainless steel motors are designed to handle IP67 and withstand high pressure wash
down conditions. JVL stainless steel servo motors are designed to be a durable solution for
long time operation. The concept is based on a totally sealed stainless steel tube with front
flange and rear cover also in stainless steel. It can be delivered with a built-in planetary gear
box in ratios from 3:1…216:1.
Read more about the Stainless Steel motor here.
For further information, please contact:
JVL Industri Elektronik A/S, Bregnerødvej 127, DK-3460 Birkerød, Denmark, Tel. +45 4582 4440, E-mail: jvlnyt@jvl.dk, Web: www.jvl.dk
About JVL - JVL is a world leader within the development and production of efficient and compact integrated servo motors and integrated stepper motors. MAC motor® is a series of integrated brushless servo motors (up to 4500 W and 13.5 kW peak) and ServoStep is a series of integrated stepper motors (up to 25 Nm). Both the servo motor and stepper motor series include motor, controller, Nano-PLC, encoder and bus system integrated into one compact unit. All industrial Ethernet protocols like Profinet, EtherNet/IP, EtherCAT, Sercos III, ModbusTCP and Powerlink are available.
JVL has more than 25 years of motion control experience and is well known for its development and production of highly specialized integrated motors with industrial Ethernet and customized improvements. The close co-operation with customers and representatives results in cost-effective and technical optimized solutions for both basic and advanced motion control applications.
JVL's wide selection of quality products for motion control applications include: Integrated brushless Servo motors, Integrated Stepper motors, AC Servo motor controllers, Motor drivers (DC, AC and Steppers), Brakes, Gearboxes and HMI touch panels.
JVL has more than 25 years of motion control experience and is well known for its development and production of highly specialized integrated motors with industrial Ethernet and customized improvements. The close co-operation with customers and representatives results in cost-effective and technical optimized solutions for both basic and advanced motion control applications.
JVL's wide selection of quality products for motion control applications include: Integrated brushless Servo motors, Integrated Stepper motors, AC Servo motor controllers, Motor drivers (DC, AC and Steppers), Brakes, Gearboxes and HMI touch panels.
