Worlds Most Compact 1500 W Integrated Servo Motor
PRESS release: Aug. 2015.
Birkerød, Denmark--JVL presents a new AC Servo
Motor with built-in controller, Nano-PLC and direct AC mains supply with same
capacity and length as traditional servo motors.
JVL, the European
leader in the development of integrated servo and stepper motor technology, has
now again developed a new and unique product in the field of integrated motor
control.
JVL’s newest
additions to their portfolio is a complete, high-capacity MAC motor®with
rating of 1500W.
New Compact Motor
The MAC motor®sets completely new
standards for the performance and size of servo controls.With a length of
only 182mm for a 1500W motor with a torque of 4.78/14.3 Nm at 3000rpm, this MAC
motor matches the size of traditional servo motors without built-in controllers
with flange 130x130mm. This has only been possible through the use of extremely
compact motors and the development of electronics and mechanics that utilise
the latest technologies and manufacturing methods.
So what about
vibrations and temperature? As with the other integrated servo motors in the
range (50-4500W), both the motor and all electronic components have been
specifically selected to withstand the rigorous demands required by industrial
use.
Power Supply and
Energy Savings
Powering this
motor is easy since it only requires connection of the main voltage of 3x400VAC
through the M23 connectors. Control voltage for the encoder and microprocessor
circuitry is 24VDC: In an emergency-stop situation, where an approved relay has
cut-off the main power, encoder position and other values are maintained by
this control voltage.
Furthermore highly
effective switching technology is used to ensure low heat generation resulting
in appreciable energy savings.
Other Advantages
One of the big
advantages of using the integrated MAC motor®s is that you don't
need to install a separate servo driver or controller in a control cabinet.
This gives you many subsequent advantages: Space savings in your control
cabinet, saving of expensive motor and encoder cables, saving time (and money)
for cabling, noise is minimized due to internal cabling and also installation
errors between driver and motor are eliminated.
In addition,
service is much easier, since the motor and controller can be replaced as a
single integrated unit. Hence downtime is minimized and production is
maximized.
About JVL- JVL is recognized as a world leader
for its development of efficient and compact integrated motors for VAC and VDC.
MAC motor series of integrated VAC servo motors (up to 4500W and 13,5kW peak),
and the QuickStep integrated stepper motors (up to 25Nm). Both the servomotor and
stepper motor series includes the controller, PLC, encoder, power supply and
bussystem integrated into one compact unit. All industrial Ethernet protocols
like Profinet, EtherCAT, Ethernet / IP, Modbus TCP, Powerlink, Sercos III etc.
are available. Furthermore, traditional modules likeCANopen, DeviceNet, Profibus, Nano PLC,
RS232/RS485/USB, Process Control can be incorporated.
JVL has more than 25 years of motion control experience and enjoys a
reputation for the development of highly specialized integrated motors with
industrial Ethernet and customized improvements. They work together with their
customers and representatives to find an economic, yet technically advanced
solution to complicated control applications.
JVL's wide selection of quality products for motion control components include: Integrated VAC and VDC Servo motors, Integrated Stepper motors, VAC Servo motor controllers, Motor drivers (Stepper, VAC and VDC), Brakes, Gears, and HMI Modules.
For further
information, please contact:
JVL Industri Elektronik A/S, Bregnerødvej 127 42,
DK-3460 Birkerød, Denmark, Tel. +45 4582 4440, E-mail: jvlnyt@jvl.dk, Web: www.jvl.dk
Download picture
in high resolution

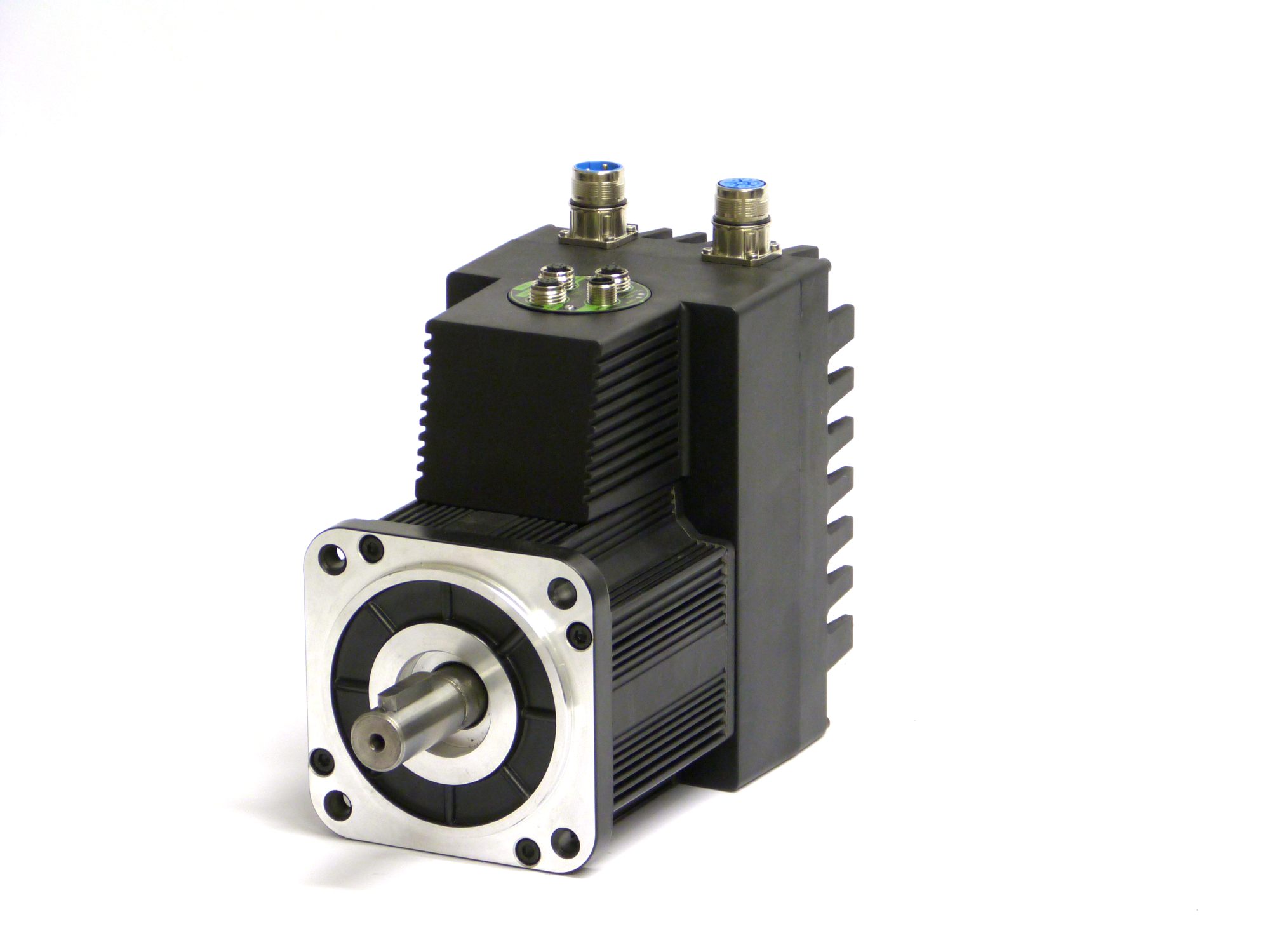

MAC1500
