Stepper Motor Controller SMC85 PCB version
|
Stepper motor controller 0-9Amp RMS, PLC build in with 8IOA and RS422. Optional Profinet, EtherCAT, EthernetIP, Powerlink, MOSBUS TCP, Bluetooth, WLAN, Zigbii, SSI or CANopen.
A Stepper Motor Controller with RS485 and CANbus serial interface, also including 6 different Industrial Ethernet protocols. 8IO can be configured to input, output or analog input. Can be controlled via nanoPLC and MacTalk. The very compact, 78.4x86.2mm, PCB contains everything needed to solve a modern control task as stand-alone or controlled from a PLC or PC. MODBUS RTU and CANopen gives the possibility for easy connection to a PLC. For PC or IPC an ActiveX/OCX driver is available so that interface to LABview, Excel, VB or other Windows-programs is simple.
 |
|
 |
 |
 |
 |
  |
|||||

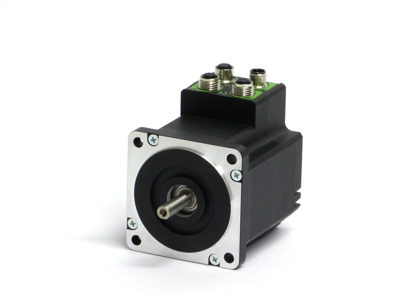

The PCB can be mountet in an instrument or be mounted directly on the back of the motor. Alternatively it can be delivered in a box with cables out or with M12 connectors. The box can be mounted on a buttom plate or on DIN rail. Click here to read more about MIS34x integrated stepper motor solutions.
| Partnumber | Current Amp RMS |
Application | Connectorboard/ wires with M12 connectors |
Bus communication | Photo |

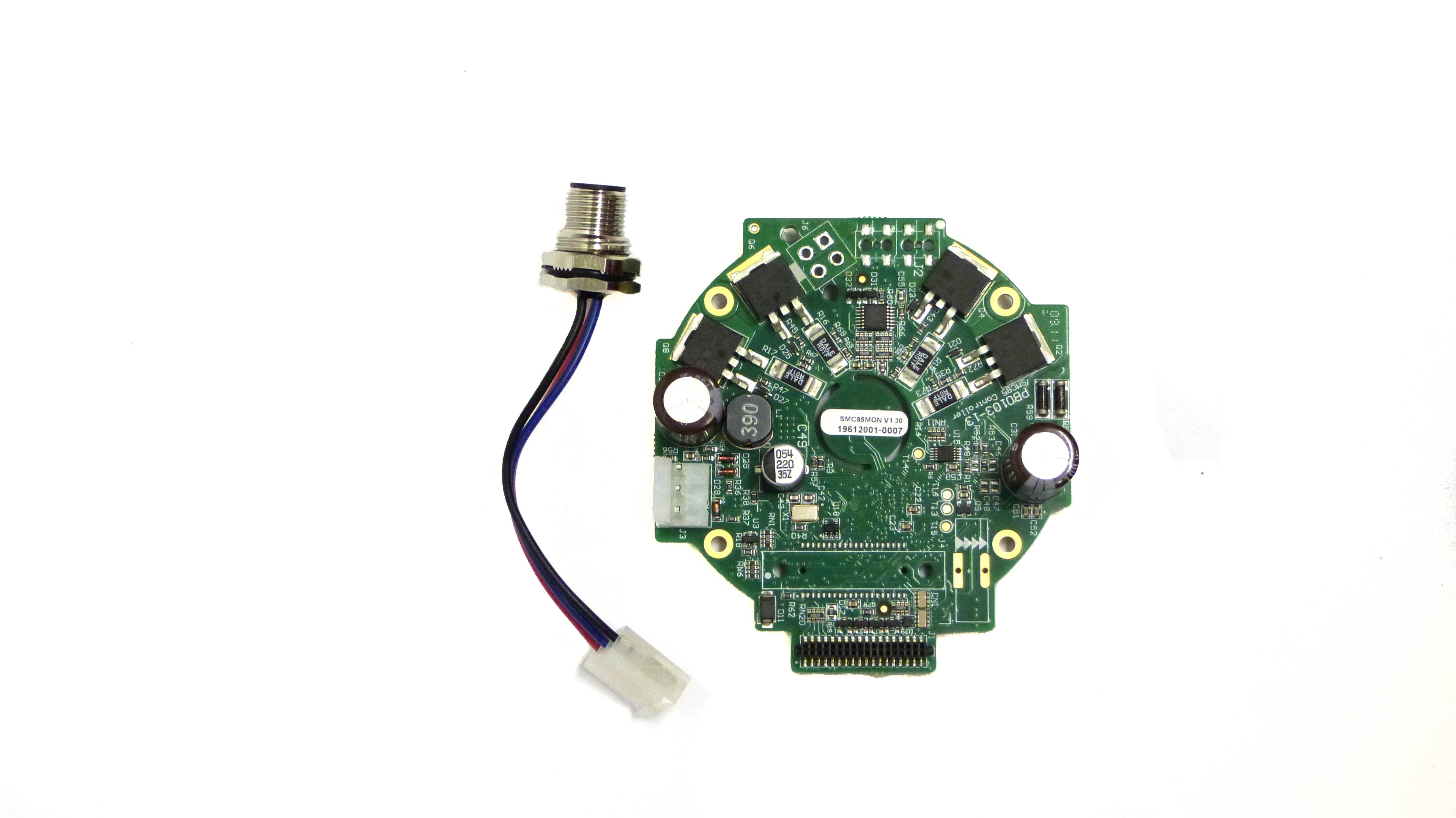

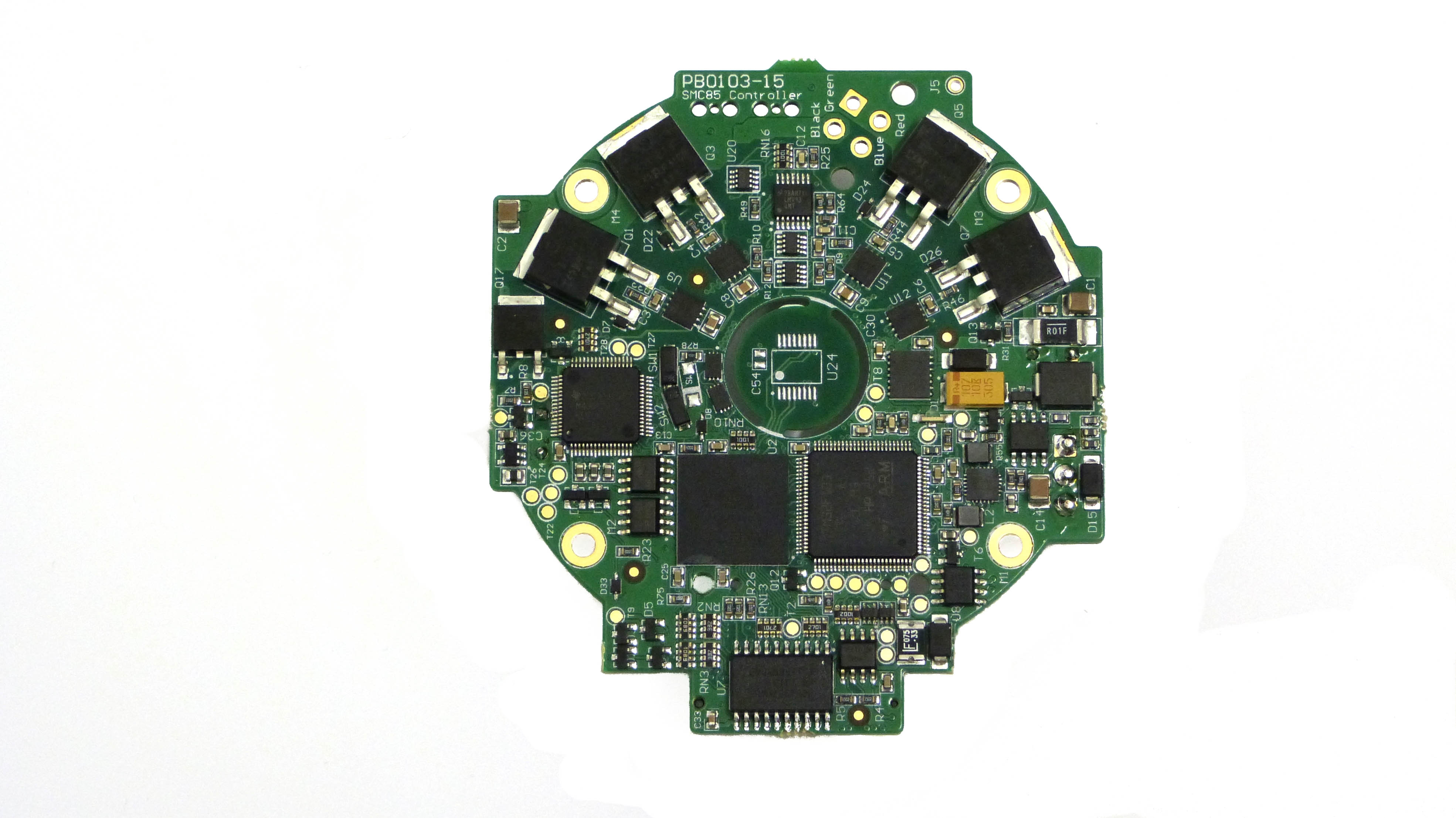

| SMC85C1-AAAABX |
0-9Amp |
PLC,Pulse/dir for own housing and connection |
No |
RS485 in / out |
|

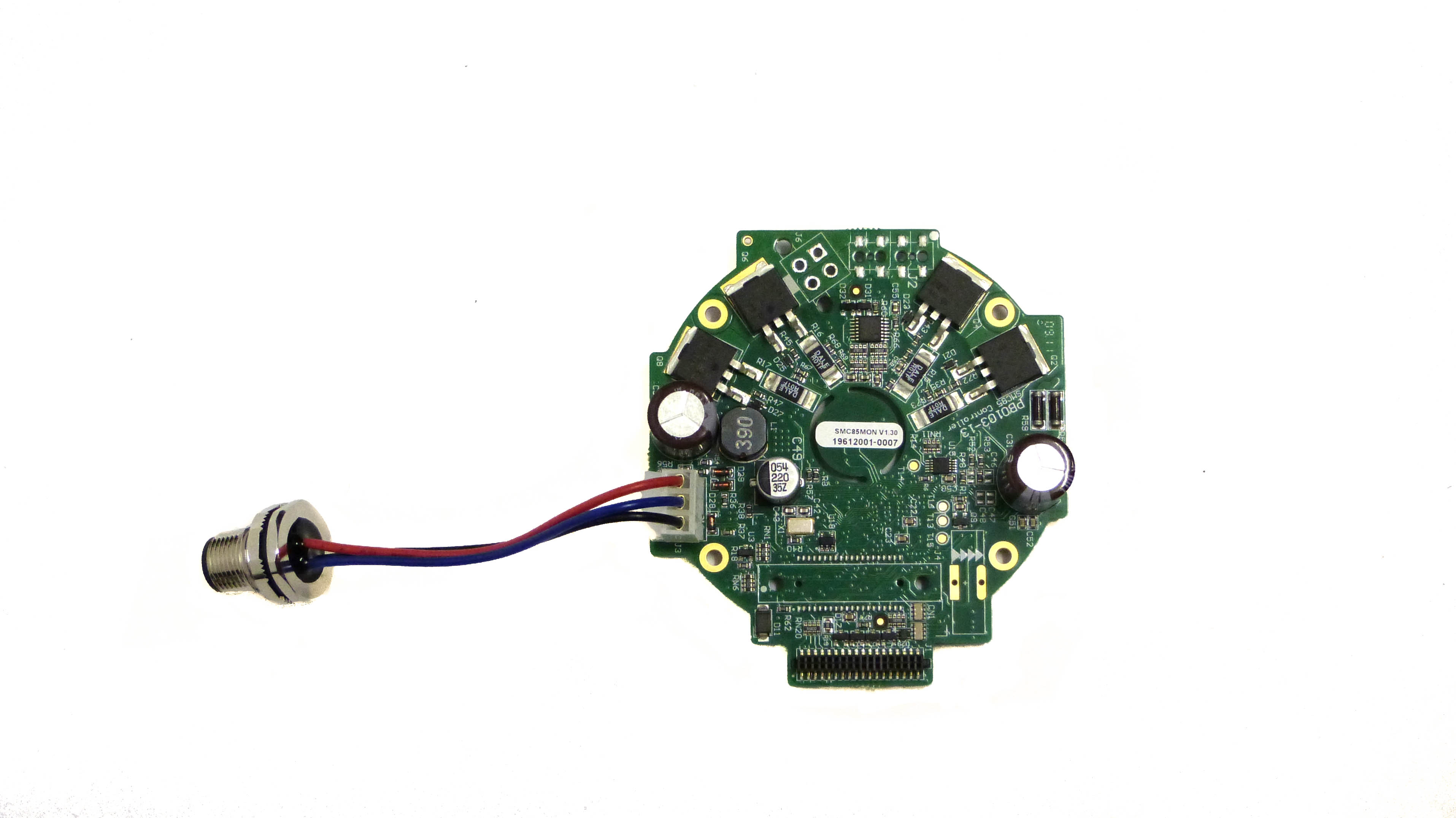

| SMC85C1-AAH2BX |
0-9Amp |
PLC,Pulse/dir with stall detect for own housing and connection |
No |
RS485 in / out |

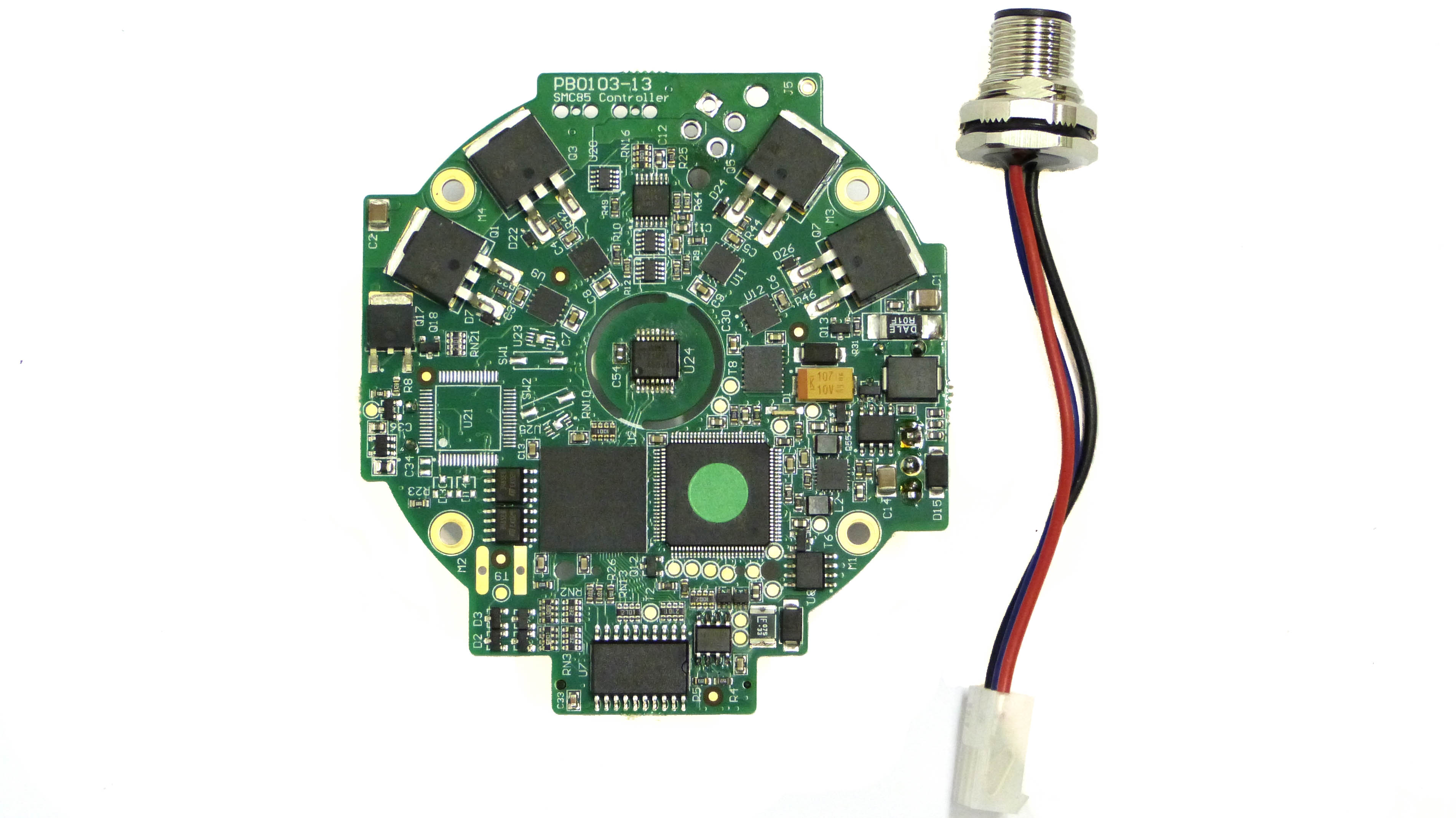

Front
|
| SMC85C1-ACAABX |
0-9Amp |
PLC and CANopen for own housing and connection |
No |
CAN in/ out |
|

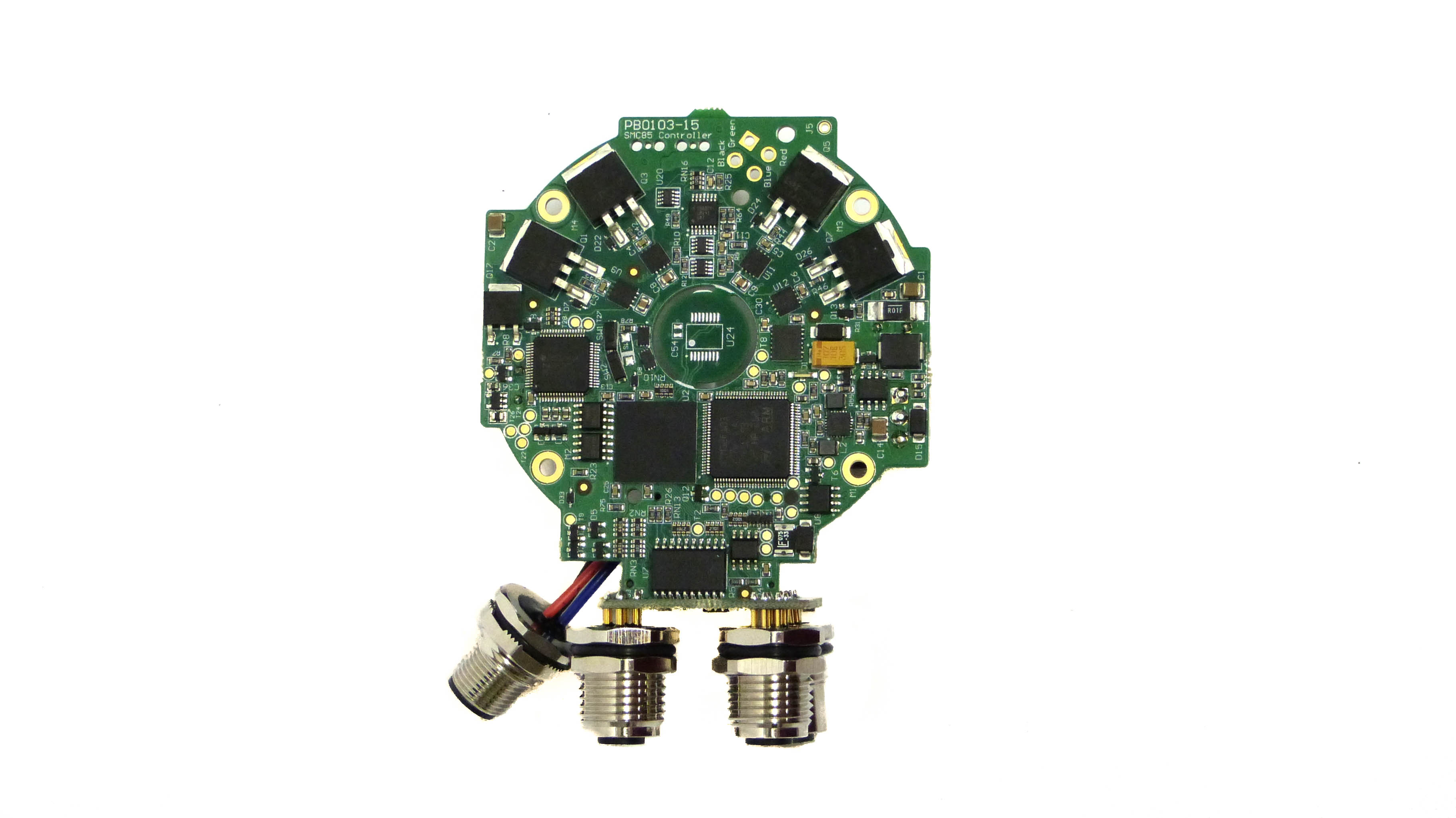

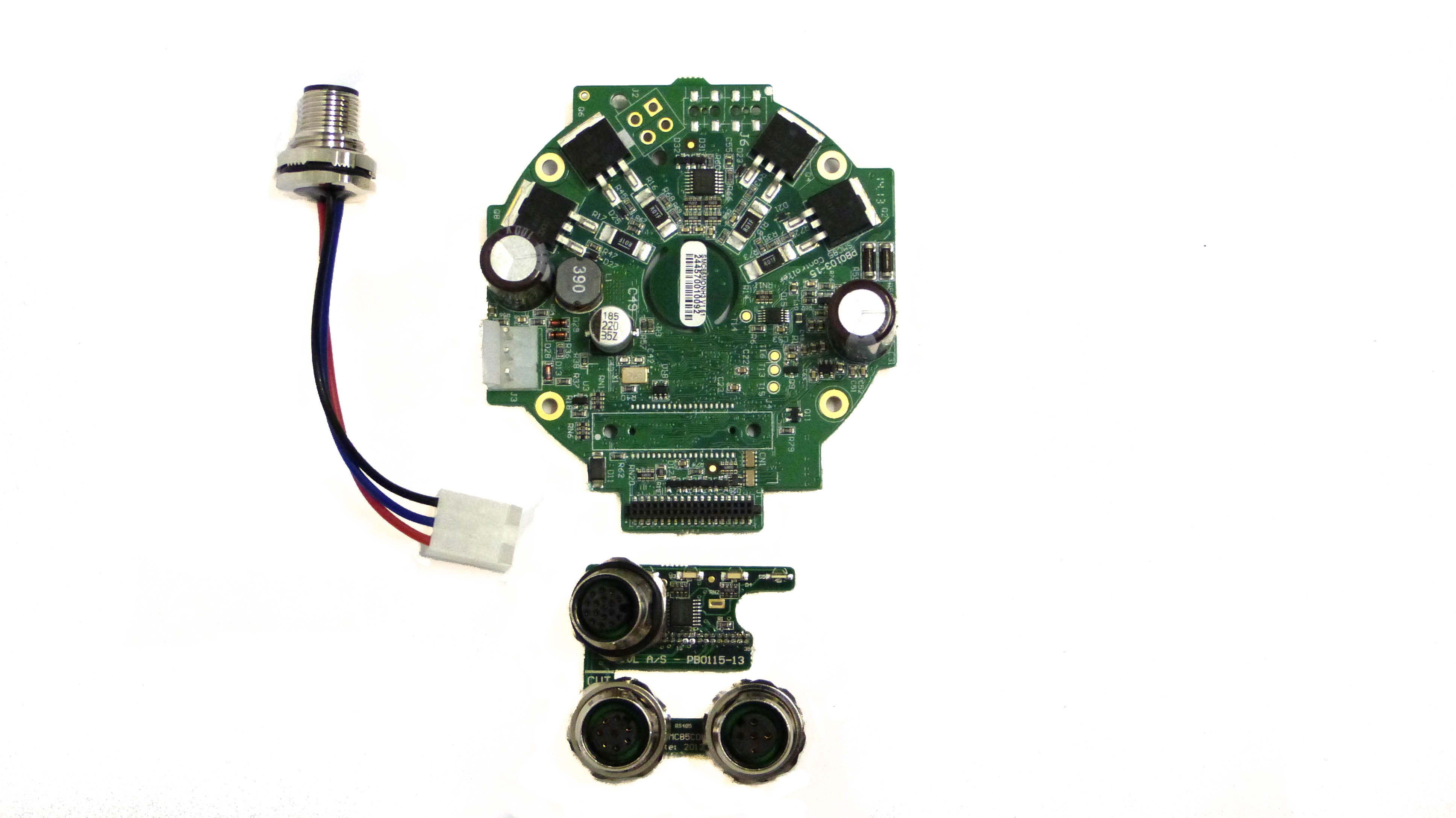

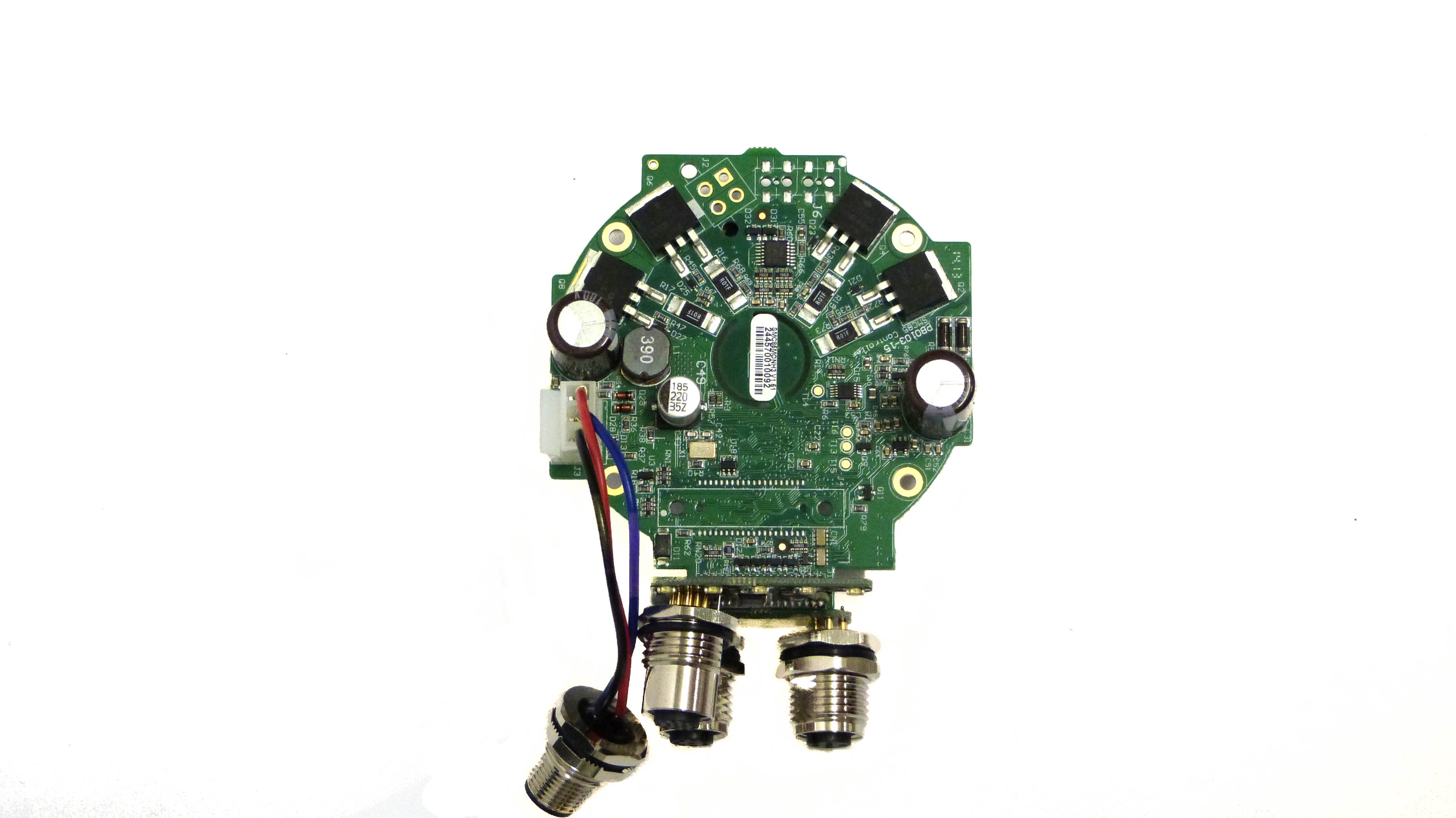

| SMC85C1-Q5AABX |
0-9Amp |
PLC,Pulse/dir for own housing but with M12 connectorboard |
Yes |
RS485 in / out |
Front |

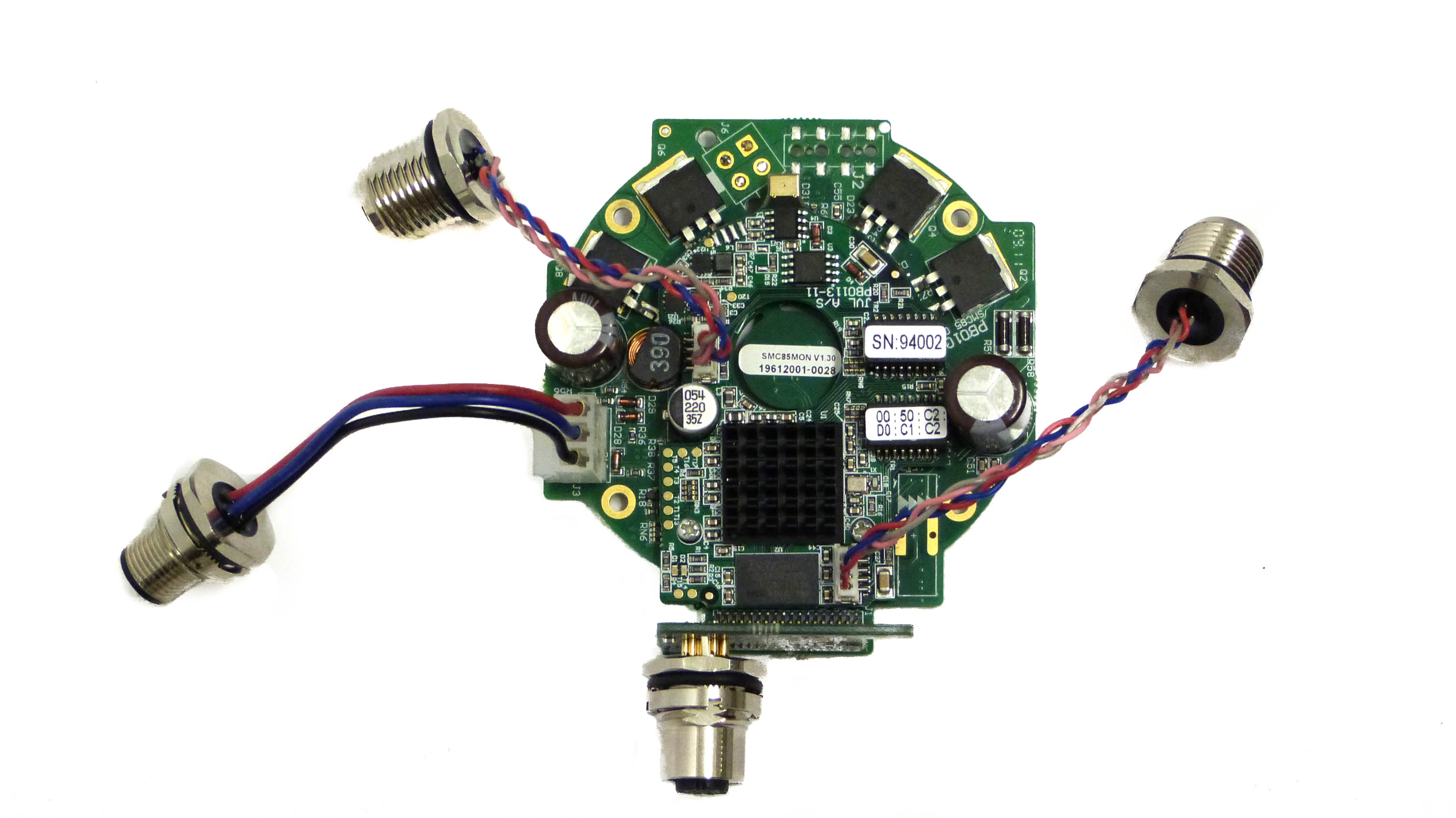

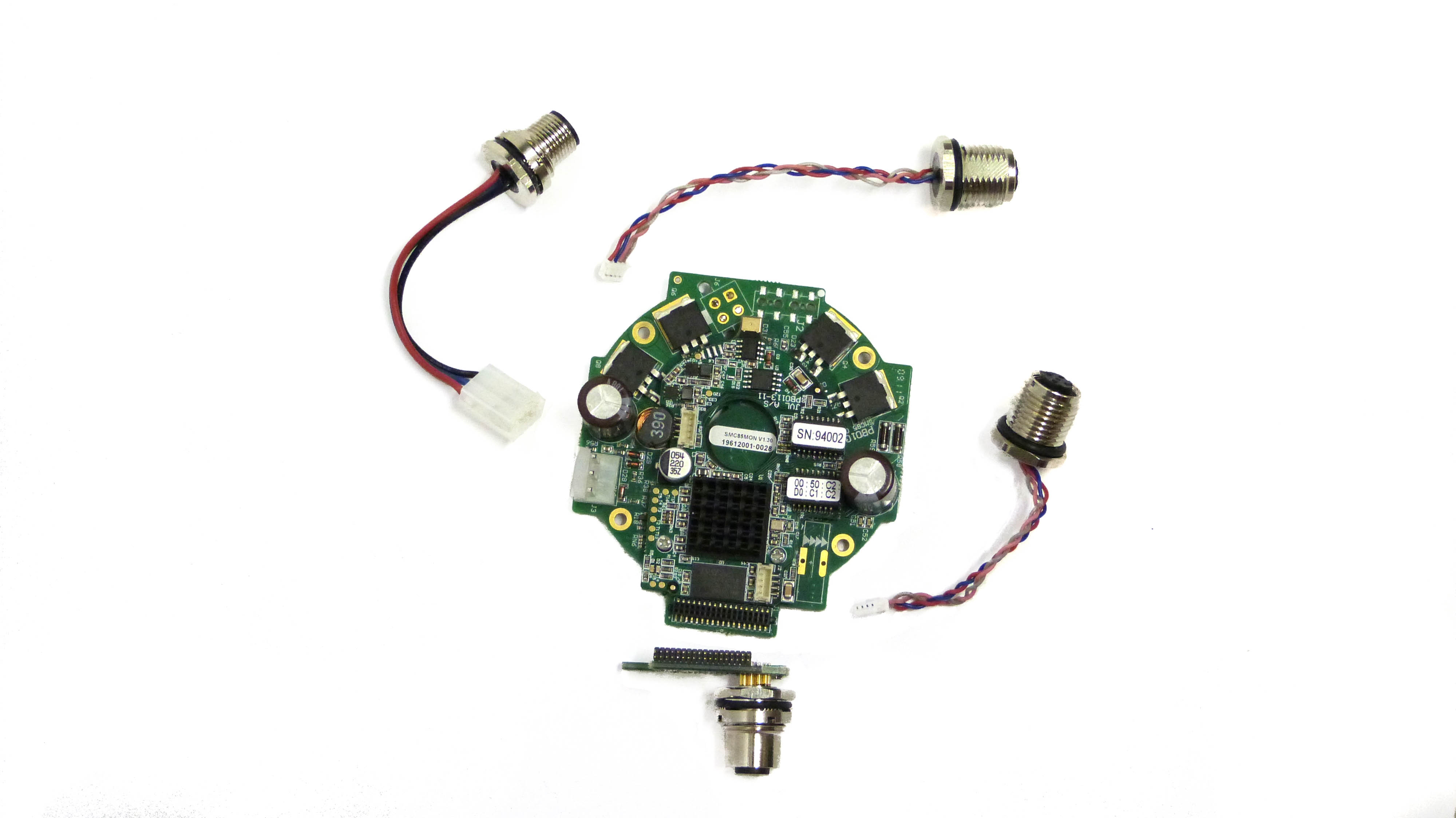

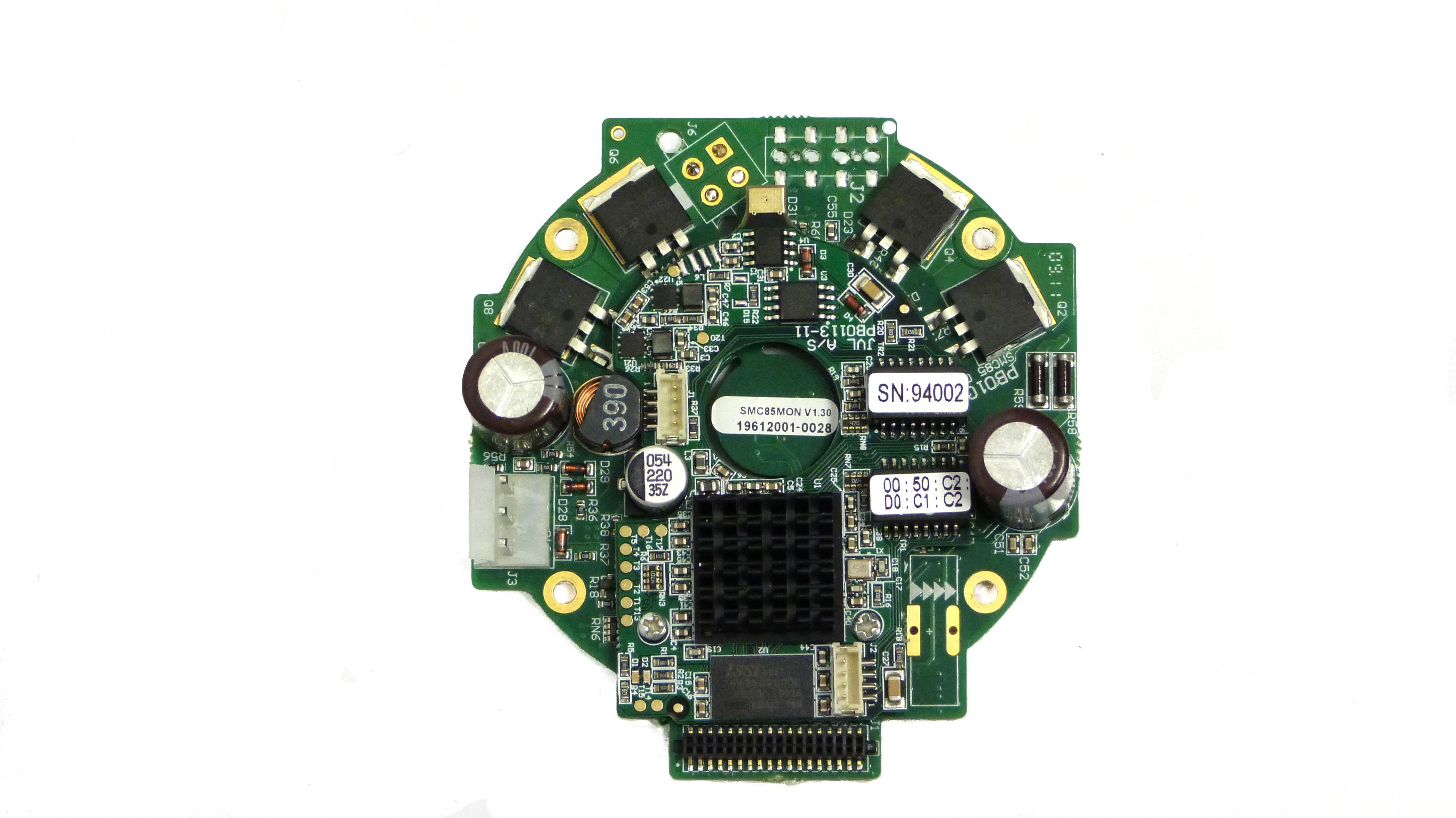

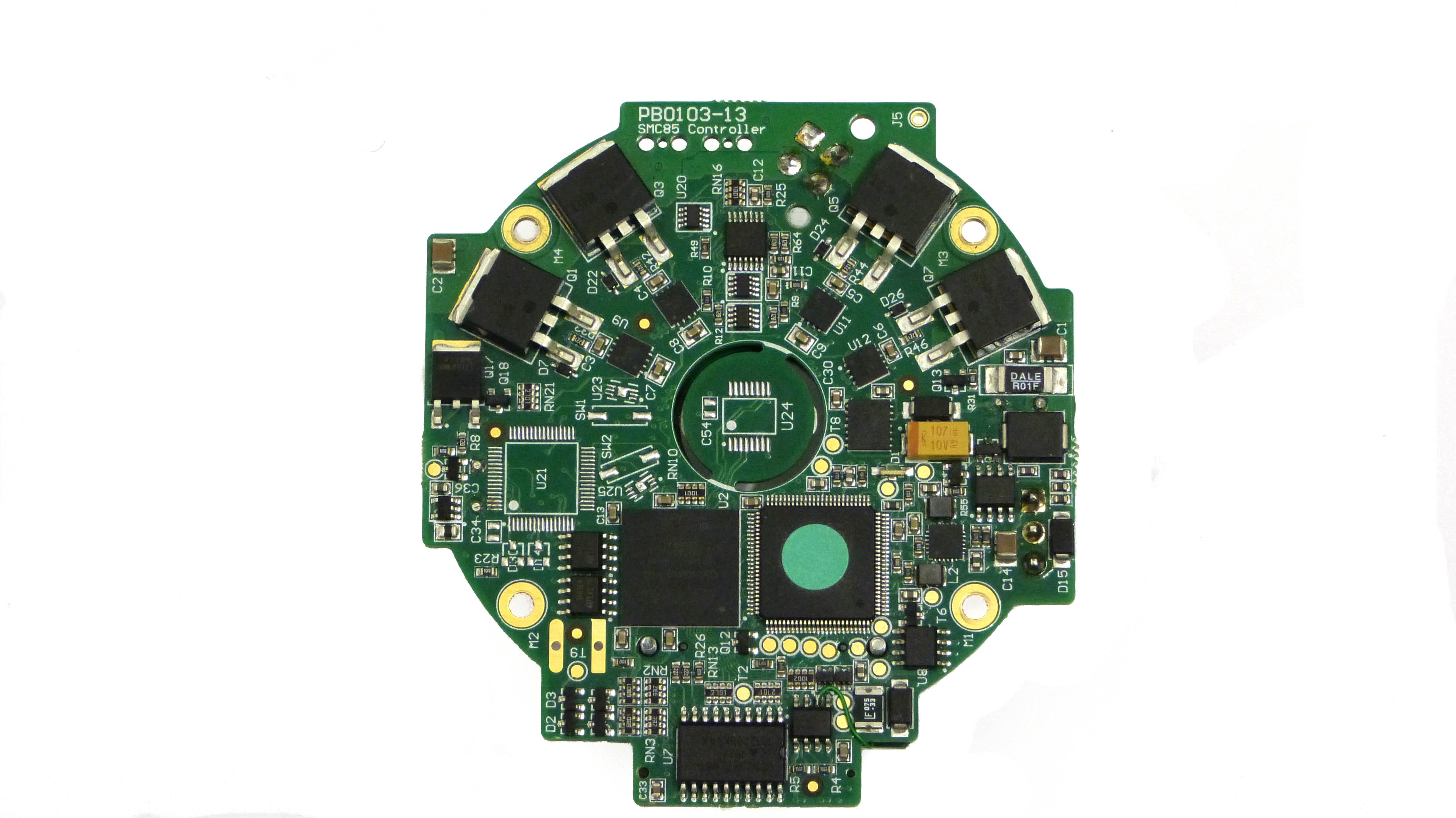

| SMC85C1-ECAABX* |
0-9Amp |
Ethernet and PLC for own connectorboard but with M12 connectorboard |
Yes |
EtherCAT in/out |
RS485 and SSI for absolute multiturn encoder are available on all models.
* Profinet, Ethernet IP, Ethercat, Powerlink, MODBUS TCP, also available
|
